51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Partially unclip door trim panel (1) in area of rear view mirror with special tool 00 9 317 .

Secure door trim panel (1) with suitable tool (2).

Partially loosen COVER FOR DOOR WINDOW FRAME  (3).

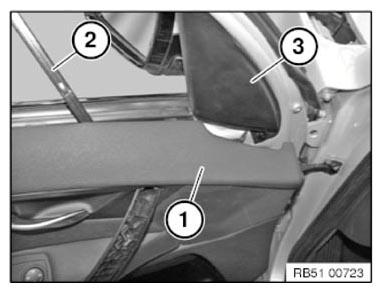

Fig 1: Securing Door Trim Panel Using Suitable Tool
G09839034Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Secure exterior mirror against falling.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 51 16 1AZ .

Replacement:

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Tightening torque 51 16 1AZ .

Fig 2: Identifying Plug Connection With Mounting Screws
G06202438Courtesy of BMW OF NORTH AMERICA, INC.

Remove mirror (1) outwards.

Installation note:

Run a function check.

Fig 3: Removing Mirror Outwards
G04752500Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sound insulation (1) must not be damaged.

Fig 4: Identifying Sound Insulation
G04791484Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
