33 32 195 Replacing rubber mount for camber arm in rear axle support

Special tools required:

• 33 4 450
• 33 4 451
• 33 4 452
• 33 4 455
• 33 4 456
• 33 4 461
• 33 4 462
• 33 4 463
• 33 4 464
• 33 4 465
• 33 4 466

Necessary preliminary tasks

• Remove COIL SPRING .
• Remove CAMBER ARM FROM REAR AXLE SUPPORT .

Removing rubber mount

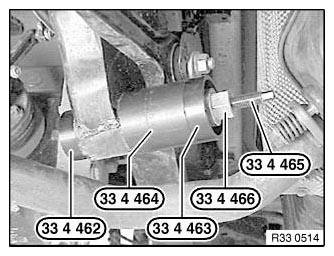

Pull out and remove rubber mount with special tools 33 4 462 , 33 4 464 , 33 4 463 , 33 4 466 and 33 4 465 .

Fig 1: Removing Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount

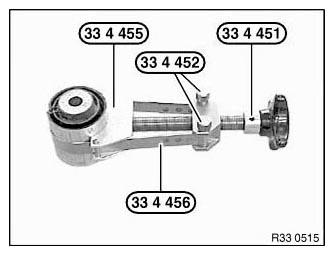

Pull together rubber mount with special tools 33 4 455 , 33 4 456 , 33 4 452 and 33 4 451 .

Fig 2: Pulling Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

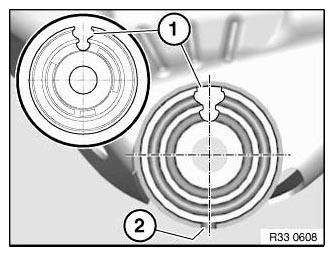

Draw rubber mount into rear axle support so that slot (1), rubber mount center point and notch (2) form a line.

Fig 3: Identifying Rear Axle Support Slot And Notch

Courtesy of BMW OF NORTH AMERICA, INC.

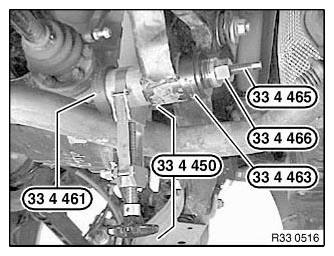

Draw rubber mount into rear axle support as far as possible using special tools 33 4 461 , 33 4 463 , 33 4 466 and 33 4 465 .

Remove special tool 33 4 450 and draw in rubber mount as far as it will go.

Fig 4: Removing Rubber Mount Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Perform wheel/chassis alignment check  . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
