33 32 190 Removing and installing/replacing left or right camber arm

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.

NOTE: If the camber arm is detached from the rear axle carrier/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Necessary preliminary tasks

Remove COIL SPRING AT REAR .
Remove RUBBER MOUNT FOR SHOCK ABSORBER MOUNTING ON CAMBER ARM .
Remove jointed rod of ride-height sensor from camber arm bracket.

Support wheel carrier with workshop jack.

Mark position of eccentric screw (1) to camber arm.

Replacement only: Carry over marking from old part to new part.

Release nut (2) and remove bolt towards rear.

Tightening torque 33 32 10AZ .

Installation:

Note insertion direction of screw.

Replace self-locking nut.

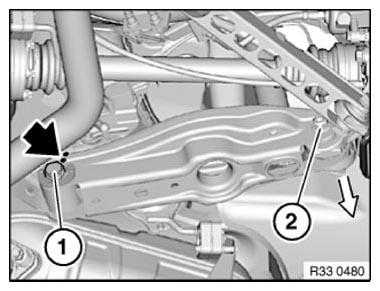

Fig 1: Locating Camber Arm Screw And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove exhaust system bracket from rear axle carrier.

If necessary, remove rear muffler from body.

Release nut (1) and remove eccentric washer (2).

Tightening torque 33 32 9AZ .

Pull out eccentric screw and remove camber arm (3).

Installation:

Note insertion direction of eccentric screw.

Align eccentric screw by means of marking to camber arm.

Fit eccentric washer (2).

Replace nut (1).

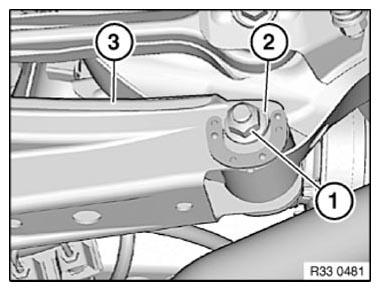

Fig 2: Identifying Eccentric Washer Components

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Replace lower spring pad (refer to REMOVING AND INSTALLING/REPLACING COIL SPRING ).

Version with xenon lights:

Release screw (1) and remove bracket (2).

Tightening torque 37 14 4AZ .

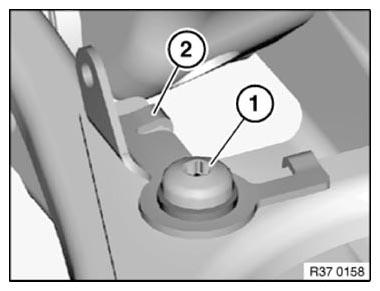

Fig 3: Identifying Bracket And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
