51 11 050 Removing and installing/replacing support for front bumper panel

Necessary preliminary tasks:

NOTE: Description is shown on the E82 by way of example. There may be differences in detail in the case of other models.

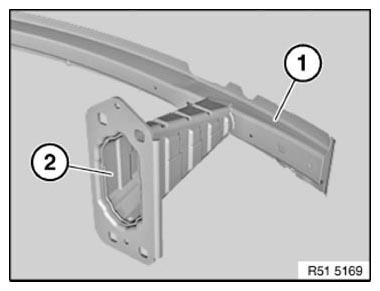

IMPORTANT: During replacement, all the cavities of the support (1) and the crashbox (2) must be sealed with CAVITY SEALING .

Fig 1: Identifying Cavities Support And Crashbox

Courtesy of BMW OF NORTH AMERICA, INC.

Version with brake compensating air guide:

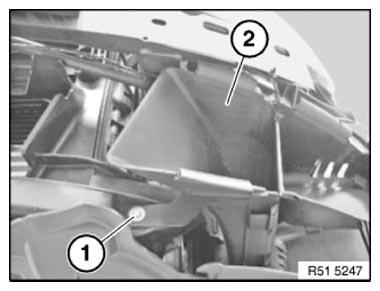

Loosen the screw (1) on the cooling air routing (2) left/right.

Remove the cooling air routing (2).

NOTE: The work scope ends here:
"Remove and install compensating air guide".

Fig 2: Identifying Cooling Air Routing And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on version:

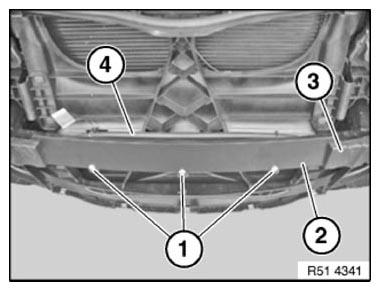

Release screws (1) on support (2).

Remove left/right impact absorber (3).

Release washer fluid hose (4) from support (2).

Fig 3: Identifying Screws On Support And Washer Fluid Hose

Courtesy of BMW OF NORTH AMERICA, INC.

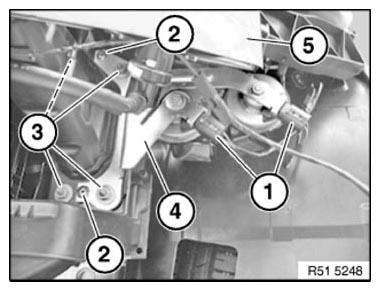

If necessary, disconnect plug connections (1) from fanfare.

Loosen blind rivet (2) on left/right.

Release nuts (3) on left/right.

Tightening torque 51 11 2AZ .

Remove fanfare with holder (4).

Remove carrier (5).

Installation note:

Blind rivets (2) are only required for assembly at the plant and do not need to be reinstalled.

Fig 4: Identifying Plug Connections, Blind Rivet And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
