51 11 055 Removing and installing/replacing support for front bottom bumper panel
Necessary preliminary work:
- Remove front bumper panel . See 51 11 156 REMOVING AND INSTALLING (REPLACING) THE FRONT BUMPER PANEL (M TECHNIC/M COUPE) or 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL

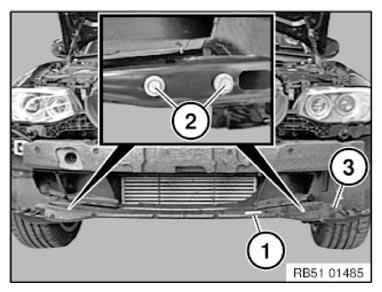

Remove impact absorber (1).
Mark top side on support (3).
Release screws (2) and remove support (3).
Tightening torque 51 11 5AZ .
Installation note:
Install support (3) with marked side towards top.
