51 45 030 Removing and installing instrument panel trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Observe the following instructions to facilitate removal of the instrument panel trim:

Move seats back completely and lower
Open convertible top

Necessary preliminary tasks:

Remove Center Console . See 51 16 200 Removing And Installing Storage Tray .
Remove trim for roof pillar, front left and right. See 51 43 201 Removing And Installing Or Replacing Trim For Front Left Or Right Roof Pillar .
Remove finisher on panel for instrument panel, right . See 51 16 222 Replacing Finisher On Right Instrument Panel Trim .
Remove control panel for heater - A/C system . See 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM .
If necessary, remove Central Information Display . See 65 50 055 REMOVING AND INSTALLING/REPLACING CENTRAL INFORMATION DISPLAY .
Remove fixture for steering column stalks . See 61 31 005 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN STALK .
Remove instrument cluster . See 62 11 280 REMOVING AND INSTALLING (REPLACING) INSTRUMENT CLUSTER .
Remove light switch unit . See 61 31 033 REMOVING AND INSTALLING/REPLACING LIGHT SWITCH UNIT .
Remove footwell side trim panel on A-pillar, left . See 51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Left .
Remove airbag module for driver's knee protection . See KNEE AIR BAG MODULES .
Remove footwell side trim panel on A-pillar, right . See 51 43 075 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Right .
Remove airbag module on passenger side . See PASSENGER-SIDE AIR BAG MODULE (PASSENGER-SIDE) .

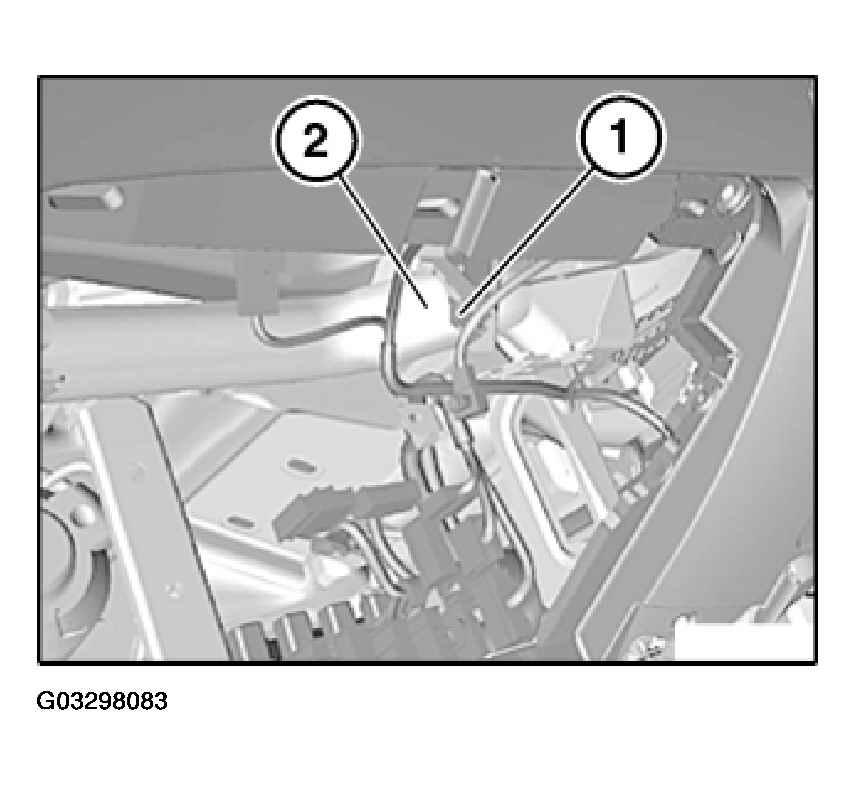

Release screw (1) on support tube (2).

Fig 1: Releasing Screw (1) On Support Tube (2) - (1 Of 2)

G03298083

Courtesy of BMW OF NORTH AMERICA, INC.

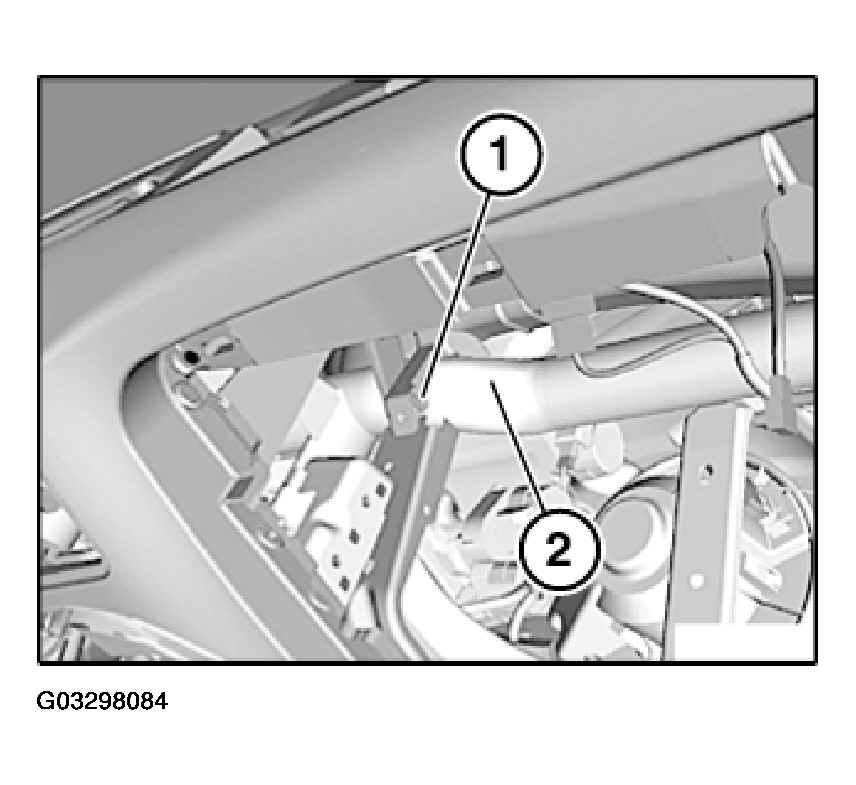

Release screw (1) on support tube (2).

Fig 2: Releasing Screw (1) On Support Tube (2) - (2 Of 2)

G03298084

Courtesy of BMW OF NORTH AMERICA, INC.

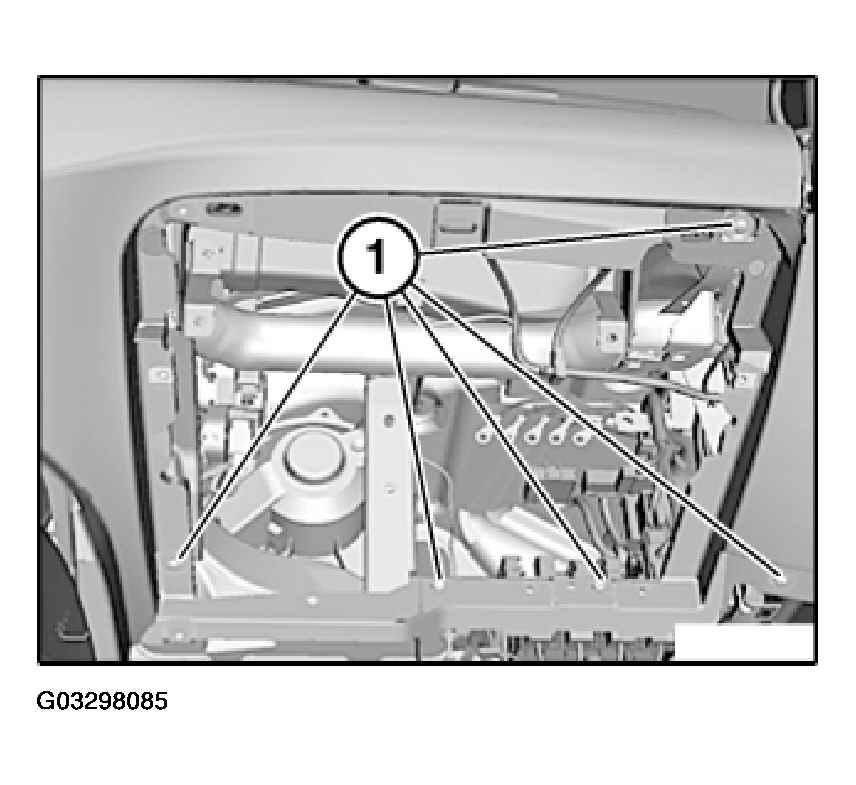

Release screws (1) in area of passenger footwell.

Fig 3: Releasing Screws (1) In Area Of Passenger Footwell

G03298085

Courtesy of BMW OF NORTH AMERICA, INC.

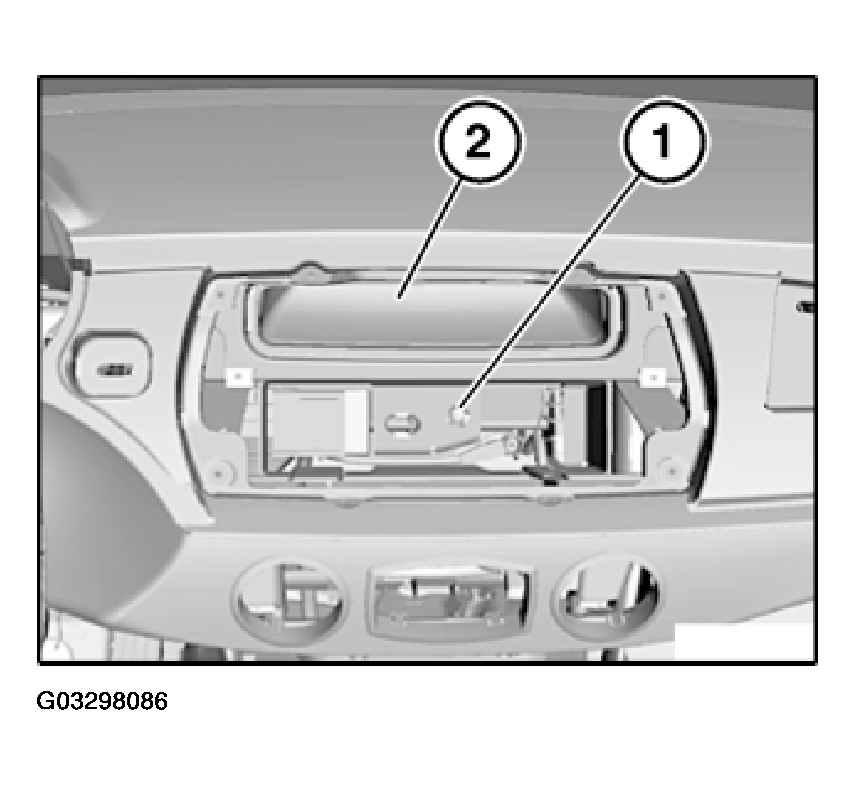

Release screw (1) in area of middle air duct (2).

Fig 4: Releasing Screw (1) In Area Of Middle Air Duct (2)

G03298086

Courtesy of BMW OF NORTH AMERICA, INC.

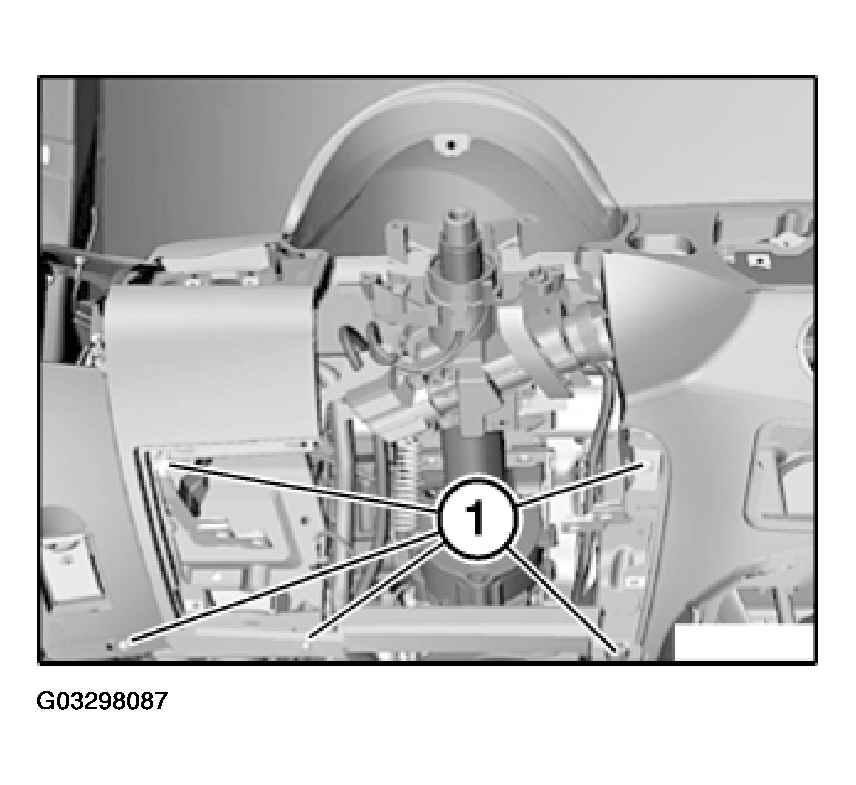

Release screws (1) in area of driver's footwell.

Fig 5: Releasing Screws (1) In Area Of Driver's Footwell

G03298087

Courtesy of BMW OF NORTH AMERICA, INC.

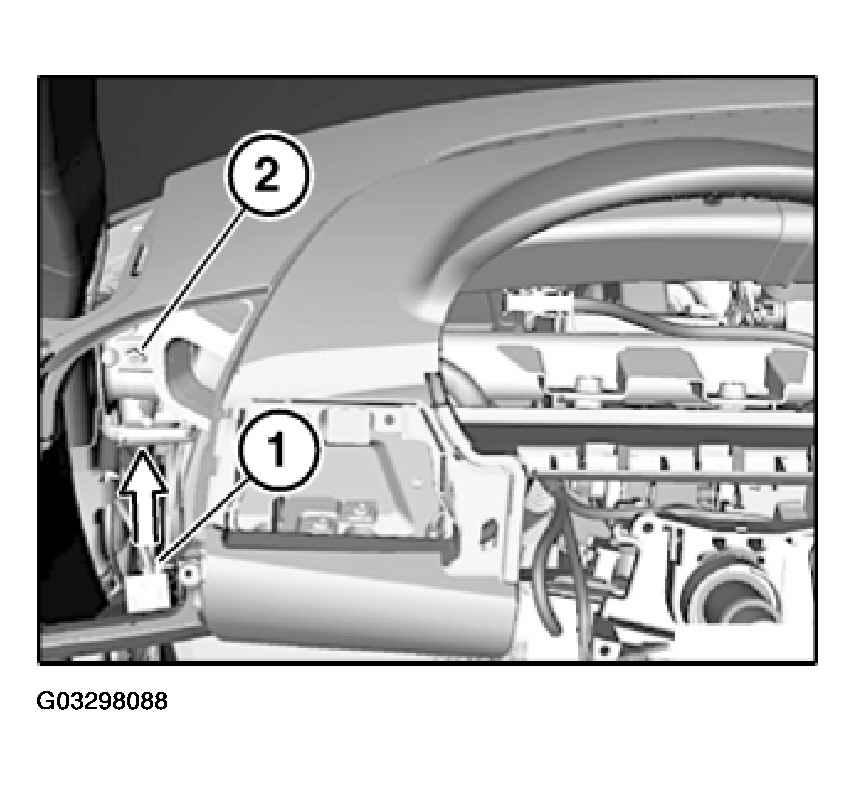

Unlock OBD socket connector (1) and unclip in direction of arrow.

Release nut (2) in area of left air duct.

Fig 6: Releasing Nut In Area Of Left Air Duct

G03298088

Courtesy of BMW OF NORTH AMERICA, INC.

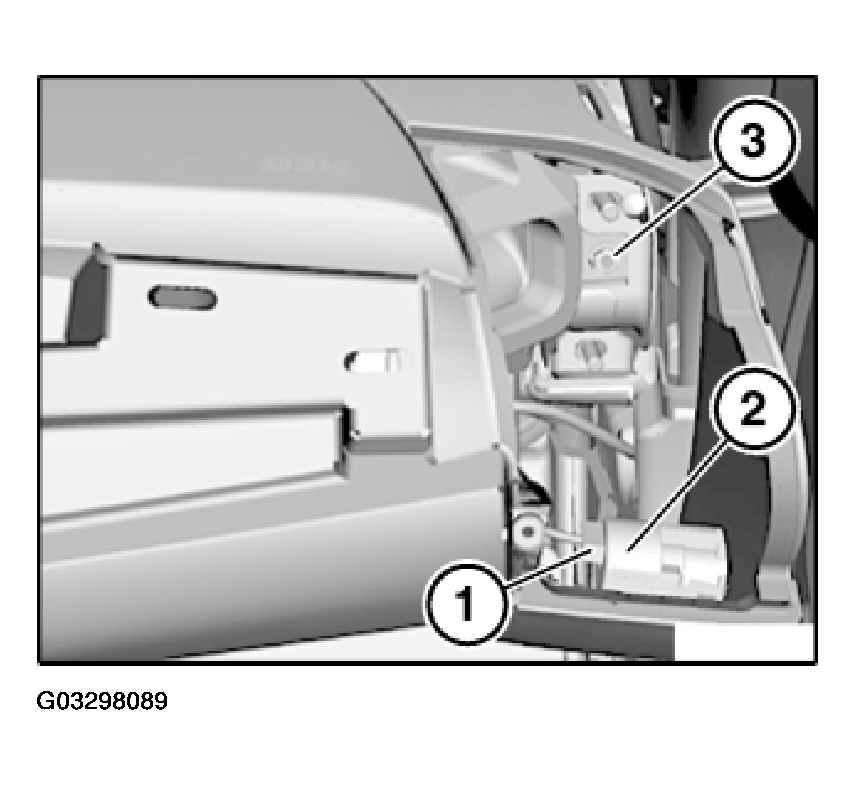

Disconnect plug connection (1) on passenger airbag switch (2).

Release nut (3) in area of right air duct.

Fig 7: Releasing Nut (3) In Area Of Right Air Duct

G03298089

Courtesy of BMW OF NORTH AMERICA, INC.

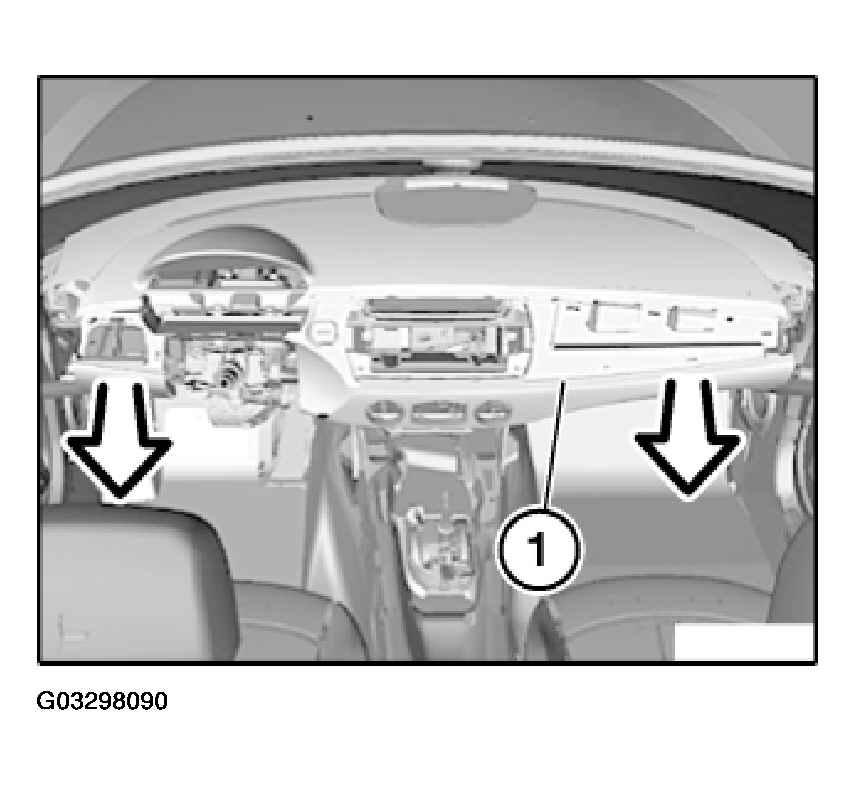

Pull back trim for instrument panel (1) and remove.

Fig 8: Pulling Back Trim For Instrument Panel (1)

G03298090

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

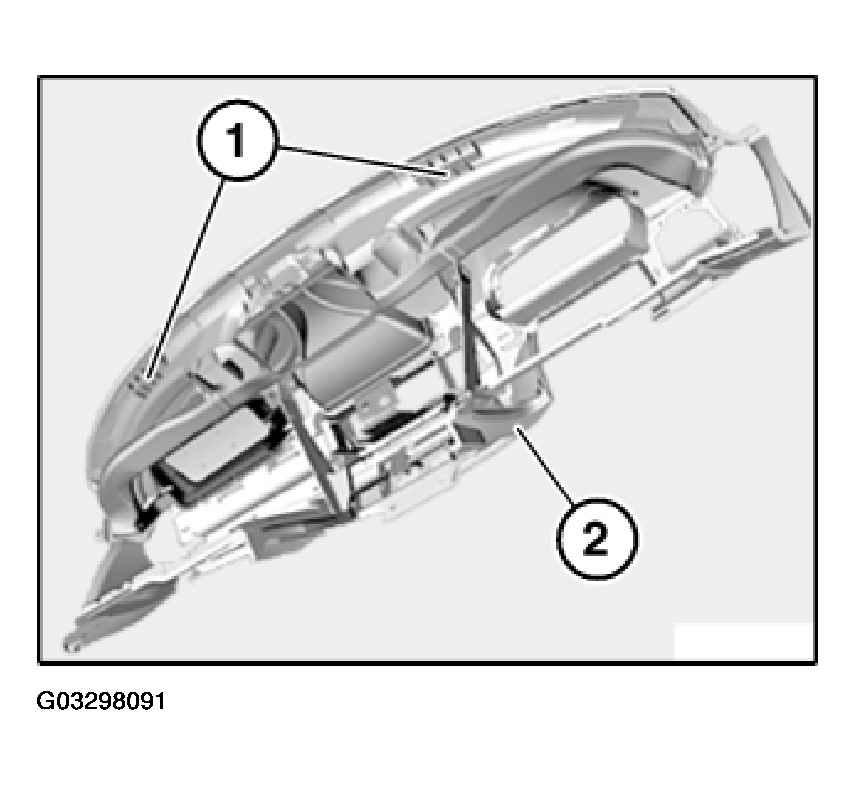

Make sure guides (1) of instrument panel trim (2) are correctly seated in mountings.

Fig 9: Making Sure Guides (1) Of Instrument Panel Trim (2) Are Correctly Seated In Mountings

G03298091

Courtesy of BMW OF NORTH AMERICA, INC.
