64 11 377 Removing And Installing (Replacing) Control Panel For Heater - A/C System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove radio receiver. Refer to 51 45... REMOVING AND INSTALLING/REPLACING RADIO CUTOUT TRIM and 65 11 080 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER .

Lever out cover (1) with special tool 00 9 317 and remove.

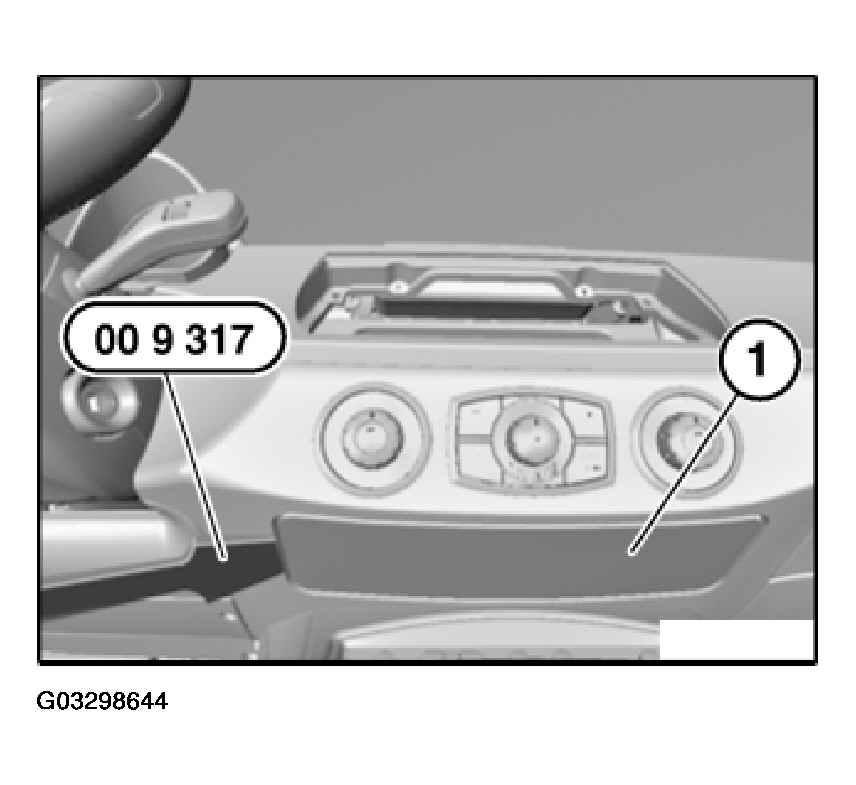

Fig 1: Removing Cover

G03298644

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure cover (1) is correctly seated.

Unlock plug connections (1) and disconnect.

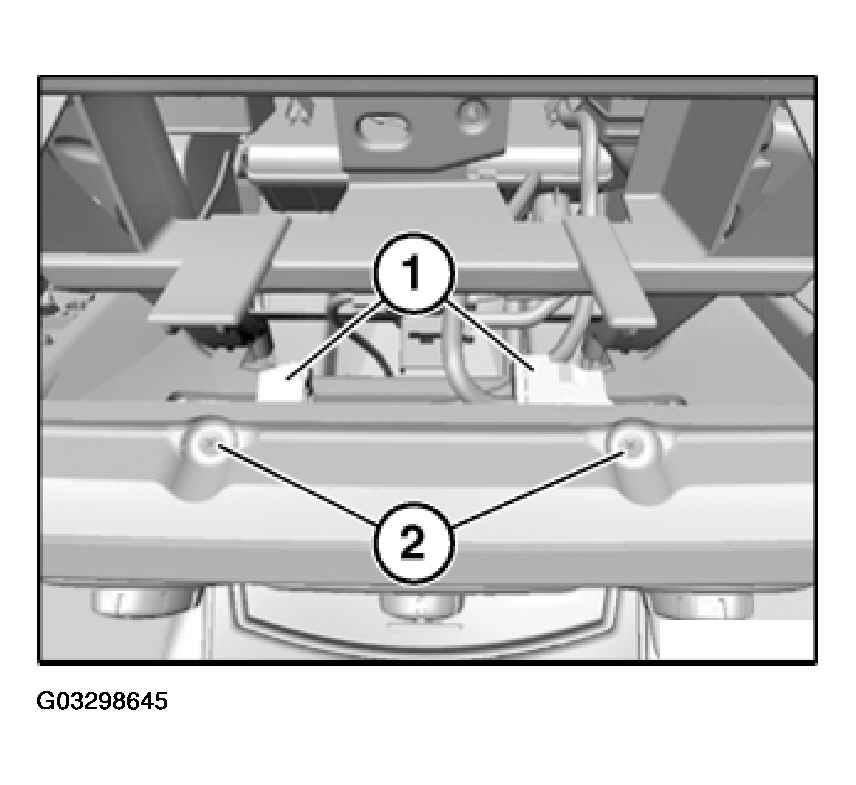

Fig 2: Disconnecting Connections

G03298645

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

IMPORTANT: To avoid scratches:

Cover center console with a protective cover (1).
Remove heater - A/C system control panel (2) carefully through opening (B).

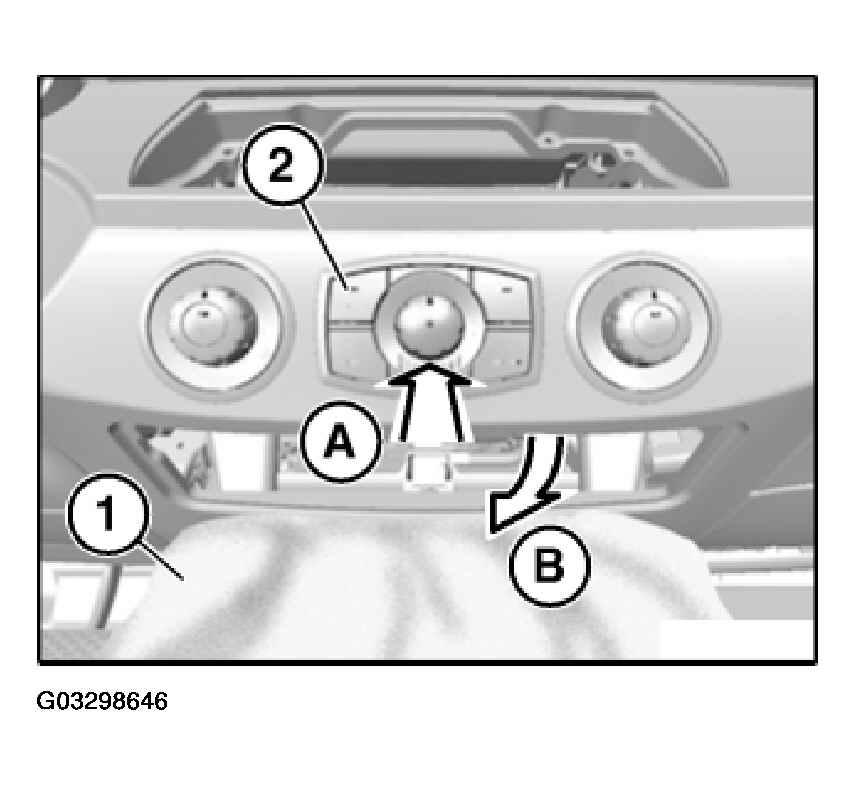

Fig 3: Removing Heater - A/C System Control Panel

G03298646

Courtesy of BMW OF NORTH AMERICA, INC.

Press out heater - A/C system control panel (2) in direction of arrow (A) and remove through opening (B).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

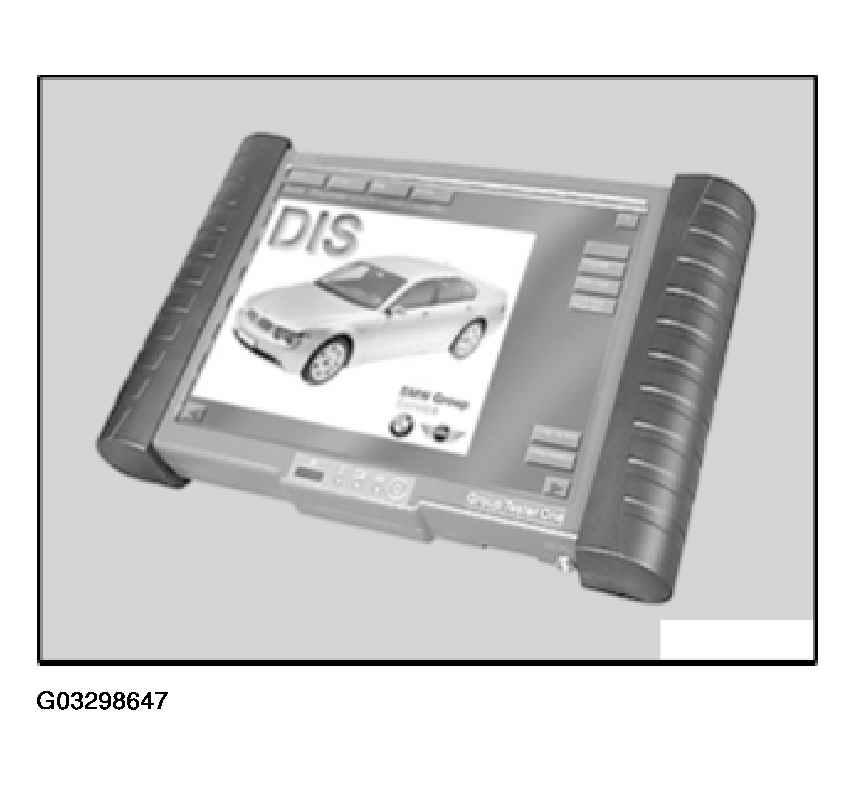

Fig 4: Identifying DIS
Courtesy of BMW OF NORTH AMERICA, INC.
