51 16 222 Replacing finisher on right instrument panel trim

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Necessary preliminary tasks:

Remove right fresh-air grill . See 64 22 135 REMOVING AND INSTALLING/REPLACING FRESH AIR GRILLE .
Version with radio:
Remove radio receiver . See 65 11 080 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER .
Version without radio:

Remove Radio Cutout Trim .

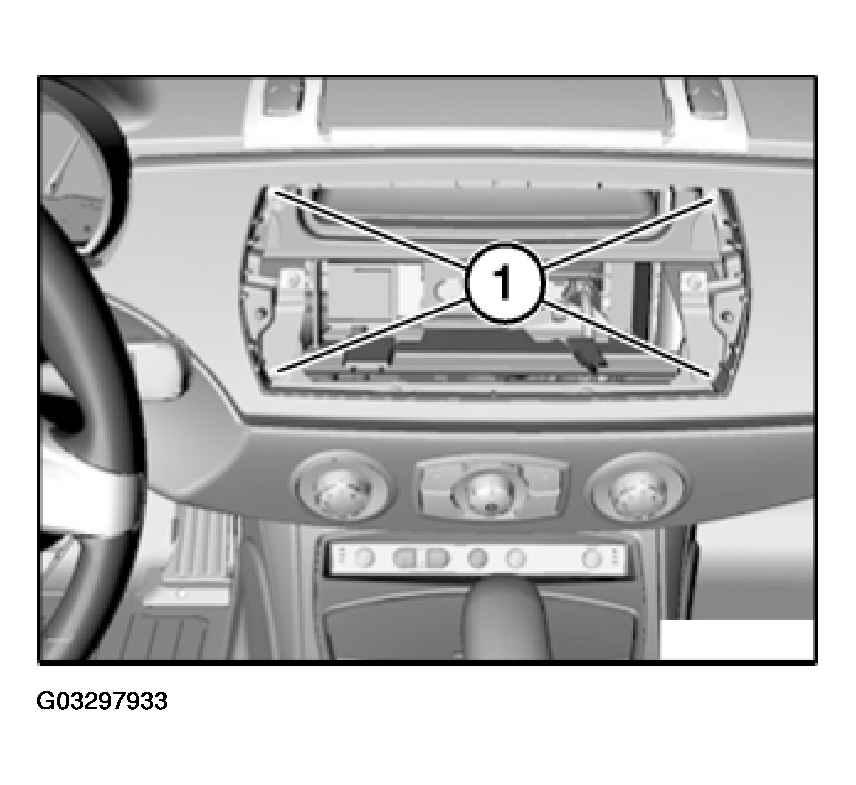

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

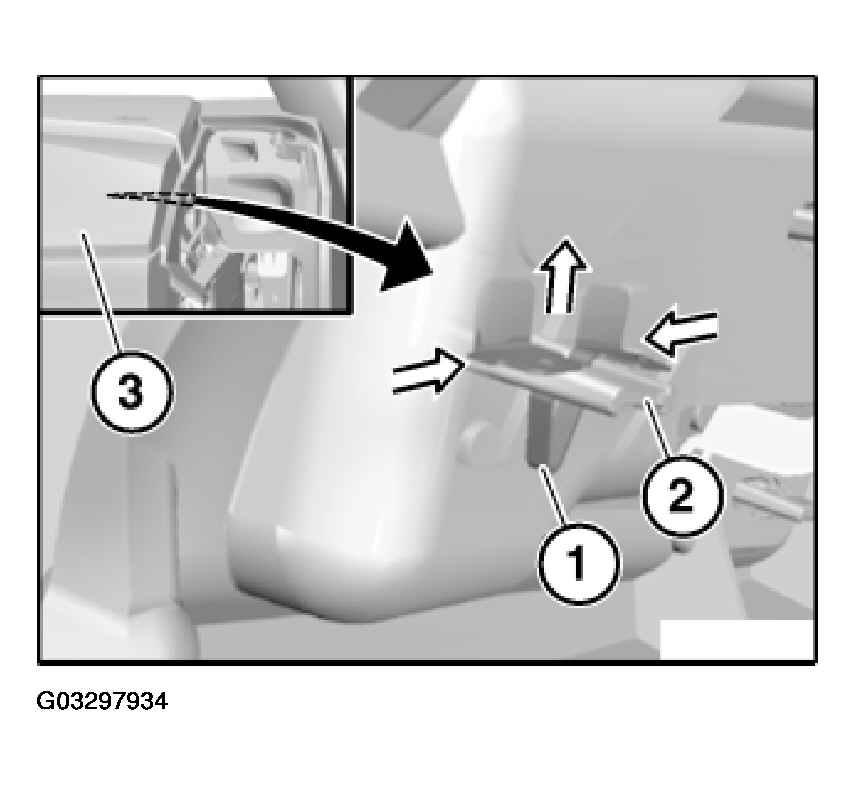

Finisher on right instrument panel trim (3) is secured in outer front passenger area with a retaining clip (1) and if necessary with additional shims.

Press retaining clip (1) together and remove upwards from guide (2).

If necessary, remove shims.

WARNING: Retaining clip (1) may only be inserted from above.
Retaining clip (1) and if necessary shims must be seated without play.

Fig 2: Pressing Retaining Clip Together And Removing Upwards From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

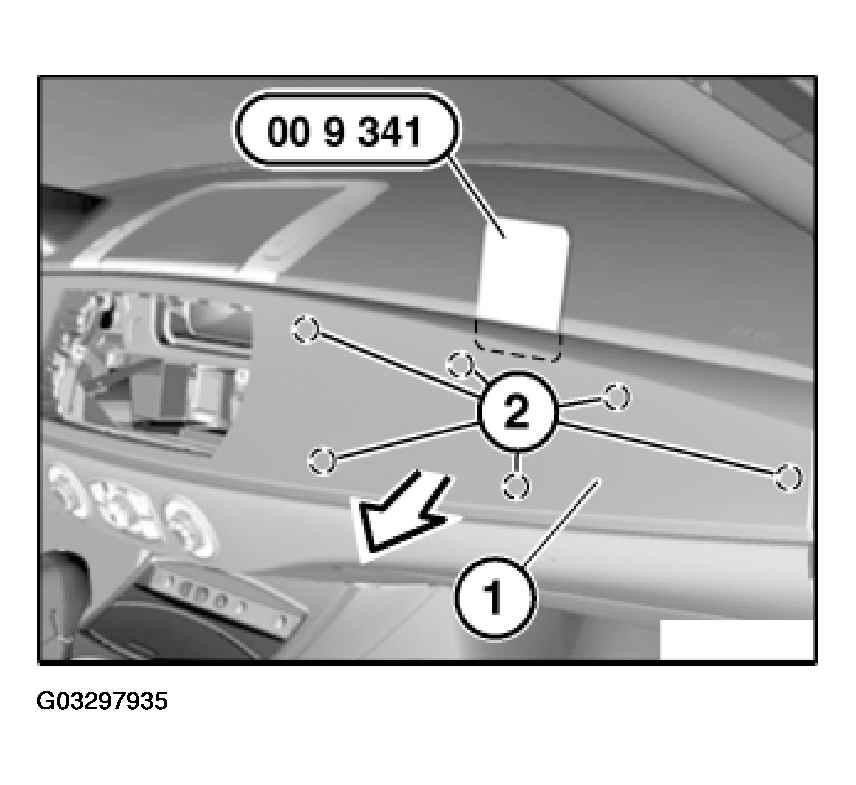

Lever out finisher on right instrument panel trim (1) with special tool 00 9 341 at mounting points (2) and remove in direction of arrow.

Fig 3: Identifying Lever Out Finisher On Right Instrument Panel Trim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

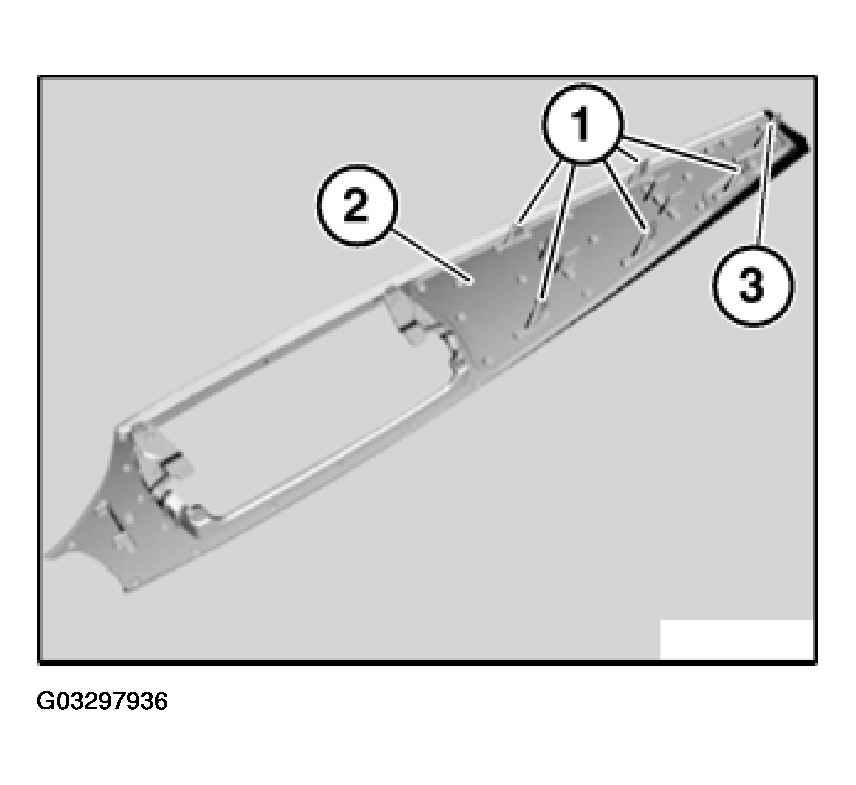

Always fit finisher for right instrument panel trim (2) with new retainers (1).

Locator for retaining clip (3) in outer front passenger area must not be equipped with retainers (1).

Fig 4: Installing Finisher For Right Instrument Panel Trim With New Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
