24 00 050 Installing replacement transmission (GA6HP19Z)

WARNING: This page is about a different variant/trim than selected.

Drain automatic transmission fluid at oil drain plug.

IMPORTANT: After completion of work, program transmission control unit.

NOTE: Recycling: Catch and dispose of escaping transmission fluid. Observe country-specific waste-disposal regulations.

IMPORTANT:

Before installing replacement transmission, always flush transmission fluid cooler together with lines. See 17 21 500 FLUSHING OIL COOLER WITH LINES (AUTOMATIC TRANSMISSION) .
After completion of work, check transmission fluid level .
Replacement transmission is supplied filled with transmission fluid.
Use only the approved transmission fluid. See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Convert selector lever (1). Tightening torque, see 24 51 1AZ in 51 EXTERNAL SHIFT LINKAGE . Modify holder (2).

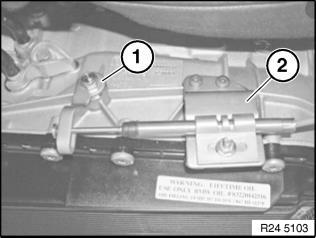

Fig 1: Convert Selector Lever (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Modify transfer box. Convert transportation lock (1). Convert all cable holders. Convert all seal plugs. Convert protective cap on output shaft.

IMPORTANT: After removing transportation lock, secure torque converter against slipping out.

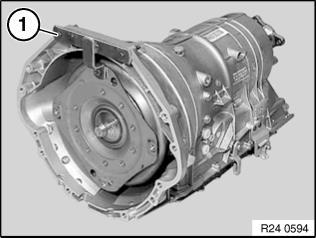

Fig 2: Convert Transportation Lock (1)

Courtesy of BMW OF NORTH AMERICA, INC.
