00 11 237 Checking/topping up fluid level in automatic transmission (GA6HP19Z)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Use only the approved transmission fluid. See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Installation:

Tighten down filler plug using

Hexagon wrench 8 A/F
Torque wrench
Socket 8 A/F

Fig 1: Hexagon Wrench 8 A/F
Courtesy of BMW OF NORTH AMERICA, INC.

Topping up transmission fluid after a repair:

Stand vehicle on a level surface and secure against rolling off. Undo filler plug (1).

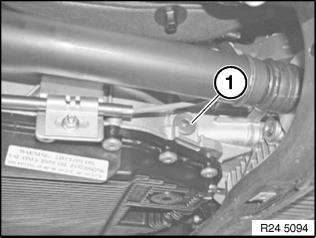

Fig 2: Undo Filler Plug (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Top up transmission fluid until it emerges from filling orifice. Start engine. Replenish transmission fluid until it emerges from filling orifice. Screw in filler plug (1). Tightening torque, see 24 11 7AZ in 24 11 TRANSMISSION HOUSING, TRANSMISSION OIL SUMP . Press brake pedal to floor and shift through all gears several times at idle speed. Then shift to "P" position (Park). Then check fluid level.

Checking fluid level:

Call up Service functions (Drive) in BMW diagnosis system
Carry out fluid level check in accordance with instructions
