24 00 030 Removing and installing automatic transmission (GA6HP19Z) N52K

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: After completion of work, check transmission oil level.  See 00 11 237 Checking/topping up fluid level in automatic transmission (GA6HP19Z) .
Use only the approved transmission fluid.  See AUTOMATIC TRANSMISSION - OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!
IMPORTANT:

Aluminium-magnesium materials

No steel screws/bolts may be used due to the threat of electrochemical corrosion.

A magnesium crankcase requires aluminium screws/bolts exclusively.

Aluminium screws/bolts must be replaced each time they are released.

Aluminium screws/bolts are permitted with and without colour coding (blue).

For reliable identification:

Aluminium screws/bolts are not magnetic.

Jointing torque and angle of rotation must be observed without fail (risk of damage).

Necessary preliminary tasks:

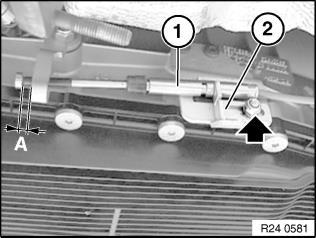

Unfasten nut. Disconnect cable (1). Installation:

Fig 1: Disconnect Cable (1)
G00497042Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1). Disconnect hydraulic lines (2) to transmission fluid cooler. Tightening torque 17 22 1AZ. Installation: Replace sealing rings.

Fig 2: Disconnect Hydraulic Lines (2) To Transmission Fluid Cooler
G00497043Courtesy of BMW OF NORTH AMERICA, INC.

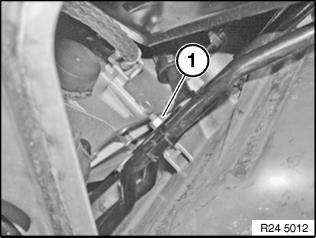

Release nut (1) and bracket from transmission oil lines on oil sump. Tightening torque 17 22 2AZ.

Fig 3: Release Nut (1) And Bracket From Transmission Oil Lines On Oil Sump
G00497044Courtesy of BMW OF NORTH AMERICA, INC.

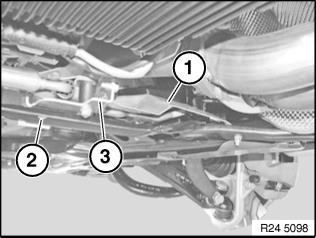

Remove heat shield (1). Release screw (2). Detach bracket (3) from front axle.

Fig 4: Detach Bracket (3) From Front Axle
G00497045Courtesy of BMW OF NORTH AMERICA, INC.

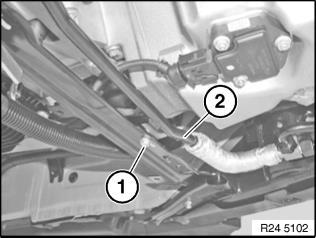

Release screw (1). Detach oil line (2) from front axle.

Fig 5: Detach Oil Line (2) From Front Axle
G00497046Courtesy of BMW OF NORTH AMERICA, INC.

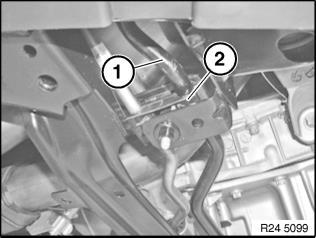

Detach oil lines (1) from bracket (2).

Fig 6: Detach Oil Lines (1) From Bracket (2)
G00497047Courtesy of BMW OF NORTH AMERICA, INC.

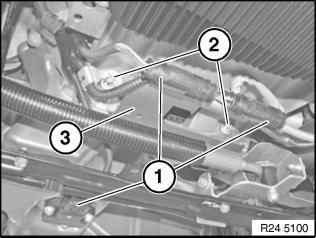

Disconnect connector (1). Release screws (2). Remove retaining plate (3). Tightening torque, 24 00 1AZ.

Fig 7: Remove Retaining Plate (3)
G00497048Courtesy of BMW OF NORTH AMERICA, INC.

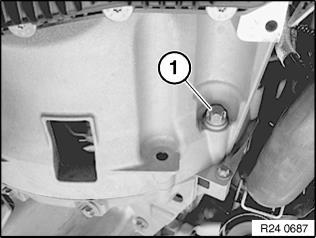

Release aluminium screw on right (1) on right next to cable retaining plate with special tool 00 9 010. Aluminium screws must be replaced. Tightening torque 24 00 2AZ.

Fig 8: Release Aluminium Screw On Right
G00497049Courtesy of BMW OF NORTH AMERICA, INC.

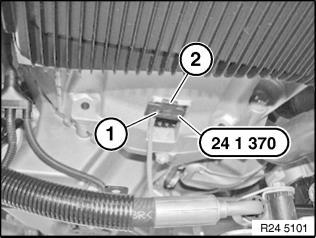

Insert special tool 24 1 370 into opening of transmission housing and secure with screw (1).

NOTE: Check installation location. Lug (2) must point in opposite direction to direction of travel!
Fig 9: Lug (2) Must Point In Opposite Direction To Direction Of Travel
G00497050Courtesy of BMW OF NORTH AMERICA, INC.

Operations are described in notes on mechatronics .

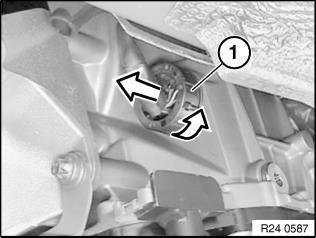

Fig 10: Unlock And Disconnect Plug (1) By Turning
G00497051Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050, 00 2 030. Secure transmission to mounting with tensioning strap (1). Tasks are described in Transmission bracket. After completion of work, check transmission oil level.

Fig 11: Secure Transmission To Mounting With Tensioning Strap
G00497052Courtesy of BMW OF NORTH AMERICA, INC.

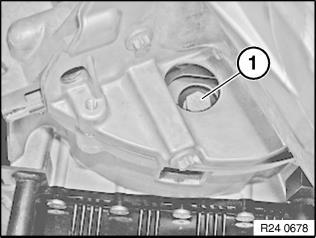

Crank engine at vibration damper in direction of rotation until screw (1) is visible in opening. Release all screws of torque converter with special tool 24 1 110. Crank engine further and release remaining 5 bolts. Tightening torque 24 40 1AZ.

Fig 12: Crank Engine At Vibration Damper In Direction Of Rotation
G00497053Courtesy of BMW OF NORTH AMERICA, INC.

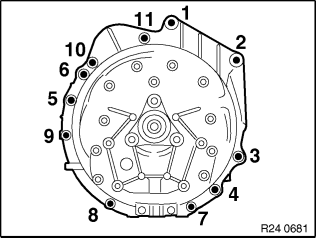

Release screws. Installation: Observe screw fastening sequence without fail. Tightening torque, steel screws 24 00 1AZ. Aluminium screws must be replaced. Tightening torque and angle of rotation, aluminium screws/bolts 24 00 2AZ.

Fig 13: Screw Fastening Sequence
G00497054Courtesy of BMW OF NORTH AMERICA, INC.

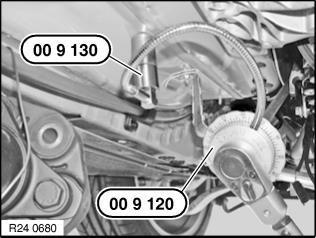

Installation: Tighten down screws/bolts to specified torque. Secure rotation angle of special tool 00 9 120 with magnet 00 9 130 to underbody and screw down blue aluminium screws/bolts in accordance with angle of rotation. Angle of rotation 24 00 2AZ.

Fig 14: Secure Rotation Angle Of Special Tool 00 9 120 With Magnet 00 9 130
G00497055Courtesy of BMW OF NORTH AMERICA, INC.

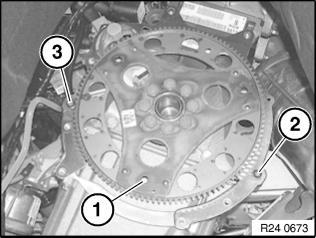

Installation: Bore hole (1) of drive plate must be accessible from opening on engine oil sump. Check dowel sleeves (2...3) for correct seating. Replace damaged dowel sleeves.

Fig 15: Bore Hole (1) Of Drive Plate Must Be Accessible From Opening On Engine Oil Sump
G00497056Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Rotate torque converter until bore in torque converter is flush with bore in driving disc. Flange automatic transmission to engine.
