22 32 001 Replacing rubber mount for transmission mounting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 22 1 011
- 22 1 014
- 22 1 016
- 22 1 021
- 33 3 144
Necessary preliminary tasks:
- Remove complete exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M54) .
- Remove heat shield.
- Support transmission with hydraulic lifter.
- Remove transfer box. Refer to ATC 400 X-DRIVE TRANSFER CASE .

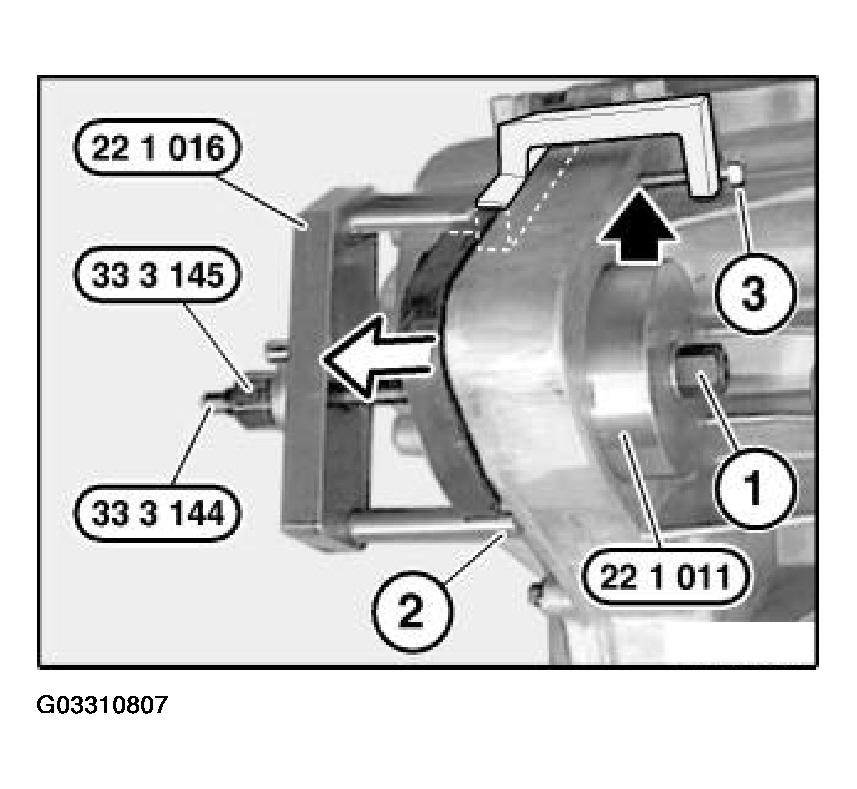

Position special tool 22 1 016 on opening (2) and twist in screw (3) hand-tight against housing.
Pull out rubber mount with special tools 22 1 011 / 33 3 144 and nut (1).
Nut (1) = M 12x1.5 nut
Installation:

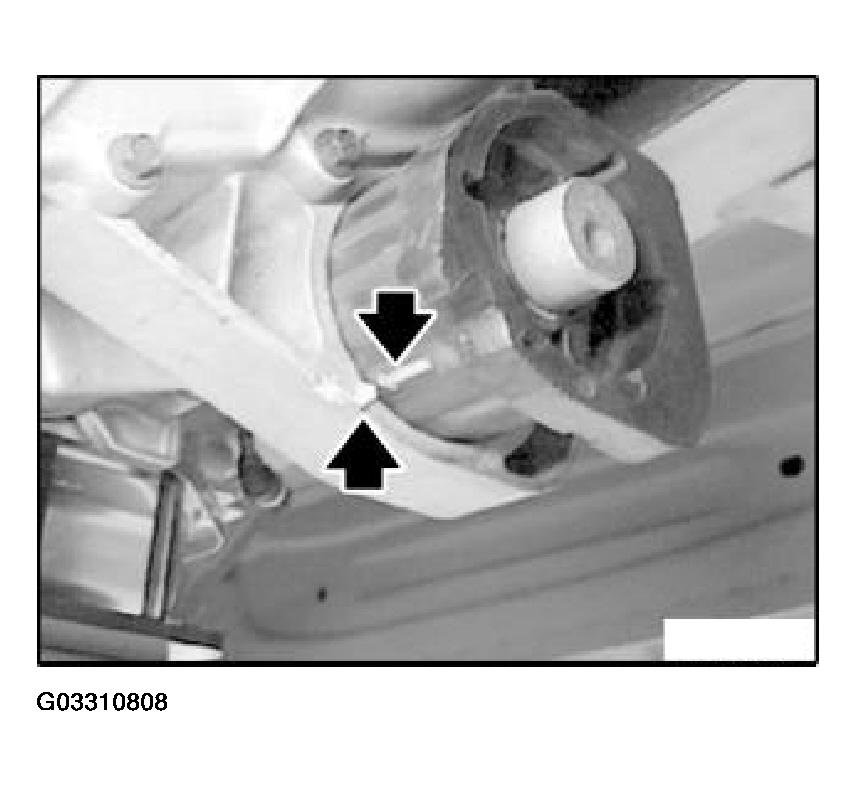

Arrow on rubber mount must point to arrow on housing.
Coat housing bore and rubber mount with Circolight (available via BMW/MINI).

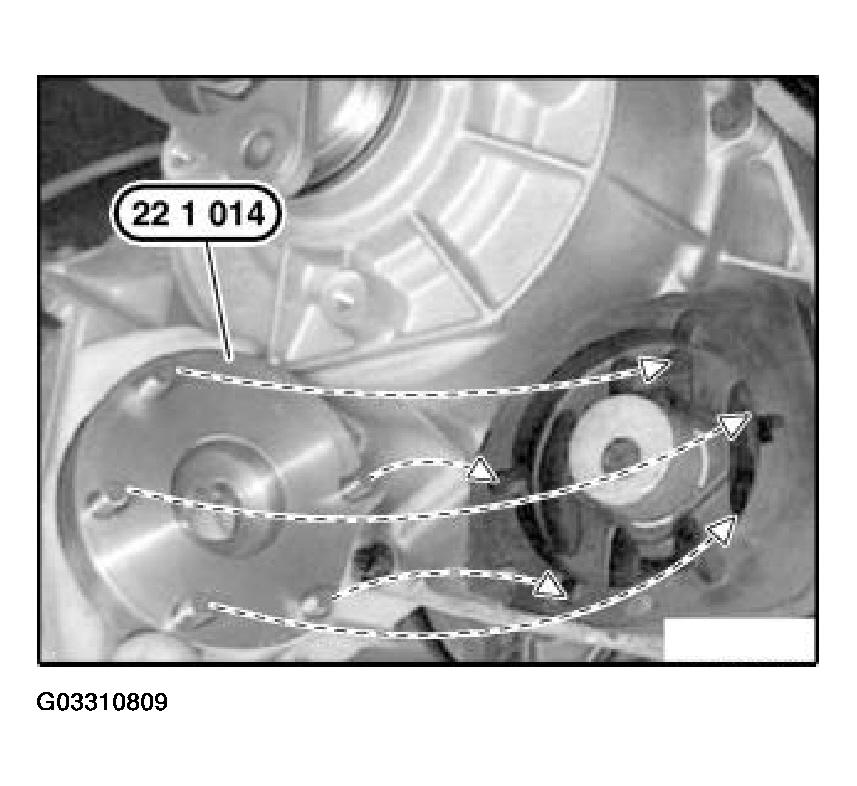

Insert special tool 22 1 014 with pins into openings of rubber mount.

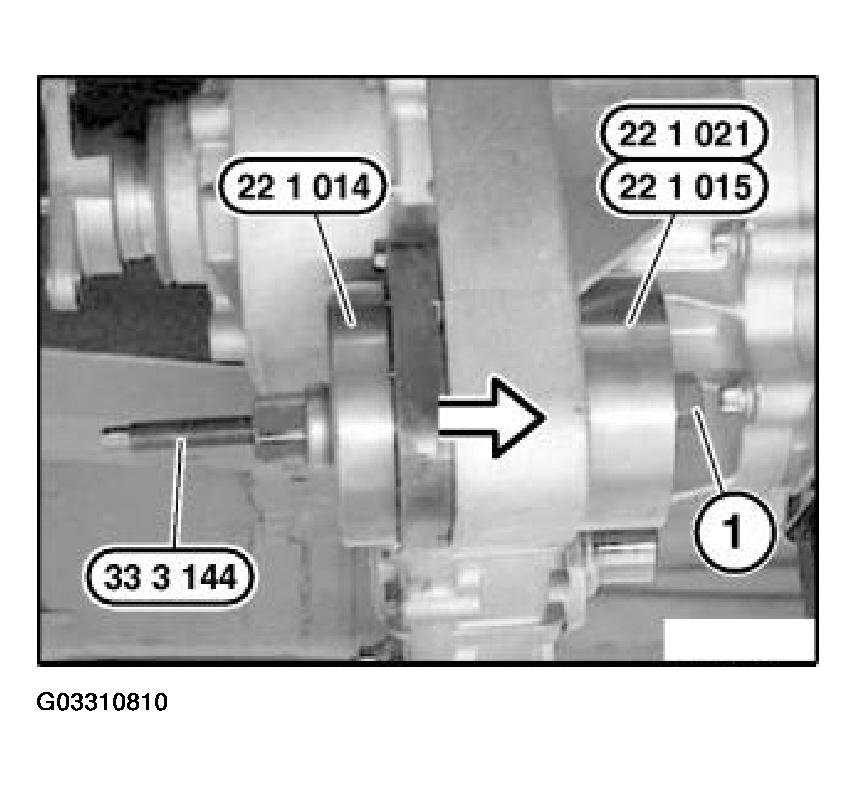

Draw in rubber mount with special tools 22 1 014/ 22 1 021 / 33 3 144 and nut (1).
Nut (1) = M12x1.5
