52 26 411 Replacing backrest cover for left rear seat
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 52 0 050 , see 52 0 050 PLIERS .
Necessary preliminary tasks:
- Remove left backrest cover , see 52 13 405 Replacing backrest cover for left or right front seat (normal/semi-electric) .
- ski bag , see 52 26... Removing and installing/replacing ski bag on rear seat .
- Remove backrest actuator trim and lock trim , see 52 26 311 Removing and installing/replacing lock for left or right rear seat backrest .
- Only on vehicles with 5 seats: Remove head restraint.

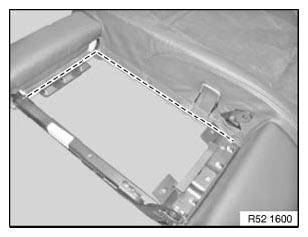

Lever trim wire out of metal claws in marked area.

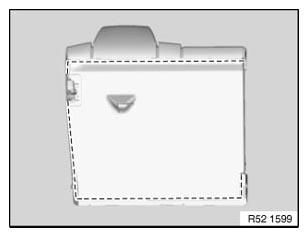

Lever out welt in marked area of rear panel.
Remove backrest cover with padding.
Detaching cover and padding:

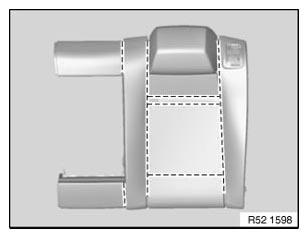

- Release all retainers in marked area
- Remove cover from padding
- Remove remaining retainers from cover and padding
Replacement only:
- Pull all trim wires out of cover
- If necessary, cut pockets in new cover for trim wires
- Push trim wires into cover pockets
Installation:
Insert new retainer (2) with special tool 52 0 050 and bend closed.
- Padding
- Retainer
- Trim wire in padding
- Trim wire in seat cover
- Backrest cover
