32 41 333 Replacing pressure line for Dynamic Drive (line part 2) (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Necessary preliminary tasks:

Release hexagon socket screws from flange (1).

Tightening torque 32 41 16AZ .

Seal pressure line and power steering pump connection with suitable sealing plugs.

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

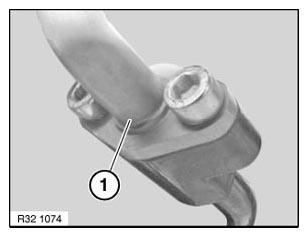

Fig 1: Identifying Hexagon Socket Screws From Flange
G06211526Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove pressure line from decoupling element (2).

Tightening torque 32 41 7AZ .

Installation:

Replace self-locking nut.

Make sure pressure line (3) is laid without tension and with sufficient spacing to adjoining components.

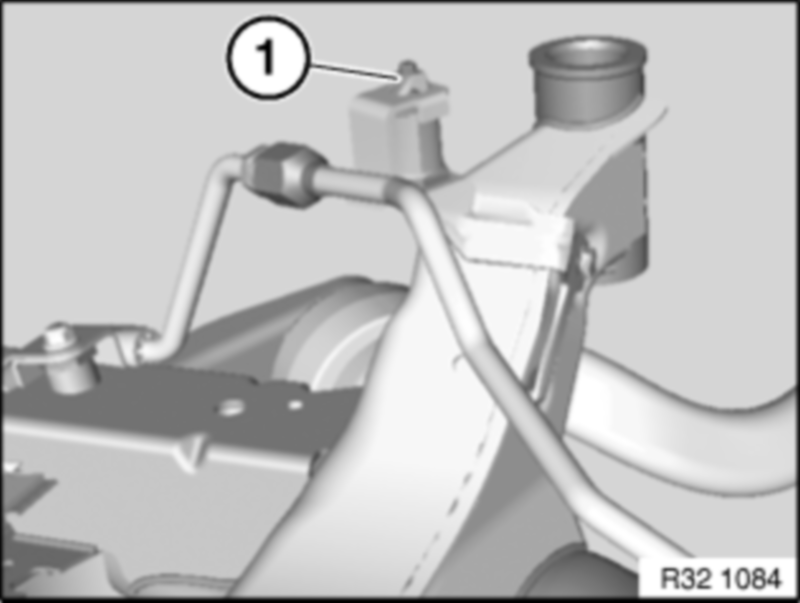

Fig 2: Identifying Pressure Line And Nut
G00489716Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove heat shield (2).

Tightening torque 32 41 14AZ .

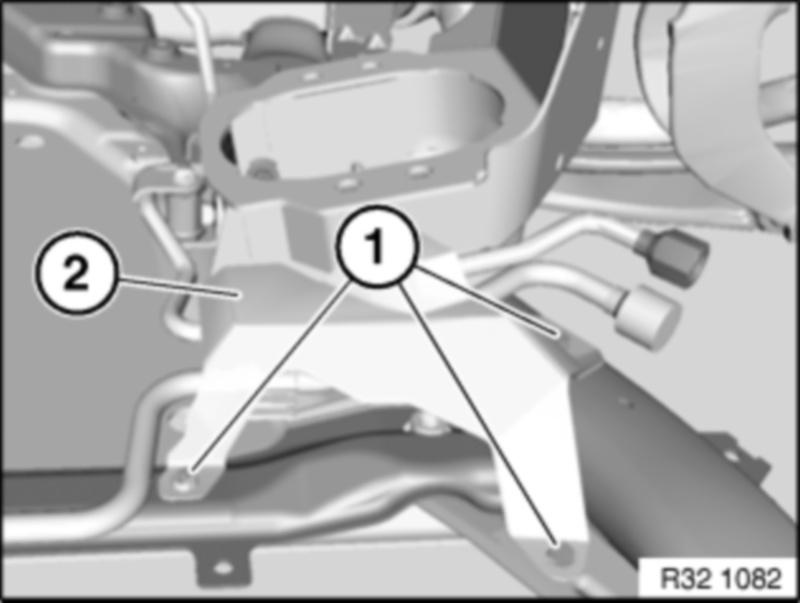

Fig 3: Identifying Heat Shield And Screws
G00489715Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 32 41 7AZ .

Release screw (2) and remove bracket (3).

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

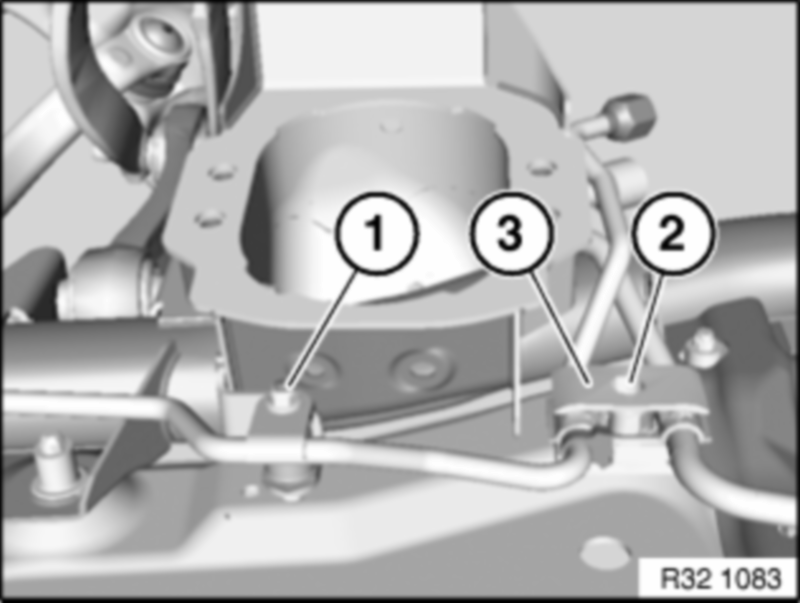

Fig 4: Identifying Bracket And Screws
G00489717Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1).

Tightening torque 32 41 15AZ .

Seal pressure lines with suitable sealing plugs.

Remove pressure line (2).

Installation:

Hydraulic lines are not permitted to contact each other or adjoining components.

Fig 5: Identifying Pressure Line And Banjo Bolt
G06211520Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
