32 41 331 Replacing pressure line for power steering (N63)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.
Close off pipe connections with plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Lower RADIATOR
- Remove UNDERBODY PROTECTION
- Remove power steering pump
- Remove STEERING GEAR COVER on left
- Remove AUXILIARY WATER PUMP
- Remove transmission oil cooler
Release banjo bolt (1) and remove pressure line (2) from power steering gear.
Installation:
Replace all sealing rings.
Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 5AZ .
Expose pressure line up to connection on vane pump.

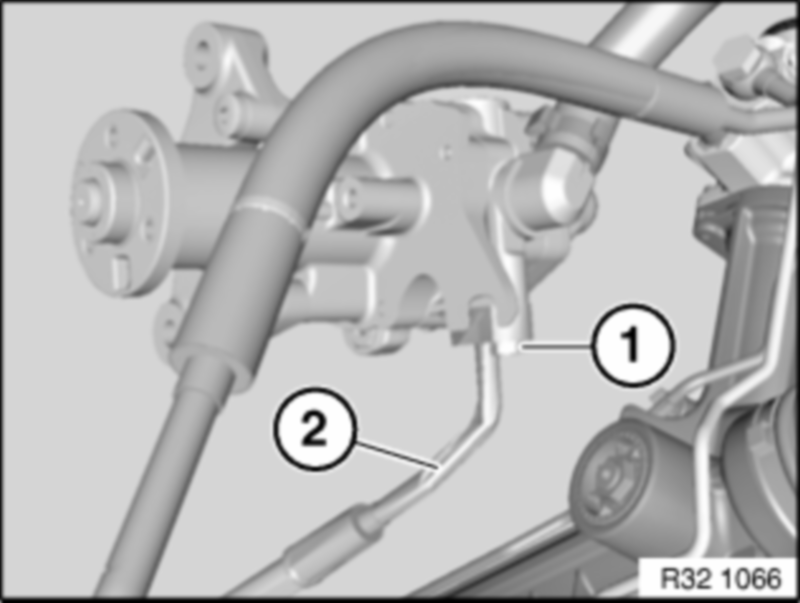

Release screw (1) and remove pressure line (2).
Installation:
Replace all sealing rings.
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque 32 41 4AZ .
After installation:
- Fill and bleed HYDRAULIC SYSTEM
- Check pipe connections for leaks
