28 00 001 Removing and installing twin clutch transmission (GS7D36SG) S65

Special tools required

IMPORTANT: The specific transmission data must  be read out before removing the gearbox.

After completion of work, check TRANSMISSION OIL LEVEL  .

Use only the approved gear oil for dual clutch transmission.

Failure to comply with this instruction will result in serious damage to the twin clutch transmission.

Apply a thin coating of "MI - Setral-43N" grease to transmission input shaft!

Necessary preliminary tasks

Release screw (1).

Unlock and disconnect plug (2).

Release cable (3) from holders.

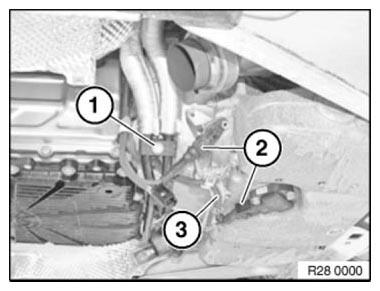

Fig 1: Identifying Cable Of Holders And Plug Screw
G06921502Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove retaining plate (2).

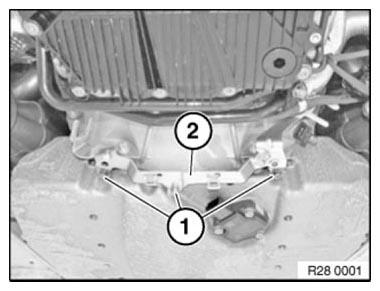

Fig 2: Identifying Retaining Plate With Screws
G06921503Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque, see DOUBLE CLUTCH GEARBOX - TIGHTENING TORQUES .

Release screw (2).

Tightening torque, see DOUBLE CLUTCH GEARBOX - TIGHTENING TORQUES .

Remove input speed sensor (3).

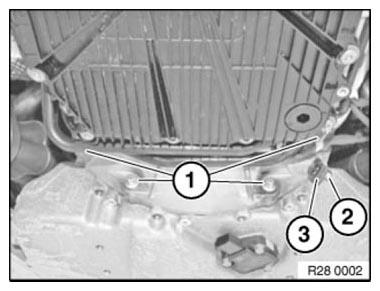

Fig 3: Identifying Speed Sensor With Screws
G06921504Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unlock retainer (2).

Release cable from lever and holder.

Fig 4: Identifying Retainer With Screw
G06905089Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque, see DOUBLE CLUTCH GEARBOX - TIGHTENING TORQUES .

Disconnect hydraulic lines (2) to transmission fluid cooler.

Close off hydraulic lines and connecting bores on thermostat with plugs.

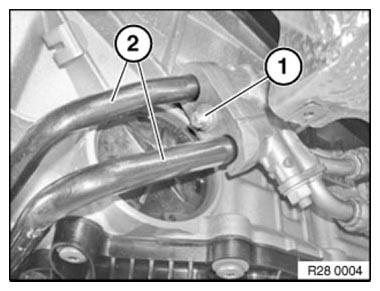

Fig 5: Identifying Hydraulic Lines With Screws
G06921506Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings (1).

IMPORTANT: During installation:
mount O-rings (1) onto line.
wet O-rings (1) and connecting bores with transmission oil DCTF-1.
do not install dry  O-rings.

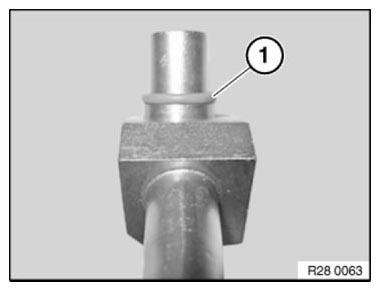

Fig 6: Identifying Sealing Rings
G06921507Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission

Support transmission with special tools 23 4 050 FIXTURE , 00 2 030 DEVICE .

Secure transmission to mounting with tensioning strap (1).

After completion of work, check transmission oil level.

Fig 7: Supporting Transmission Using Special Tools (23 4 050, 00 2 030)
G05758007Courtesy of BMW OF NORTH AMERICA, INC.

Bolt special tool 11 9 990 DEVICE with bolt (1) to front axle support.

Bolt (2) is required to secure the engine in the correct position.

Fig 8: Identifying Special Tool 11 9 990 With Bolt
G06203774Courtesy of BMW OF NORTH AMERICA, INC.

Adjust special tool 11 9 990 DEVICE until dimension A=50 mm is obtained between front axle support and tensioner.

Fig 9: Identifying Front Axle Support And Tensioner Dimension
G06203775Courtesy of BMW OF NORTH AMERICA, INC.

Remove CROSSMEMBER FOR TRANSMISSION MOUNTING (S65) .

Release screw (1).

Tightening torque, see DOUBLE CLUTCH GEARBOX - TIGHTENING TORQUES .

Remove transmission fluid thermostat (2).

Close off connecting bores on transmission and thermostat with plugs.

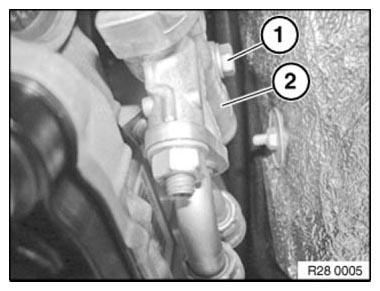

Fig 10: Identifying Transmission Fluid Thermostat And Screw
G06921511Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Clean screw thread.

IMPORTANT: During installation:
mount O-rings (1) onto line.
wet O-rings (1) and connecting bores with transmission oil DCTF-1.
do not install dry  O-rings.

Screw (2) must be coated  with Loctite 243 prior to installation.

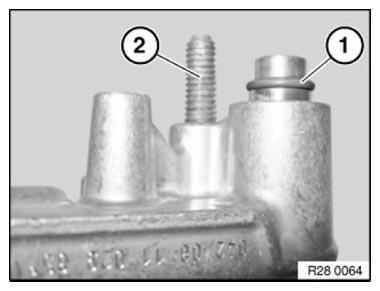

Fig 11: Identifying O-Rings With Screw
G06921512Courtesy of BMW OF NORTH AMERICA, INC.

Operations are described in:

NOTES ON MECHATRONICS

IMPORTANT: Read and comply with important note.
Fig 12: Turning Plug
G06905094Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to routing and length of wiring harness.

Insert special tool 24-2390 CAP in sealing sleeve (1).

Fig 13: Inserting Special Tool (24 2 390) On Sealing Cup
G06905057Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque, see 28 10 HOUSING WITH ADD-ON PARTS .

Pull oil - coolant heat exchanger towards rear out of guide (2).

IMPORTANT: Guide (2) breaks if oil-coolant heat exchanger is twisted during removal.

Installation:

Oil-coolant heat exchanger and transmission oil thermostat remain on vehicle during removal of transmission.

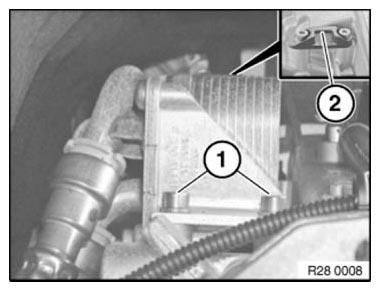

Fig 14: Identifying Oil - Coolant Heat Exchanger With Screws
G06921515Courtesy of BMW OF NORTH AMERICA, INC.

Release wiring harness.

IMPORTANT: Do not  mix up connections for monitoring sensors.

Installation:

Release screws (1) and (2).

IMPORTANT: Bolts (2) are longer than bolts (1)

Tightening torque, see 28 00 DOUBLE CLUTCH GEARBOX .

NOTE: Bolt (3) must not be released.
Bolt (3) is for securing the starter.

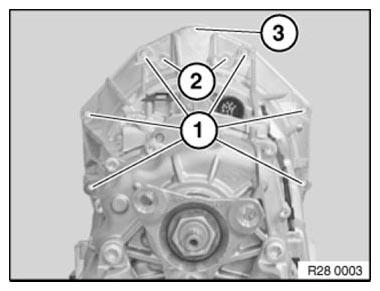

Fig 16: Identifying Starter Screws And Bolt
G06921517Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Apply a thin coating of "MI-Setral-43N" grease to transmission input shaft.

BMW part number EU: 83 23 2 152 082

BMW part number USA: 83 23 2 152 081
