65 77 760 Removing and installing (replacing) rear seat sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS
.
Incorrect handling can activate AIRBAG and cause injury.
Incorrect handling can activate AIRBAG and cause injury.
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove rear seat (normal). Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
- Remove center seat section (comfort seat). Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

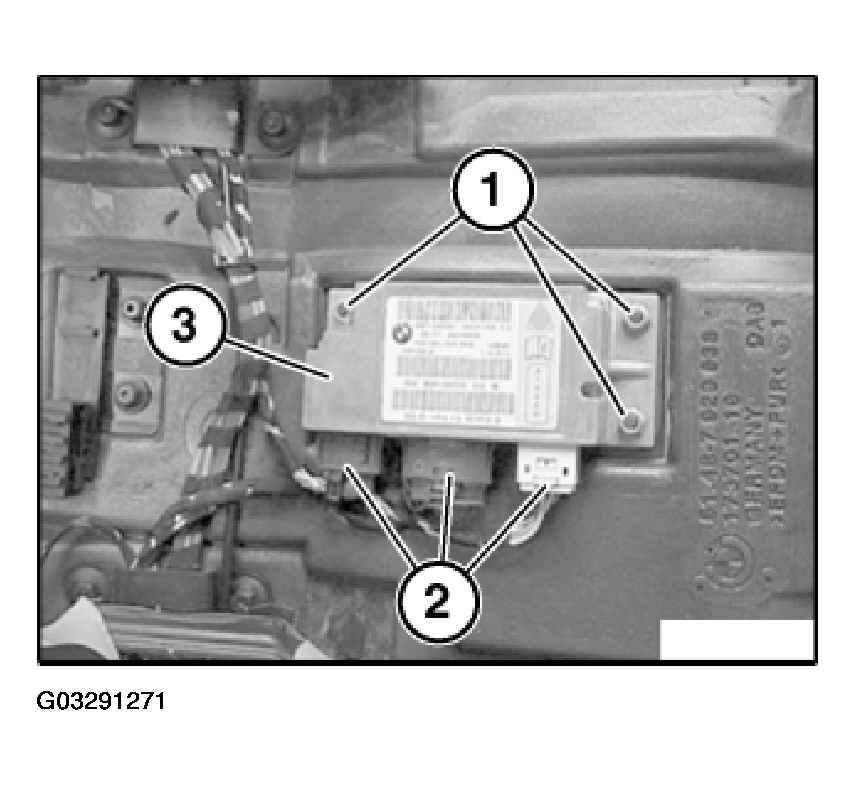

Release screws (1).
Installation:
Tightening torque 65 77 8AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - 745I - E65 .
Make sure sensor is mounted without play.
Unlock plug connections (2) and disconnect.
Remove rear seat sensor (3).
Replacement:

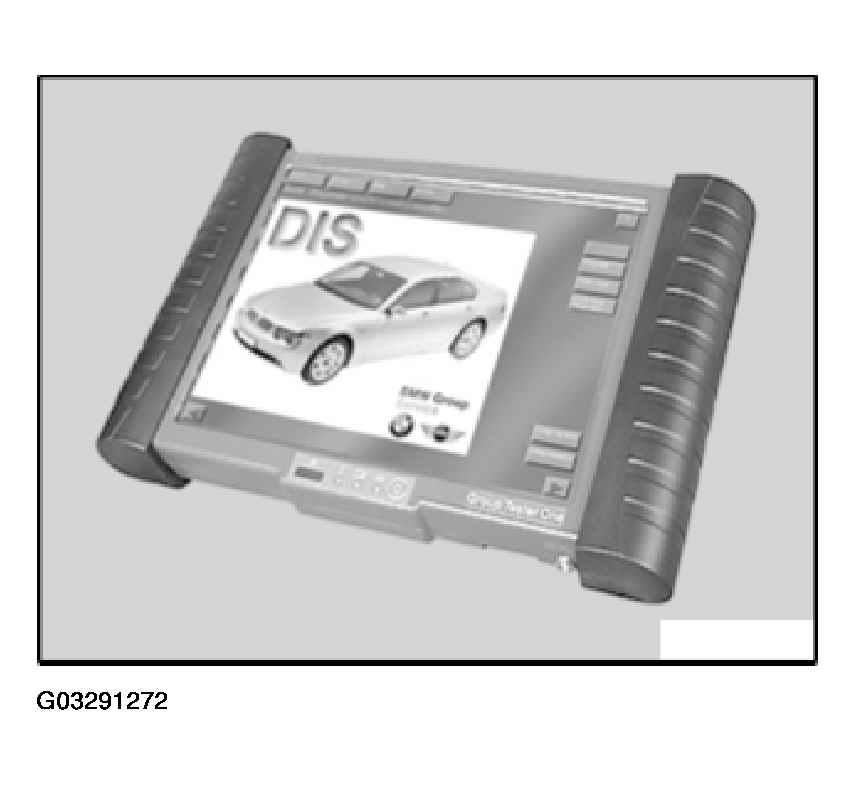

Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
