52 24 005 Removing and installing/replacing rear seat (normal)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

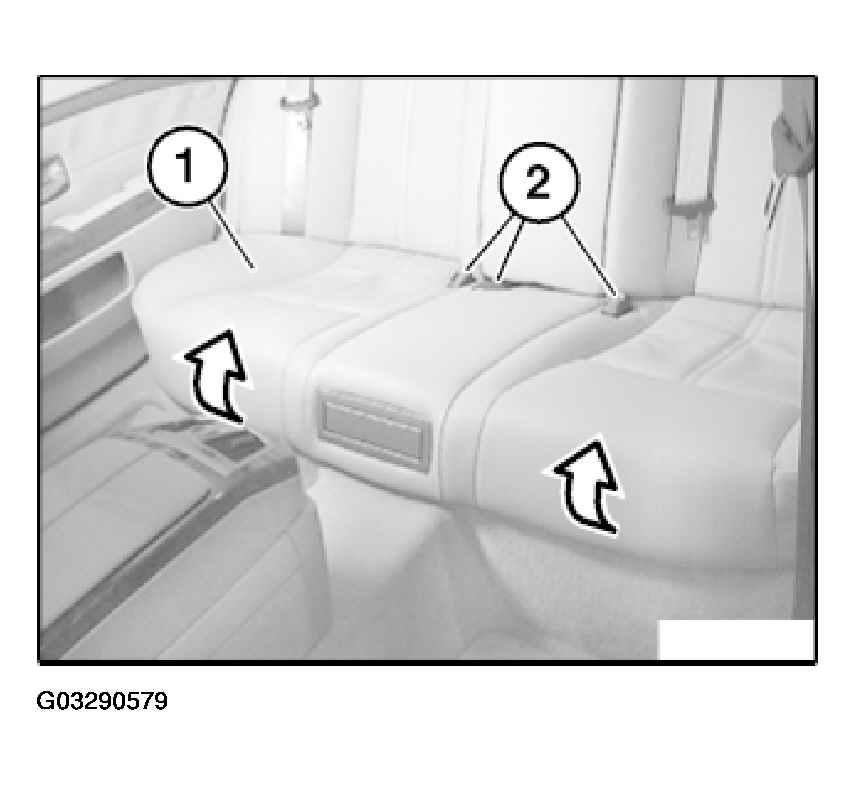

Unclip rear seat (1) on left and right.

Fig 1: Removing Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out belt buckles (2).

If necessary, disconnect plug connection for seat heater.

Remove rear seat (1).

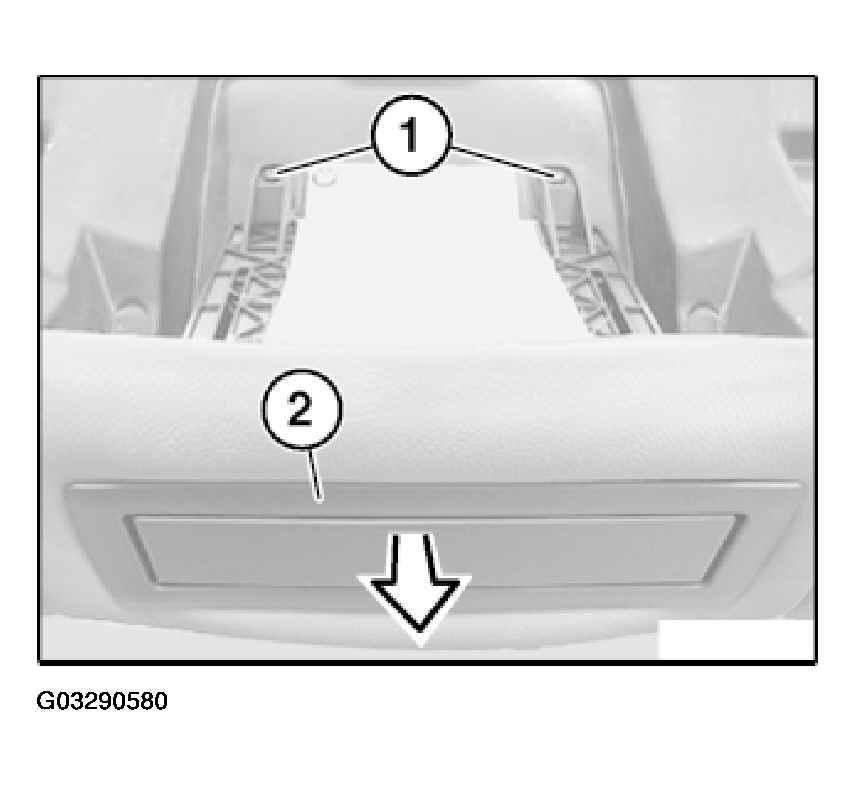

Release screws (1).

Fig 2: Removing Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cup holder (2) towards front.
