52 25 002 Removing and installing padding for left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip seat (1) on left and right by lifting out of catch.

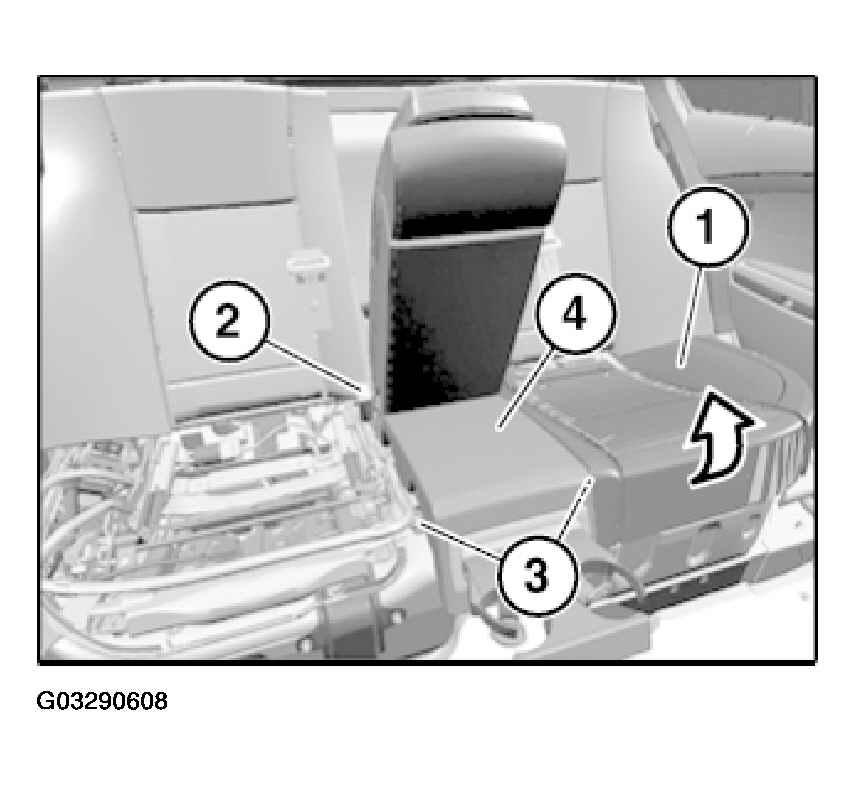

Fig 1: Removing Padding
G03290608Courtesy of BMW OF NORTH AMERICA, INC.

Feed out belt buckle (2), remove seat (1).

Disconnect all plug connections (seat heating, air conditioning...).

Release screws (3) on left and right, remove seat center section (4).

Feed out belt buckle.
