51 45 177 Removing and installing/replacing panel for active knee protector on left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety regulations for handling AIRBAG modules and pyrotechnical seatbelt tensioners.
Incorrect handling can activate AIRBAG and cause injury.

Follow instructions for disconnecting and connecting battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect battery negative lead.

Remove middle instrument panel trim. Refer to 51 45... REMOVING AND INSTALLING/REPLACING CENTER INSTRUMENT PANEL TRIM .

Remove lighting control unit. Refer to 61 31 037 REMOVING AND INSTALLING/REPLACING LIGHTING CONTROL UNIT .

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Turn plug connection (1) approx. 30° counterclockwise and remove from holder (2).

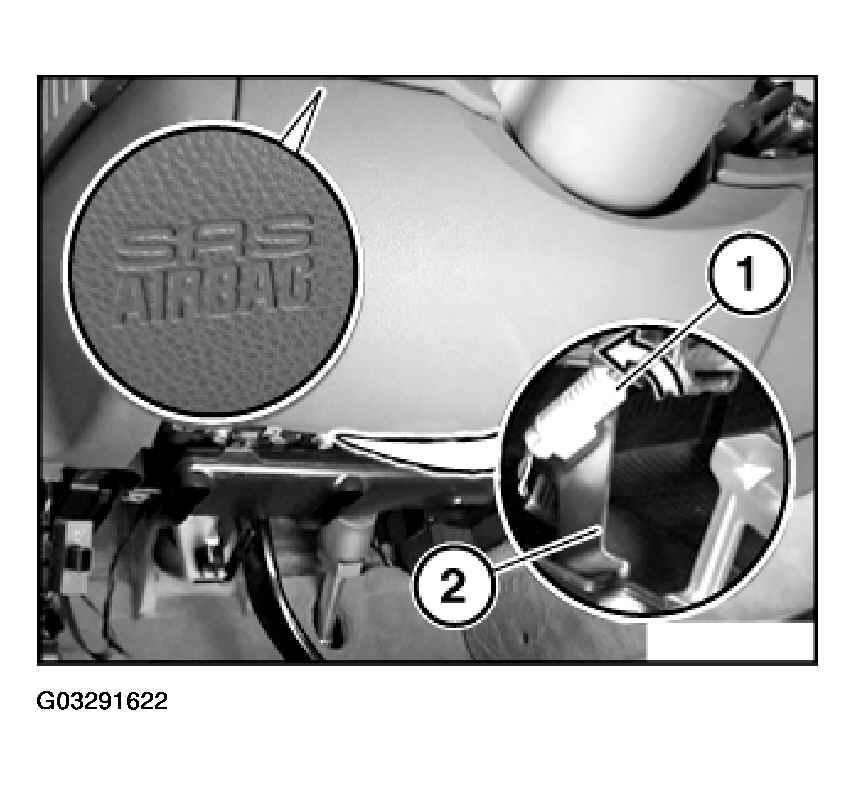

Fig 1: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (1).

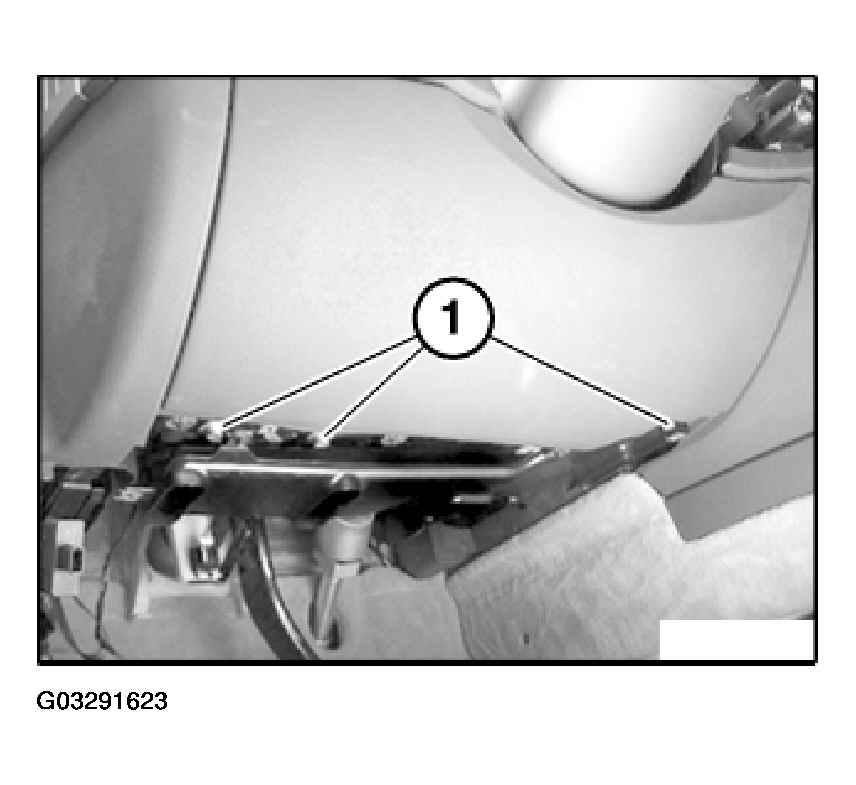

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 51 45 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Release screws (1).

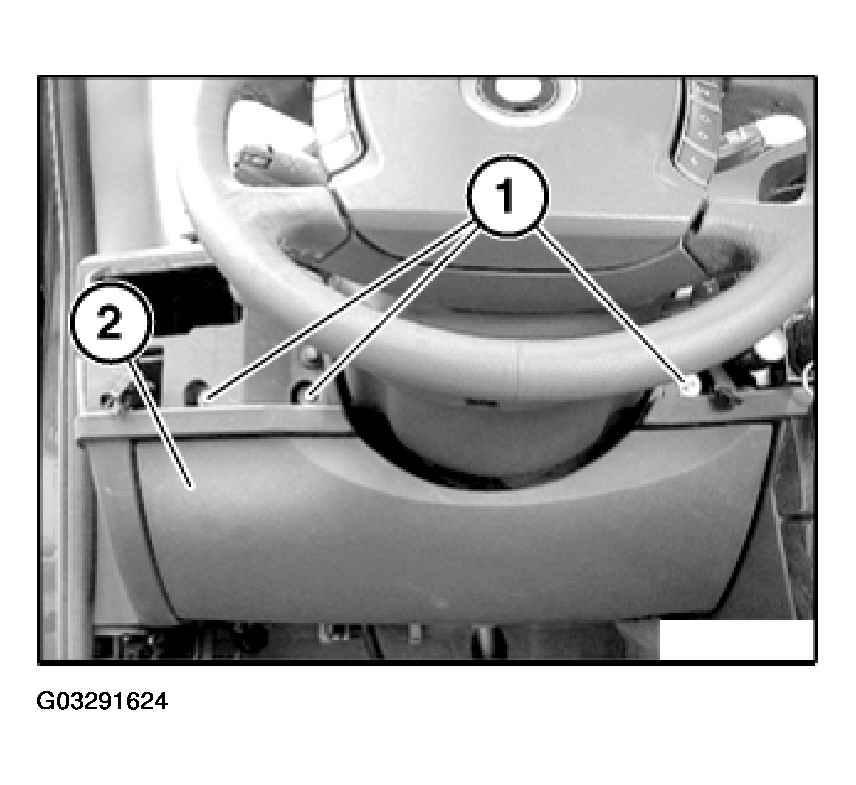

Fig 3: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 51 45 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Remove panel (2).

CAUTION: Always replace panel for active knee protector on left complete.
Do not carry out any repairs on AIRBAG module.

Installation:

Slide guide (1) of steering column panel into mounting (2).

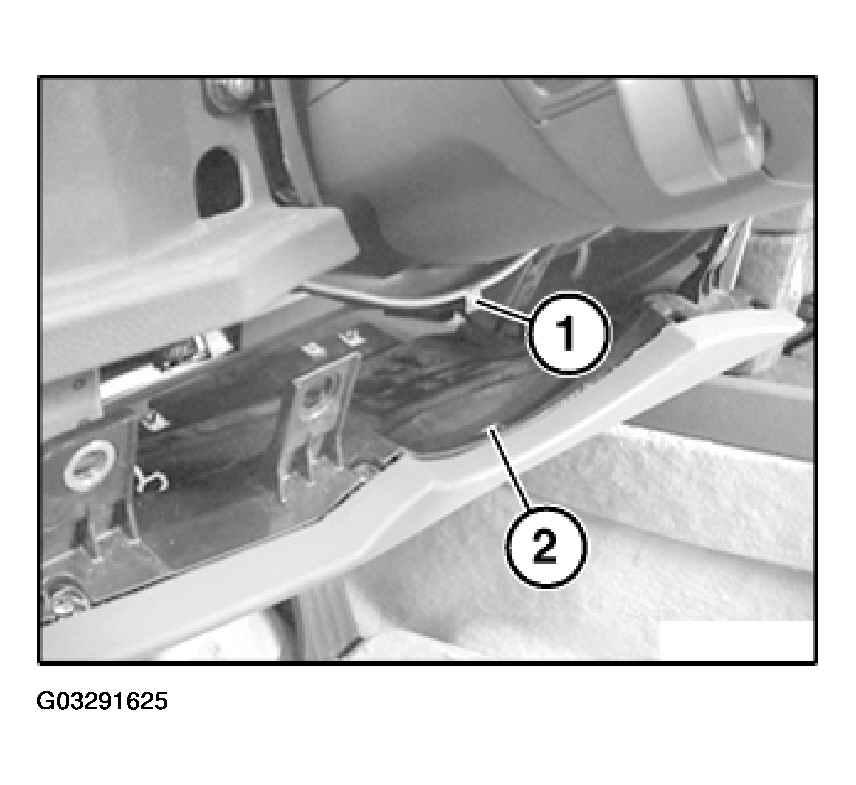

Fig 4: Installing Guide Of Steering Column Panel

Courtesy of BMW OF NORTH AMERICA, INC.
