51 45... Removing and installing/replacing center instrument panel trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove wood trim on instrument panel on right. Refer to 51 45 366 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON RIGHT .

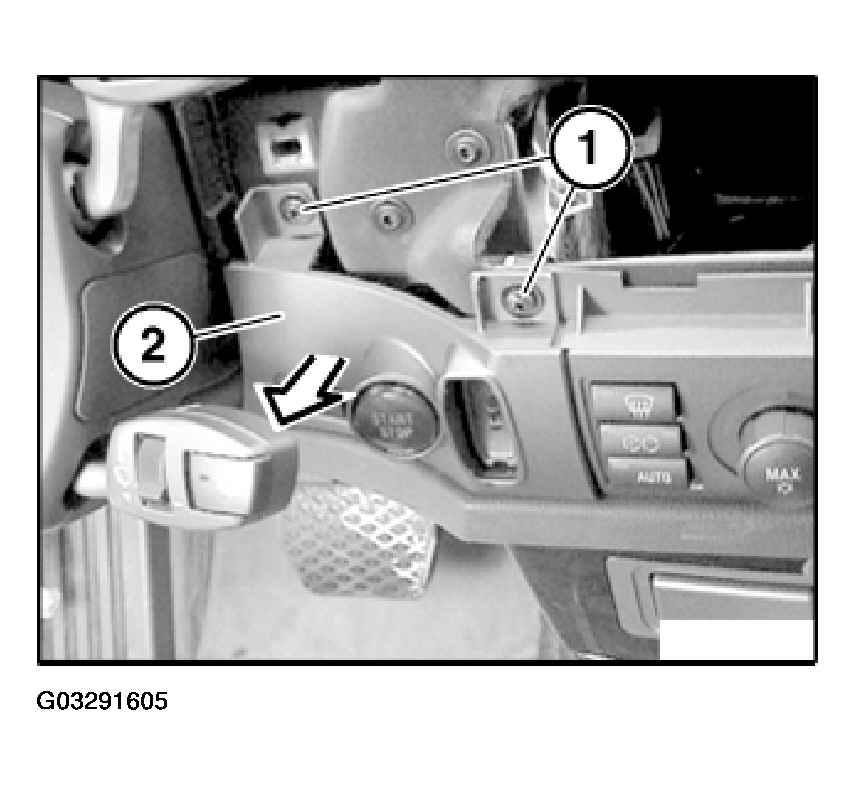

Release screws (1).

Pull out trim (2) slightly in direction of arrow.

Fig 1: Pulling Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

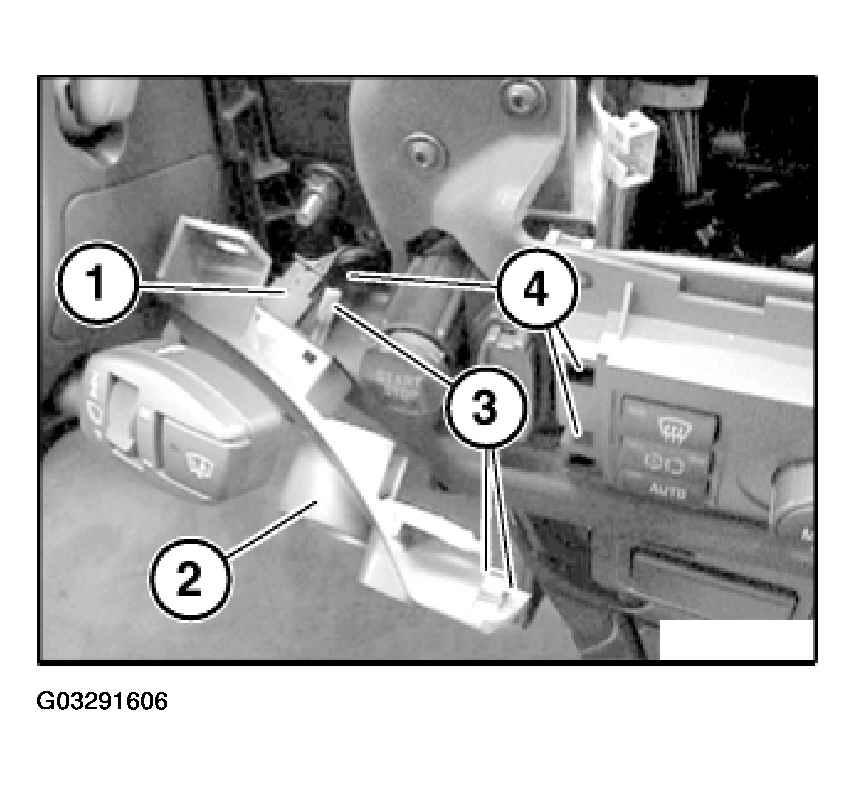

Unlock plug (1) from PDC switch and detach.

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (2).

Installation:

Make sure retainers (3) engage correctly in openings (4).
