61 31 037 Removing and installing/replacing lighting control unit
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove wood trim on instrument panel on left. Refer to 51 45 360 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON LEFT .

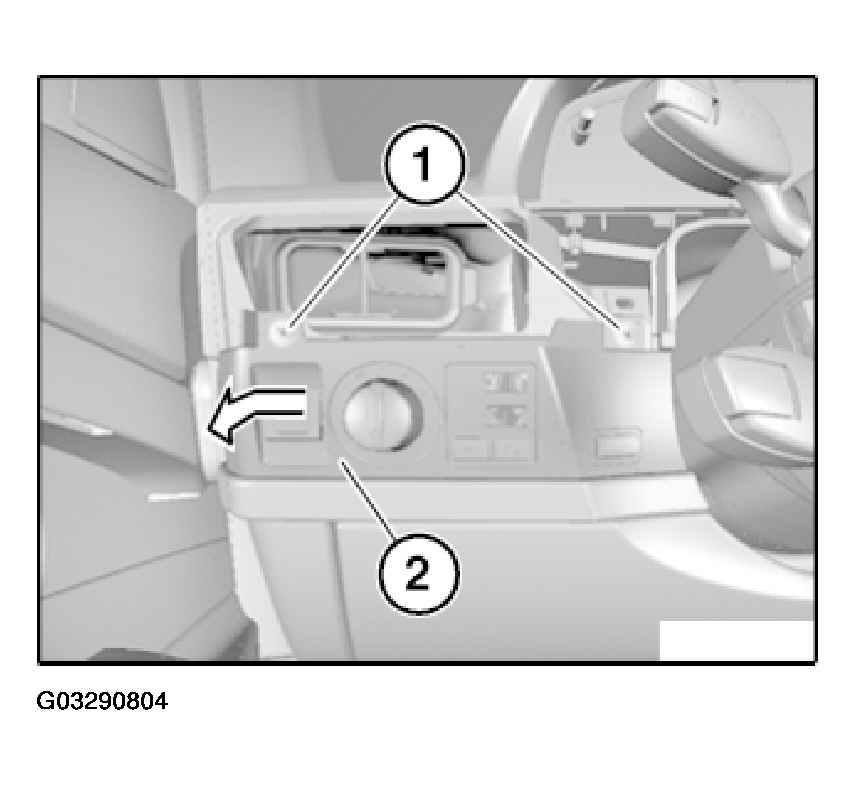

Release screws (1).
Feed lighting control unit (2) out in direction of arrow.
Disconnect plug connection behind and remove lighting control unit (2).
