63 17 060 Removing and installing (replacing) left or right front fog lamp

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock inner catches (1) and pull off trim grill (2) in direction of arrow.

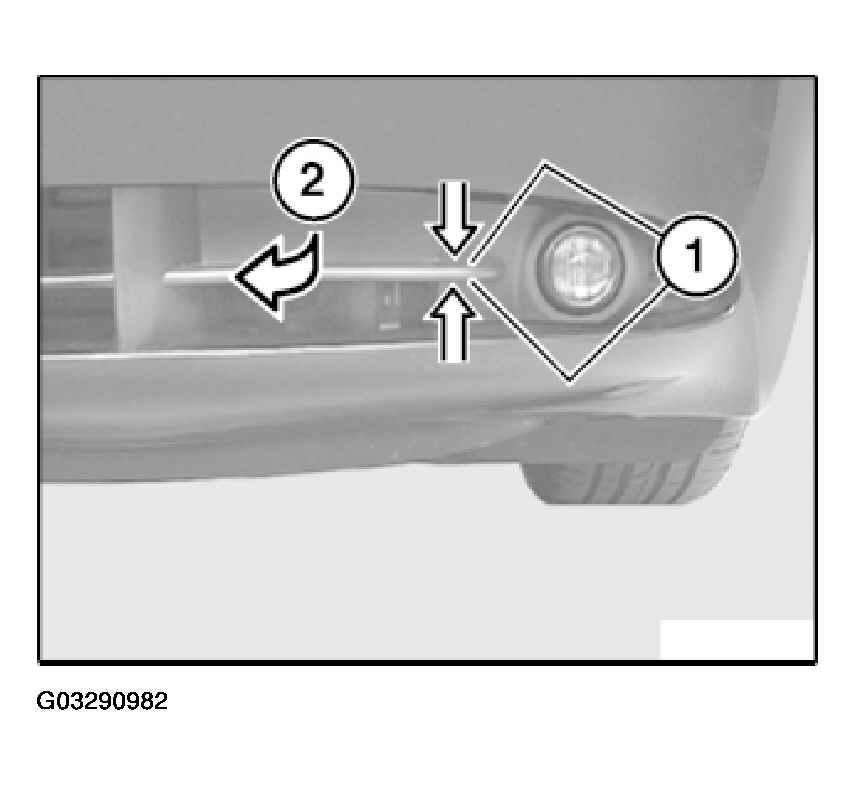

Fig 1: Pulling Off Trim Grill

G03290982

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of trim grill (2) must not be damaged.

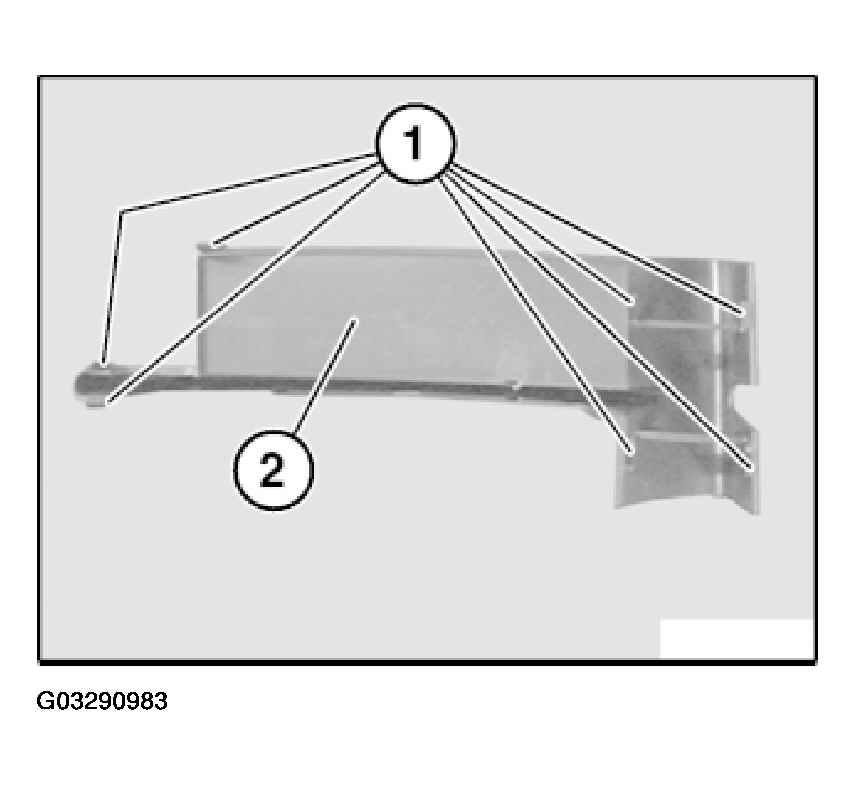

Fig 2: Identifying Retaining Hooks Of Trim Grill

G03290983

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

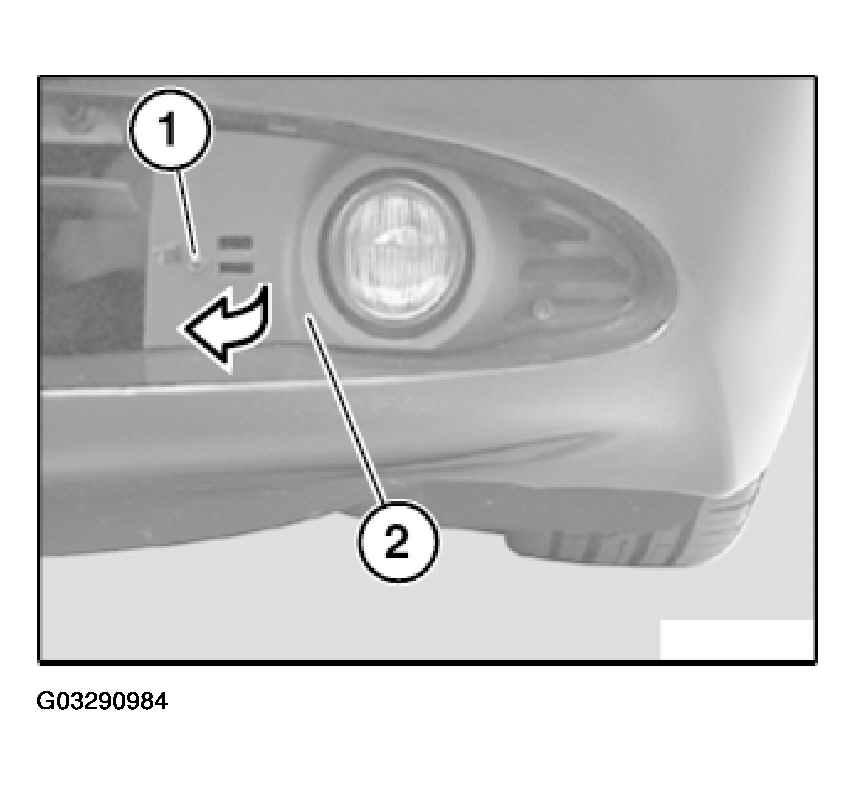

Fig 3: Feeding Out Front Fog Light

G03290984

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out front fog light (2) in direction of arrow.

Secure front fog light (2) against falling out.

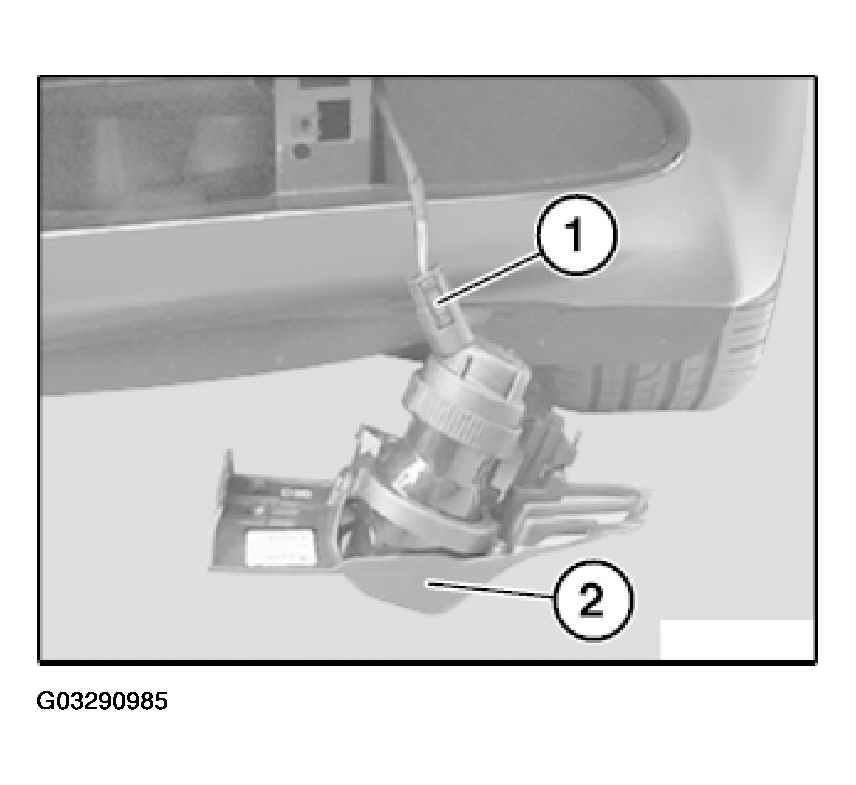

Fig 4: Removing Front Fog Light

G03290985

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove front fog light (2).

Replacement:

CAUTION: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

Adjust front fog lamps. Refer to 63 10 014 ADJUSTING FOG LAMPS .
