51 11 158 Replacing baseplate for license plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both front protective strips, refer to 51 11 170 REPLACING BODY MOLDING FOR LEFT OR RIGHT BUMPER

Release screws (1).

Unclip baseplate (2) towards front.

Fig 1: Removing Baseplate

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing version with Chromeline:

Release catches (1) and remove chrome trim from baseplate (2).

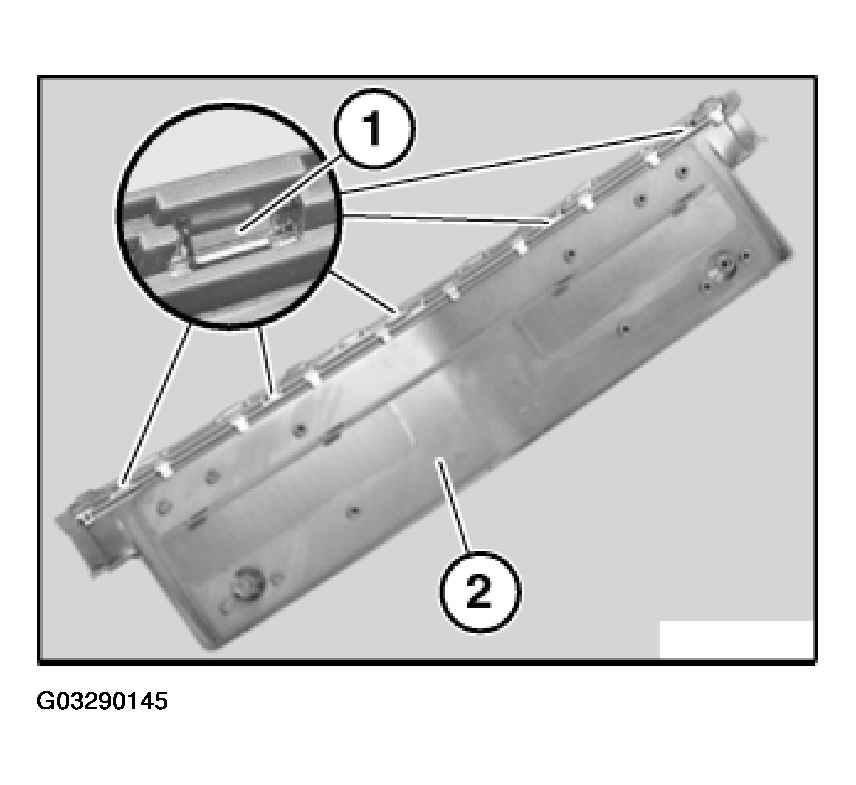

Fig 2: Removing Chrome Trim From Baseplate

Courtesy of BMW OF NORTH AMERICA, INC.
