51 47 140 Removing and installing / replacing panel for luggage compartment partition

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove both luggage compartment wheel arch trims, refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM and 51 47 161 REMOVING AND INSTALLING / REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

Version with ski bag:

Remove ski bag

Version with rear A/C system with cooler box:

Remove cooler box, refer to 64 11 475 REMOVING AND INSTALLING COMPLETE COOLER BOX

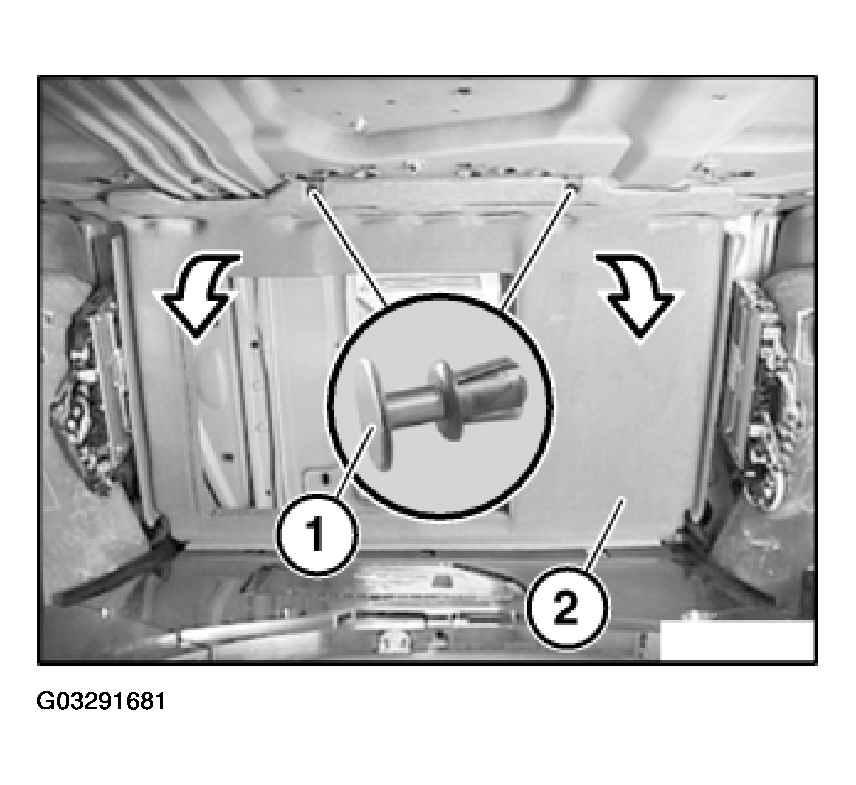

Release expansion rivets (1).

Fig 1: Removing Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove panel (2).

Version with ski bag or cooler box:

Installation:

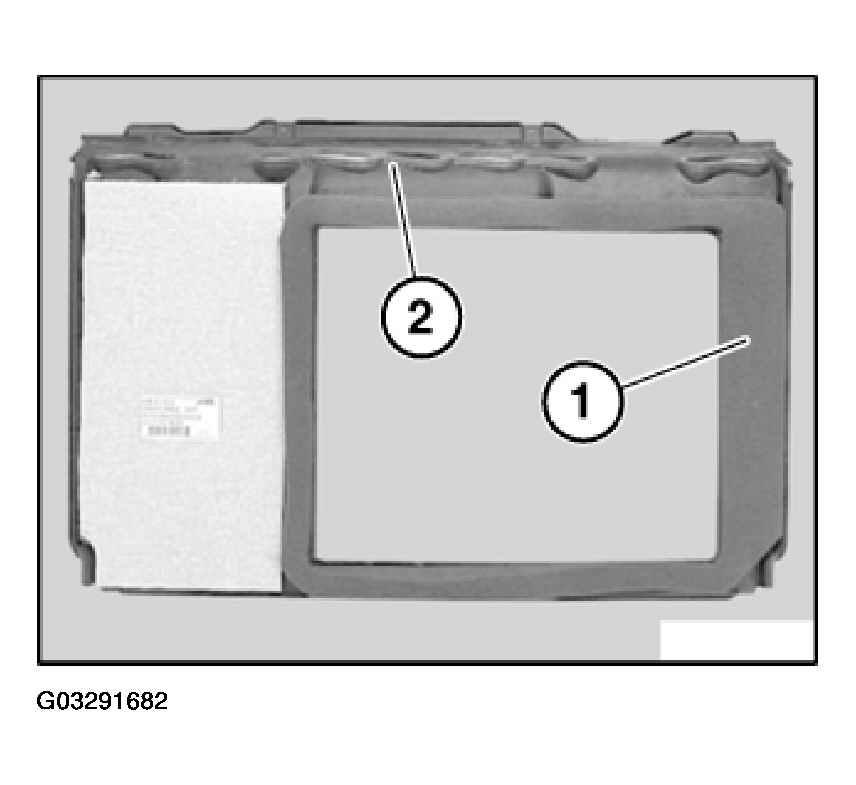

Foam strip (1) of panel (2) must not be damaged.

Fig 2: Identifying Foam Strip Of Panel

Courtesy of BMW OF NORTH AMERICA, INC.
