64 11 475 Removing and installing complete cooler box

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cover (optional extra: cooler box), refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST

Disconnect plug connection (1).

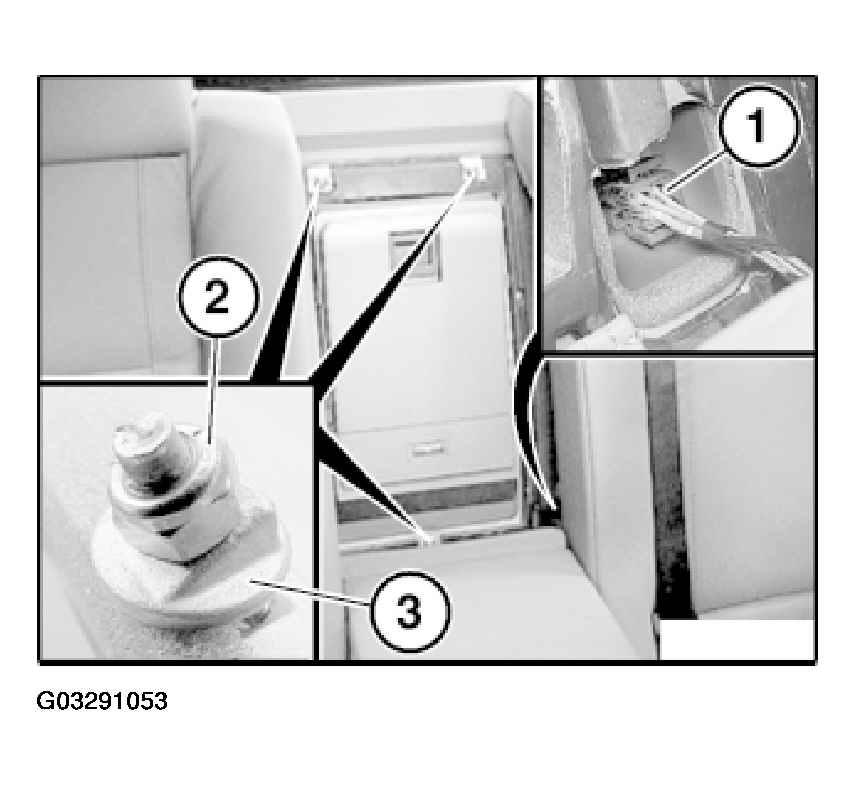

Fig 1: Removing Compensating Shims

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Remove compensating shims (3).

Installation:

Align cooler box centrally.

Make sure compensating shims (3) are in correct installation position.

Tighten nuts (2) to specified torque: Tightening torque 64 11 5AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Release screws (1).

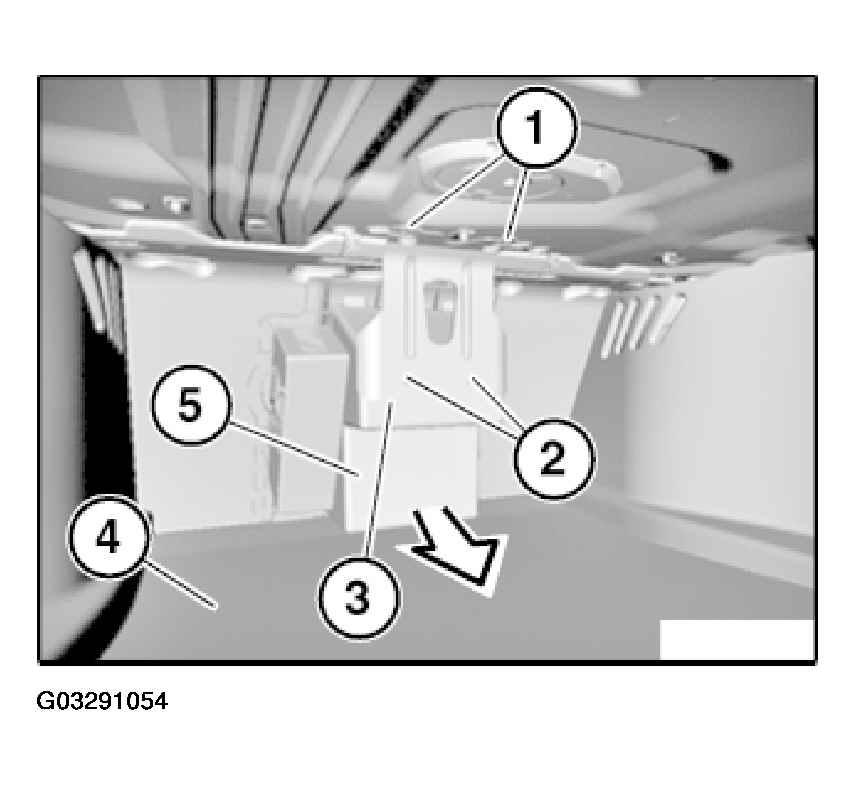

Fig 2: Pulling Out Cooler Box

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (2) and remove holder (3).

Gently pull floor inlay (4) towards rear.

Pull out cooler box (5) in direction of arrow.
