17 11 046 Removing and installing/replacing module carrier
WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
MEASUREMENT EVALUATION
| Work step | Note: |
|---|---|
| Remove design cover. | Refer to Removing design cover (N62) . |
| Remove fan clutch. | Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N62) . |
| Remove fan cowl. | Refer to 17 11 031 Replacing fan cowl (N62) . |
| Drain coolant. | Refer to 17 00 005 Draining and adding coolant (N62) . |
| Remove radiator. | Refer to 17 11 000 Removing and installing radiator (N62) . |
| Remove auxiliary fan. | Refer to 17 40 000 Removing and installing/replacing complete auxiliary fan (N62) . |
| Draw off fluid from power steering. Unlock hydraulic lines on cooling loop and disconnect. |
Installation: Top up hydraulic fluid. Bleed power steering. Refer to BLEEDING POWER STEERING SYSTEM . Check fluid level in power steering fluid reservoir; top up if necessary. |
| Lift module carrier out of rubber mounts and push approx. 5 cm towards rear. | Installation: Rubber mounts fall out easily, ensure correct installation position. |

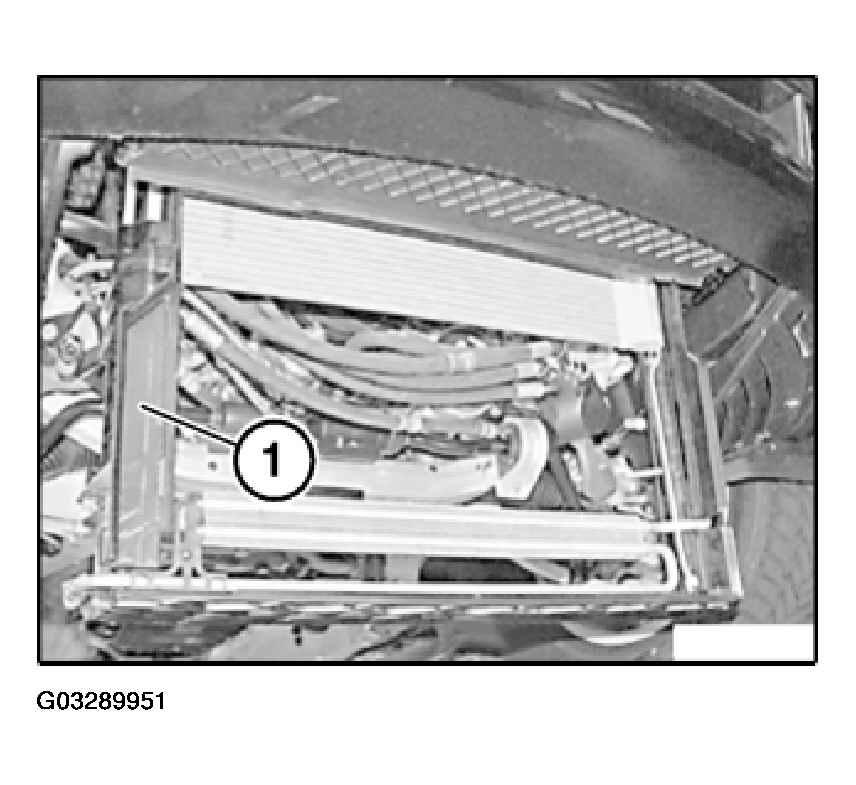

Remove module carrier (1) towards bottom.
NOTE:
Secure A/C condenser against damage and against falling down.
When replacing module carrier:
Convert power steering cooling loop.
