Removing design cover (N62)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Turn quick-release couplings through 90°.

Remove design cover (1) on left.

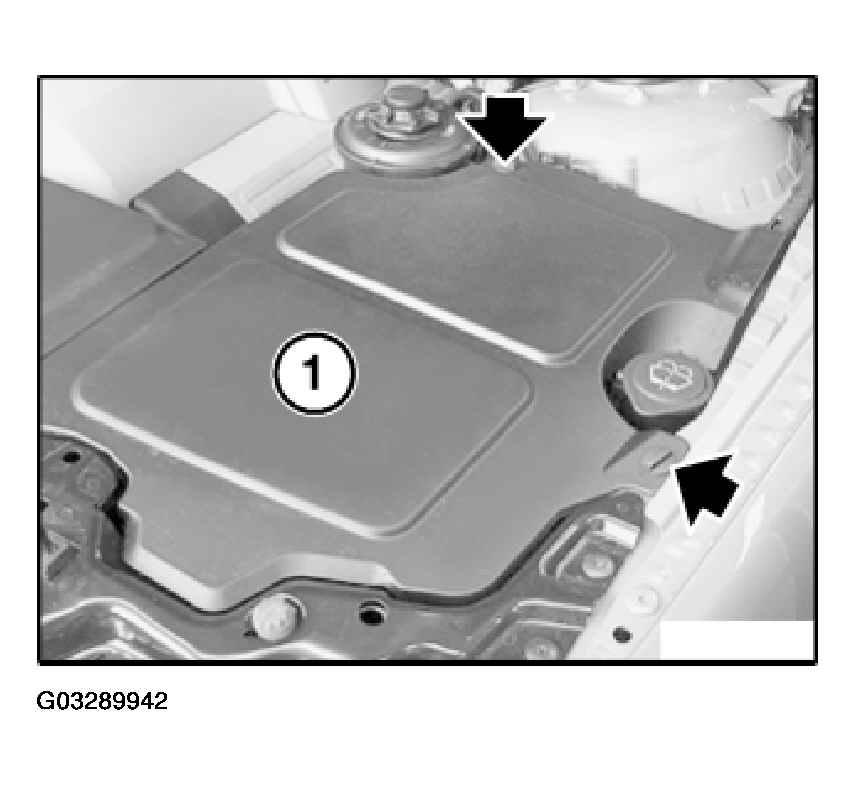

Fig 1: Removing Design Cover On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove design cover (1) in middle.

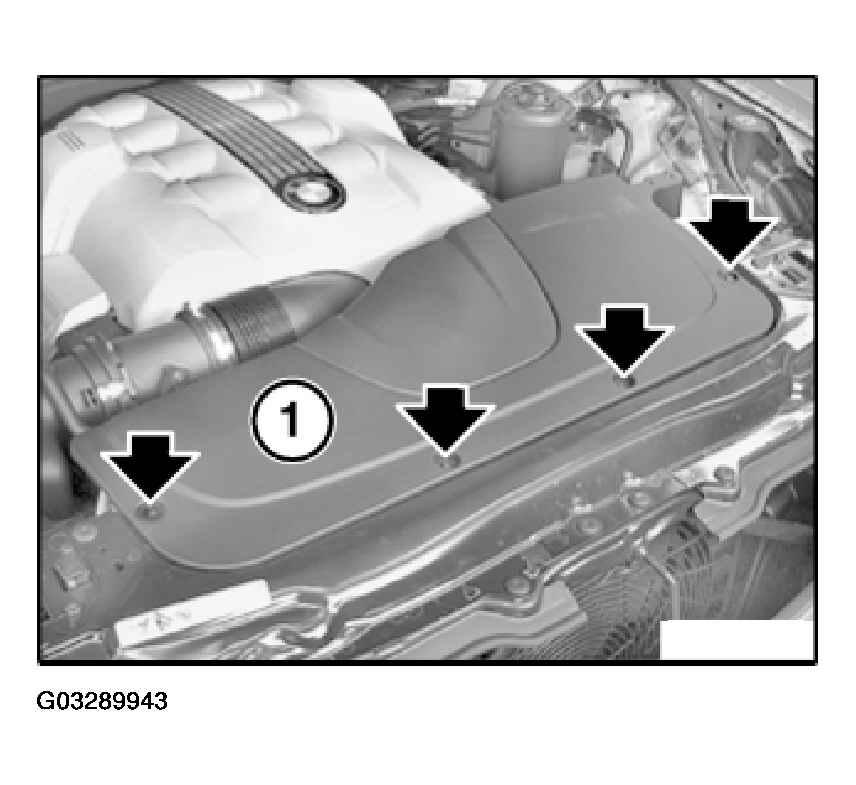

Fig 2: Removing Design Cover In Middle

Courtesy of BMW OF NORTH AMERICA, INC.
