51 16 240 Removing and installing rear storage compartment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Panel For Rear Storage Box .
Remove trim for rear speaker. See 65 12 020 REMOVING AND INSTALLING/REPLACING SPEAKER .

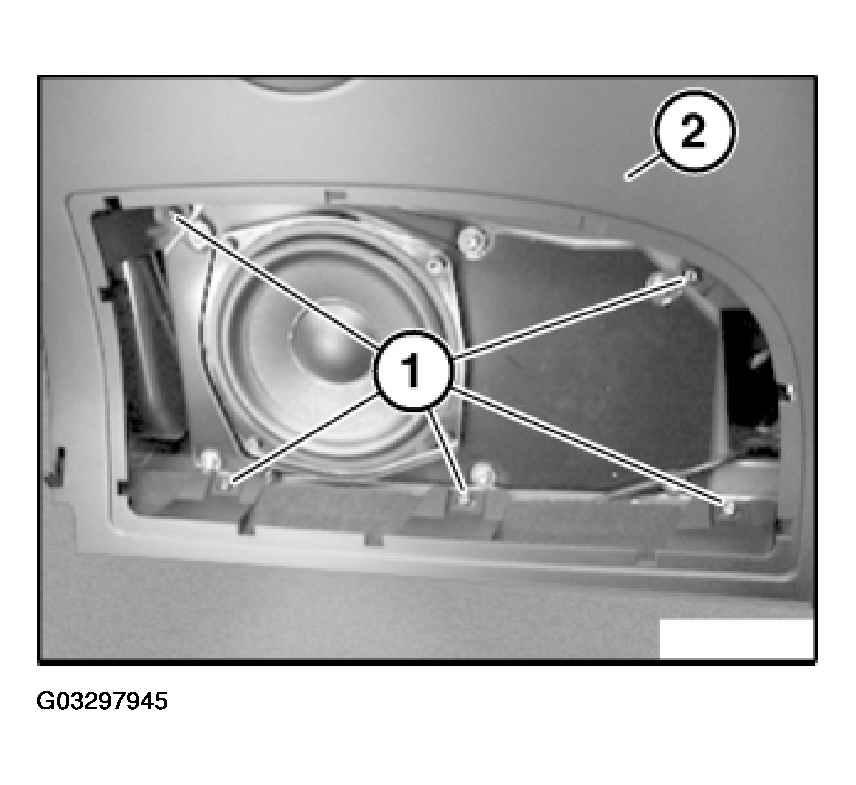

Release screws (1) on side trim (2).

Fig 1: Releasing Screws On Side Trim

G03297945

Courtesy of BMW OF NORTH AMERICA, INC.

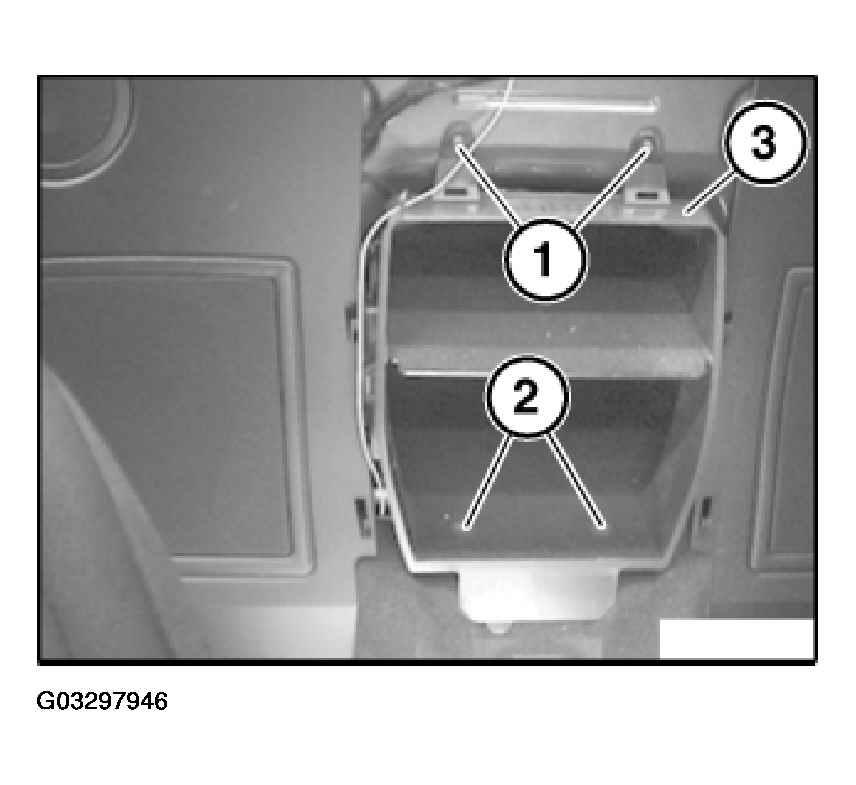

Loosen screws (1).

Lever out cover caps (2) and release screws underneath.

3 Storage box

Fig 2: Loosening Screws For Storage Box

G03297946

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out side trims (4) and pull out storage box (3).

Installation:

Lay emergency release cable (1) correctly in guide (2) of storage box (3).

Fig 3: Releasing Cable Correctly In Guide Of Storage Box

G03297947

Courtesy of BMW OF NORTH AMERICA, INC.

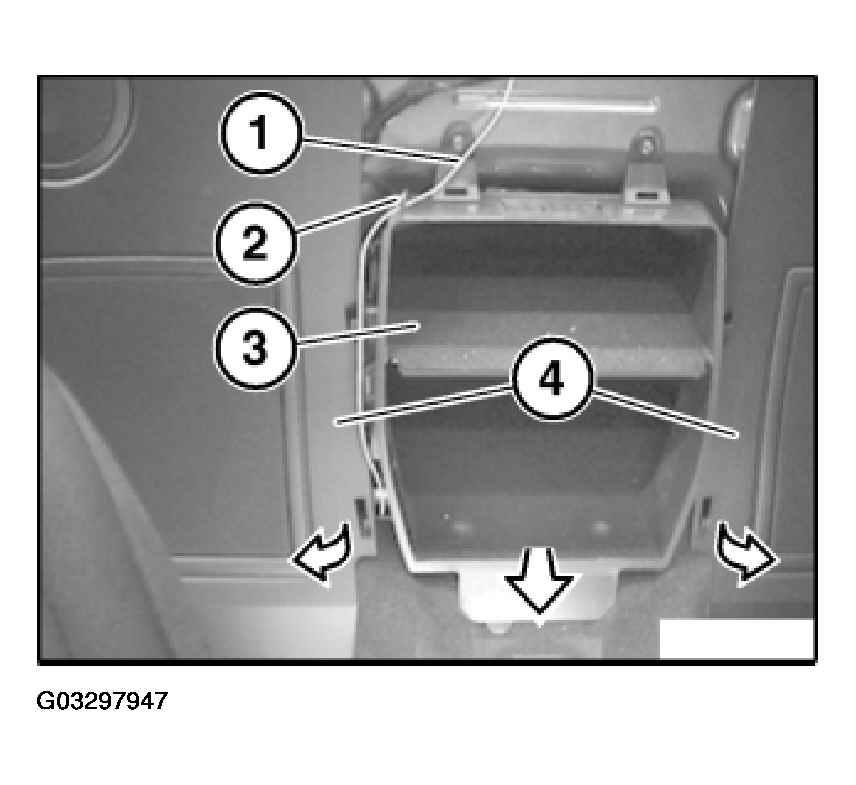

Feed out emergency release cable (1) and remove storage box (3).

Installation:

Lay emergency release cable (1) correctly in guides (2) of storage box (3).

Fig 4: Releasing Cable And Removing Storage Box

G03297948

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

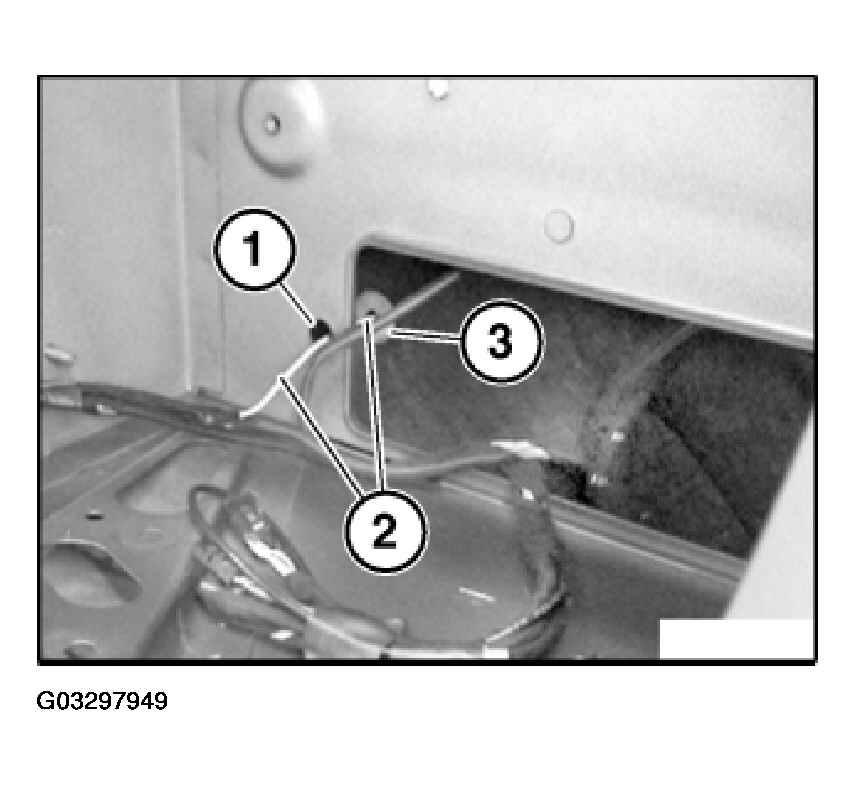

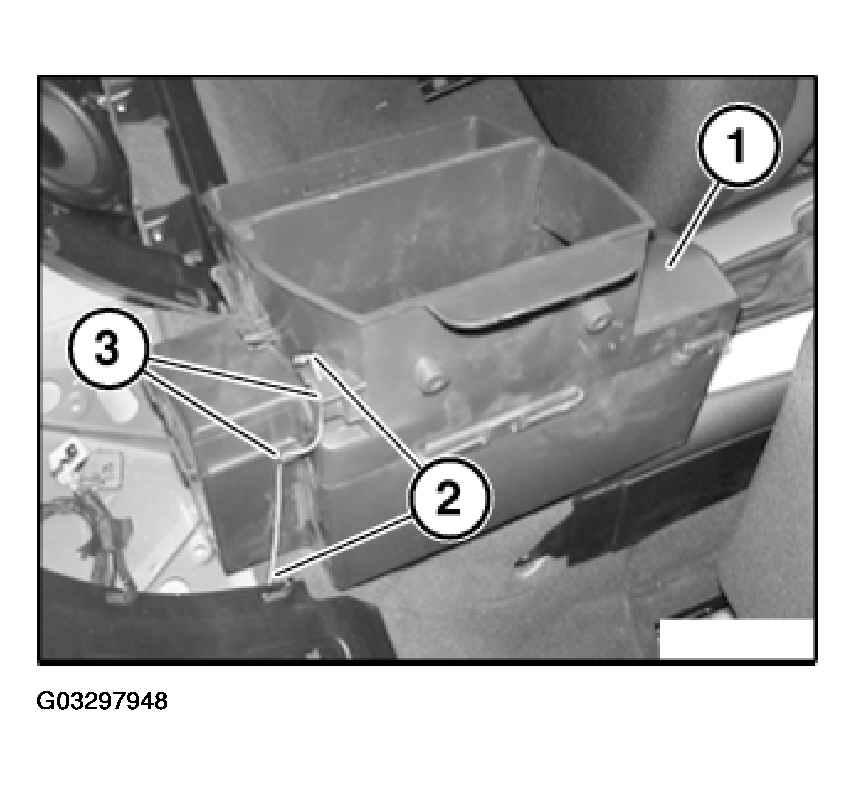

Lay emergency release cable (2) correctly in bore (1) and panel (3) for luggage compartment partition.

Fig 5: Releasing Cable Correctly In Bore And Panel For Luggage Compartment Partition

G03297949

Courtesy of BMW OF NORTH AMERICA, INC.
