65 12 020 Removing And Installing/Replacing Speaker (Woofer In Side Trim Panel)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Lever out rear speaker trim (1) with special tool 00 9 323 in area (2).

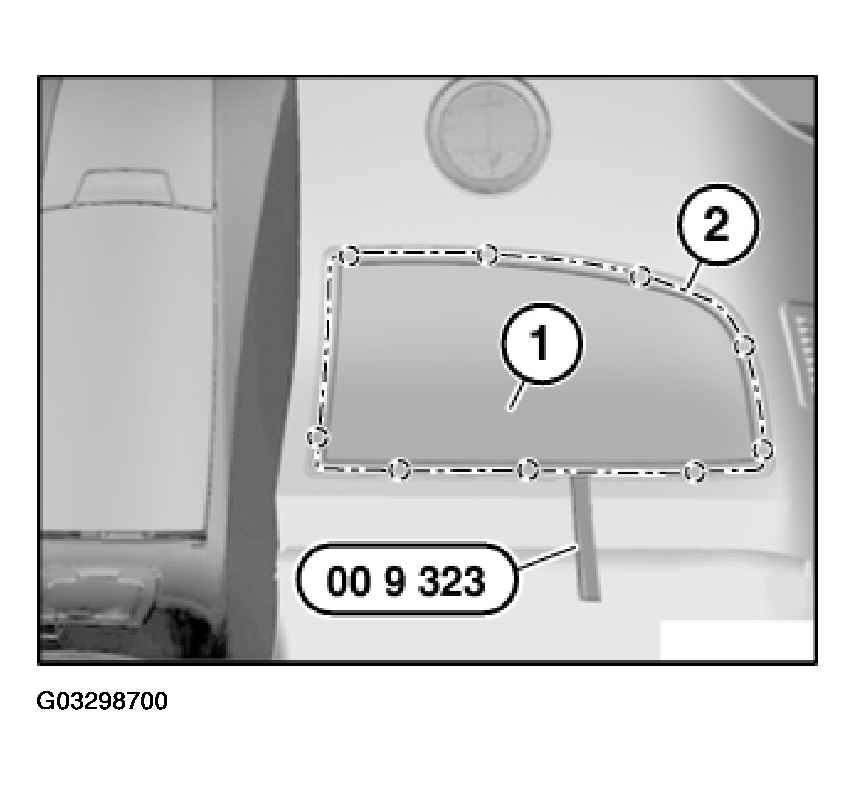

Fig 1: Removing Out Rear Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches in area (1) must not be damaged.

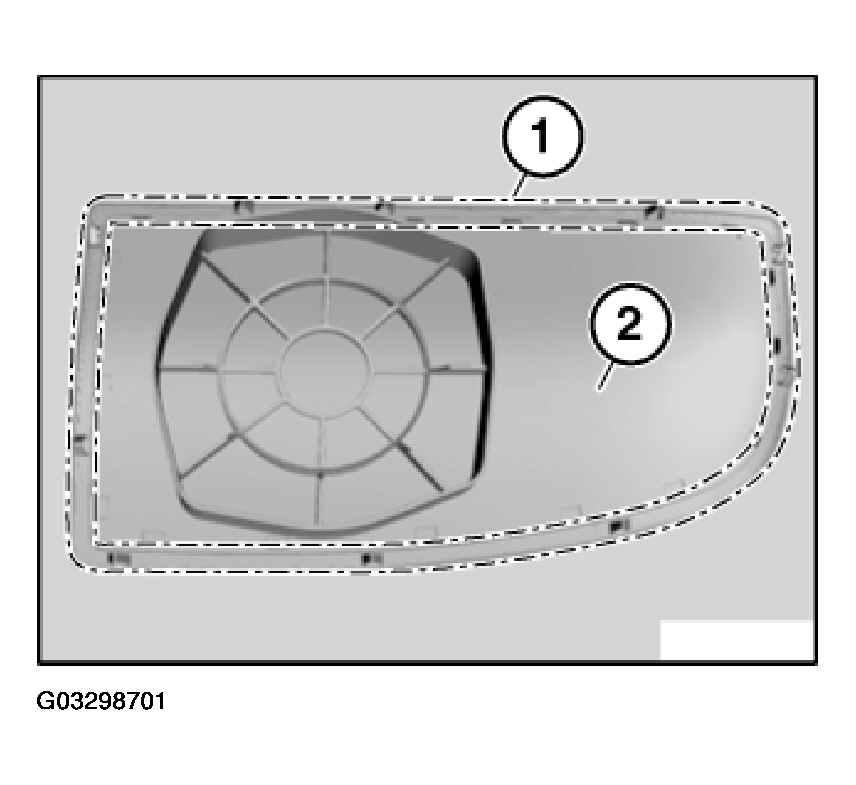

Fig 2: Identifying Catches And Rear Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rear speaker trim (2) is correctly seated.

Release screws (1).

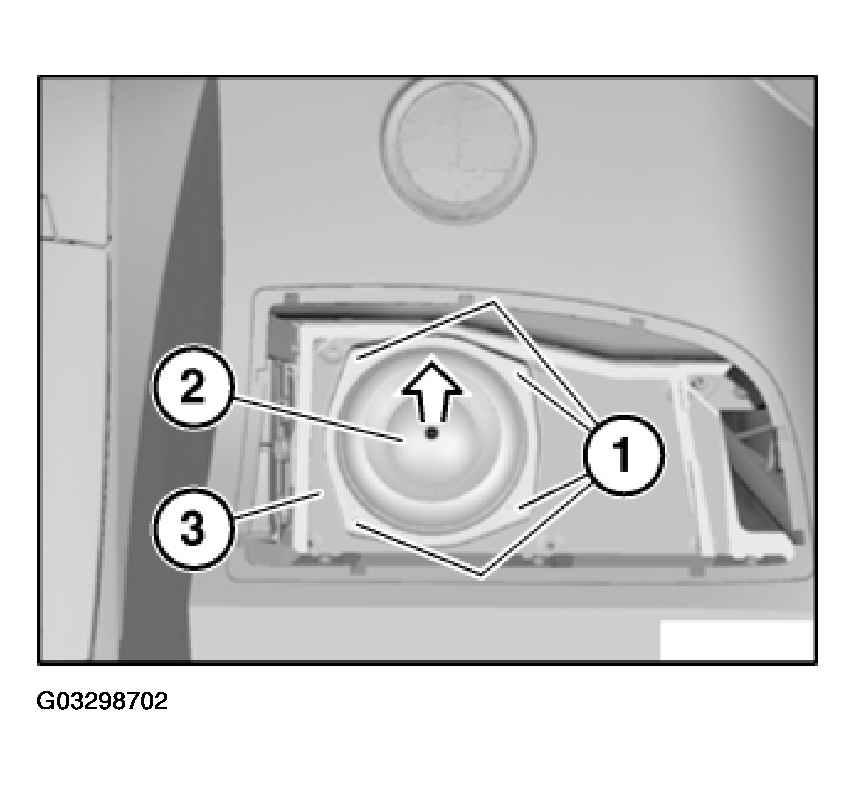

Fig 3: Removing Rear Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear speaker (2) in direction of arrow slightly from plate (3).

Unlock plug connection behind and disconnect.

Remove rear speaker (2).
