67 66 010 Removing And Installing/Replacing Lumbar Support Drive Mechanism On Front Seat, Left Or Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC) and 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

Cut through cable tie (1).

Pull drive unit for lumbar support (2) with jacket slightly out of backrest frame (3).

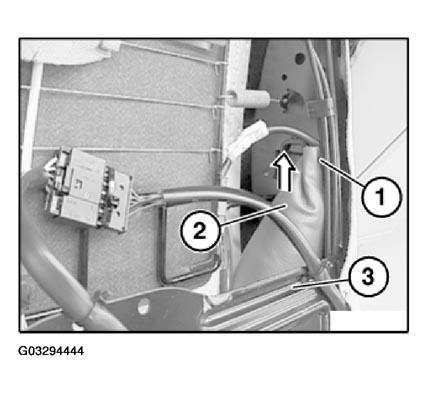

Fig 1: Locating Drive Unit For Lumbar Support With Jacket

G03294444

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through cable tie (1) on jacket of drive unit for lumbar support (2).

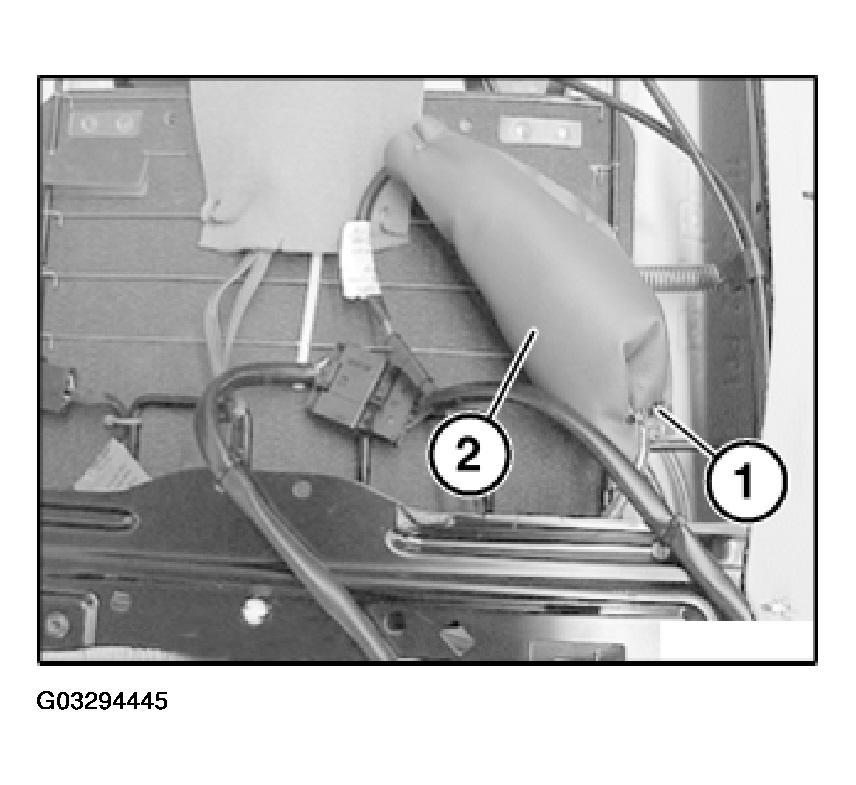

Fig 2: Identifying Cable Tie On Jacket Of Drive Unit

G03294445

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach hose (2).

NOTE: If firmly seated, gently heat hose (2) on drive unit for lumbar support (3).

Installation:

Make sure hose (2) is laid without kinks.

Remove drive unit for lumbar support (3).

Replacement:

Pull drive unit for lumbar support (3) in direction of arrow out of jacket (4).

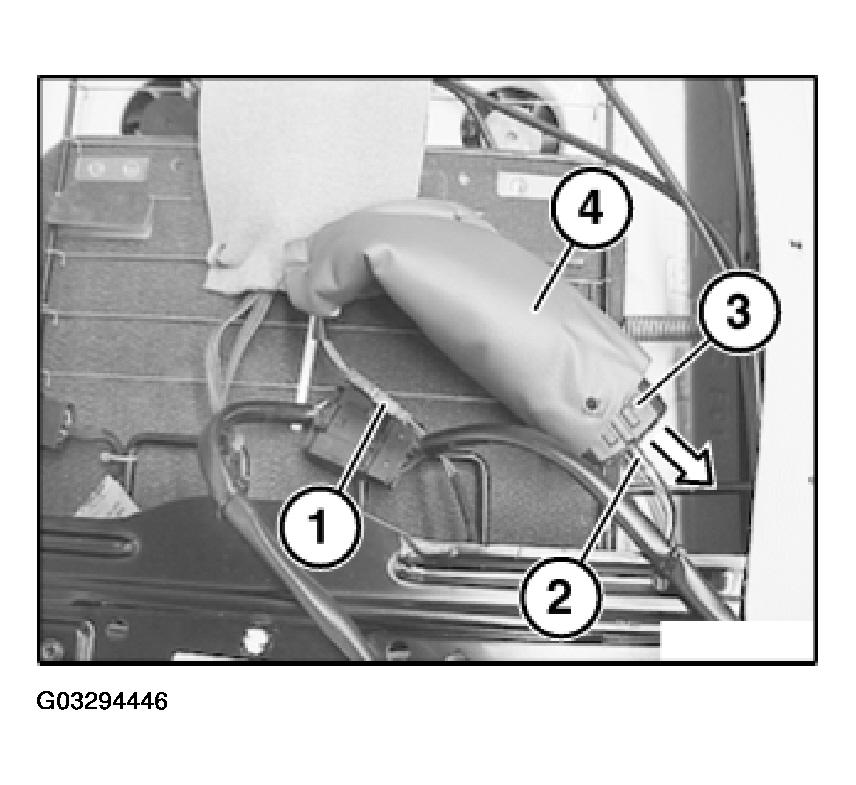

Fig 3: View Of Drive Unit For Lumbar Support

G03294446

Courtesy of BMW OF NORTH AMERICA, INC.
