52 17 205 Removing And Installing/Replacing Both Rear Panels On Left Or Right Front Seat Backrest (Comfort)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Rear panel upper section:

Grip between rear panel and backrest cover on door side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull upper rear panel up out of lower guides.

Fig 1: Seat Panel Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Retainer.
Guide.
Upper rear panel.

Fig 2: Retainer, Guide And Upper Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Rear panel upper section:

Grip between rear panel and backrest cover on door side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull lower rear panel up out of lower guides

Fig 3: Rear Panel Removal Directions

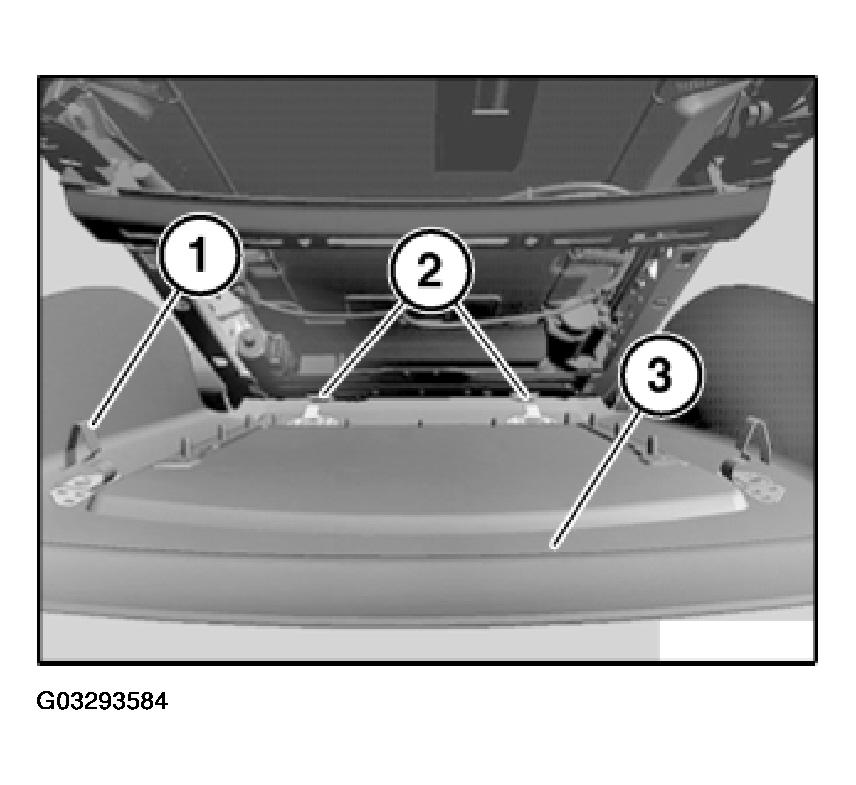

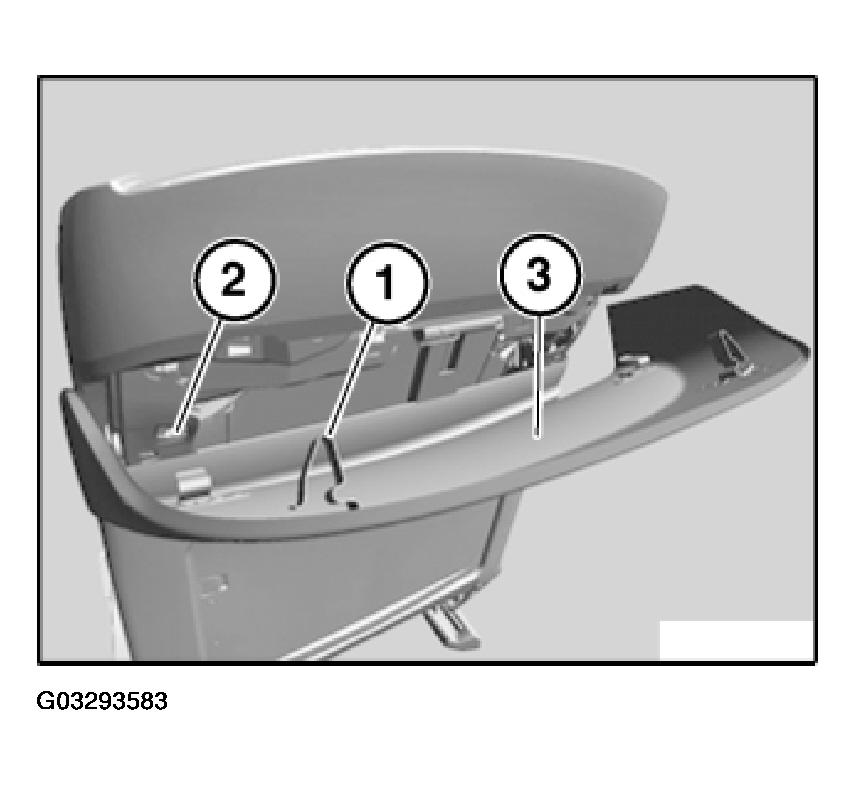

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).

Fig 4: Springs, Lower Rear Panel And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
