52 14 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Electric)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Grip between rear panel and backrest cover on door side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull rear panel up out of lower guides.

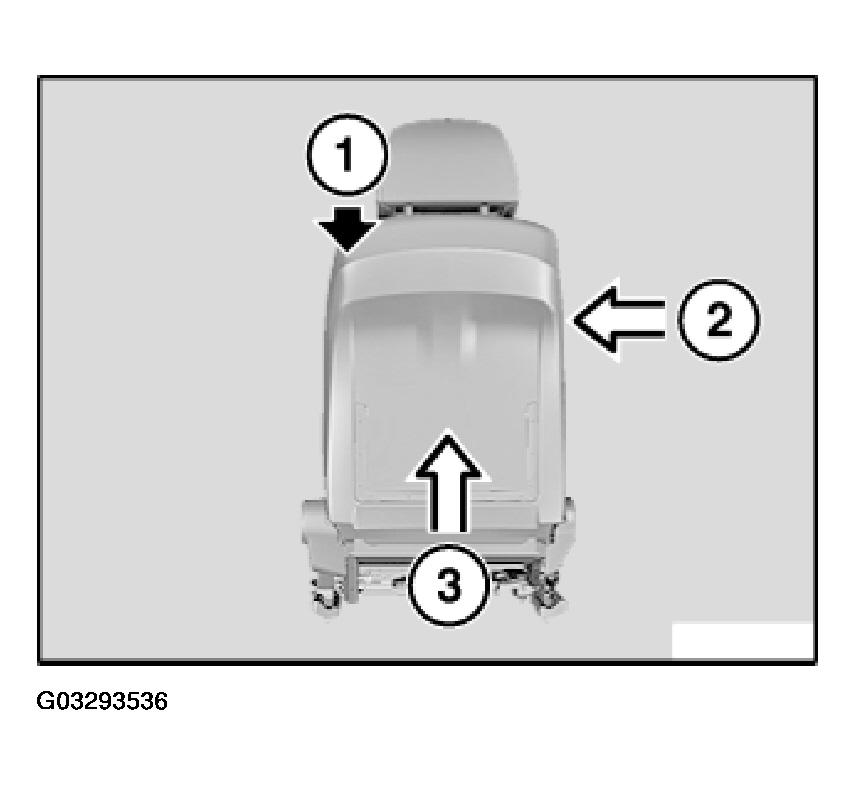

Fig 1: Seat Panel Removal Directions
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rear panel and clips must not be damaged.

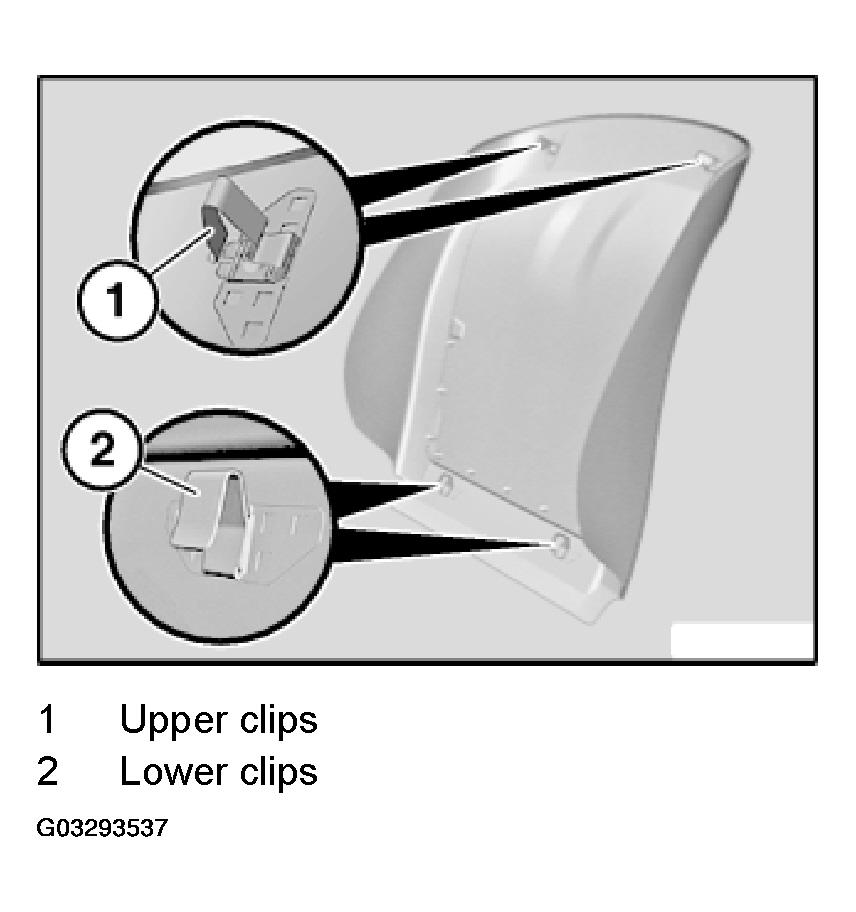

Fig 2: Upper And Lower Clips

Courtesy of BMW OF NORTH AMERICA, INC.
