67 31 630 Removing And Installing/Replacing Drive For Backrest Tilt Adjustment (Comfort Seats In Rear Compartment)

Necessary Preliminary Tasks:

• Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
• Remove cover for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

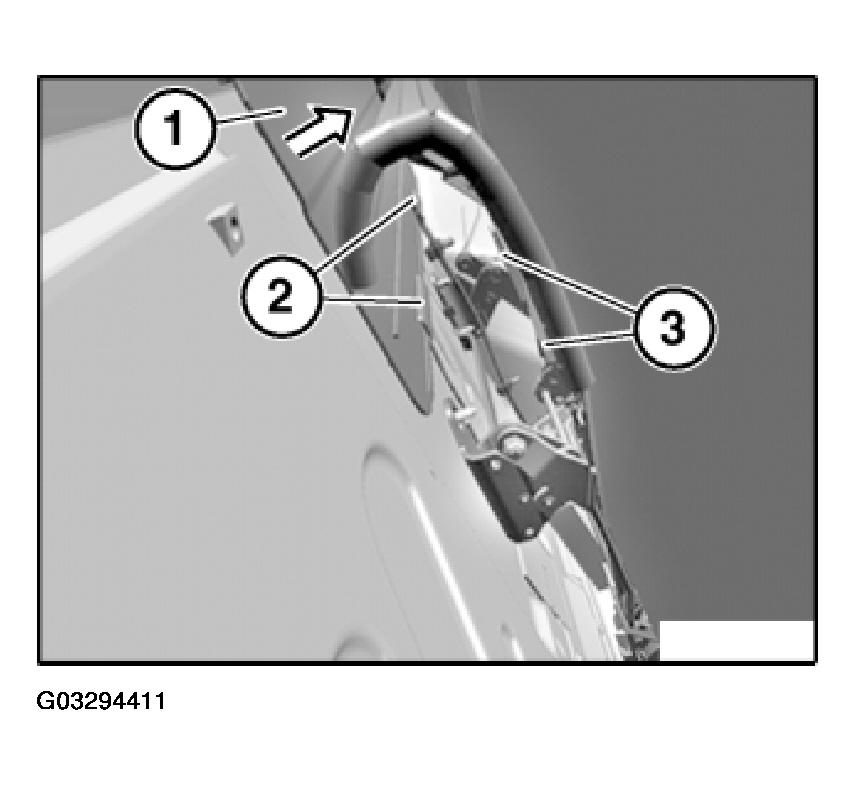

Detach cover (1) in direction of arrow from Velcro-type fastener behind, pull out from guides (2) and tilt forwards.

Unlock catches (3) and remove cover (1) towards top.

Fig 1: Removing Cover For Armrest From Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .

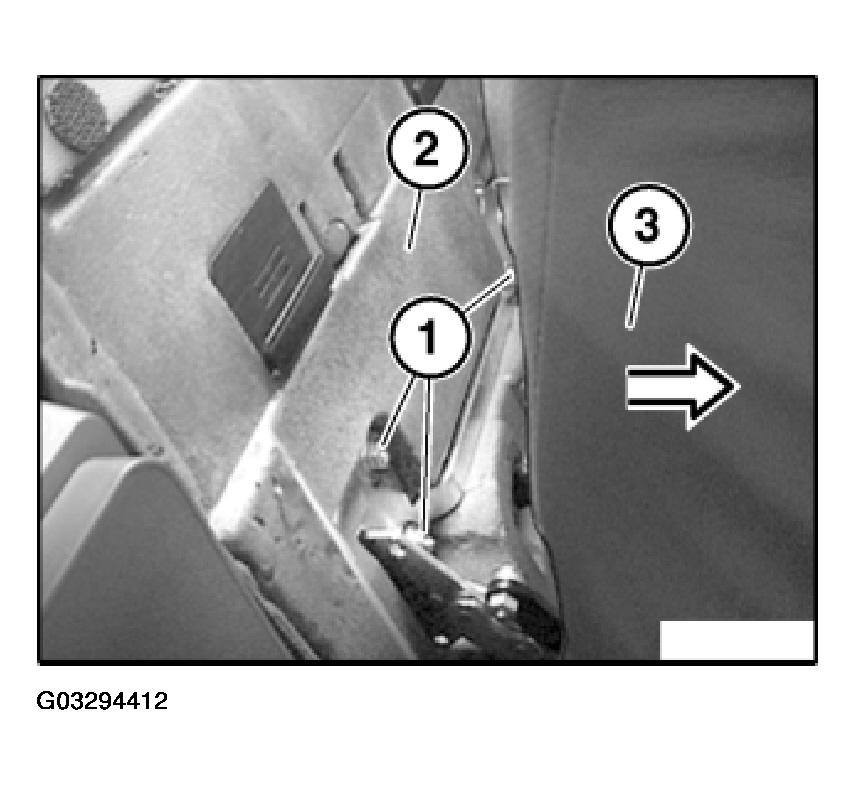

Release screws (1) on luggage compartment partition (2).

Installation:

Tightening torque, refer to 52 25 1AZ in SEATS - TIGHTENING TORQUES .

Move rear seat backrest (3) forward slightly.

Fig 2: Locating Screws On Luggage Compartment Partition

Courtesy of BMW OF NORTH AMERICA, INC.

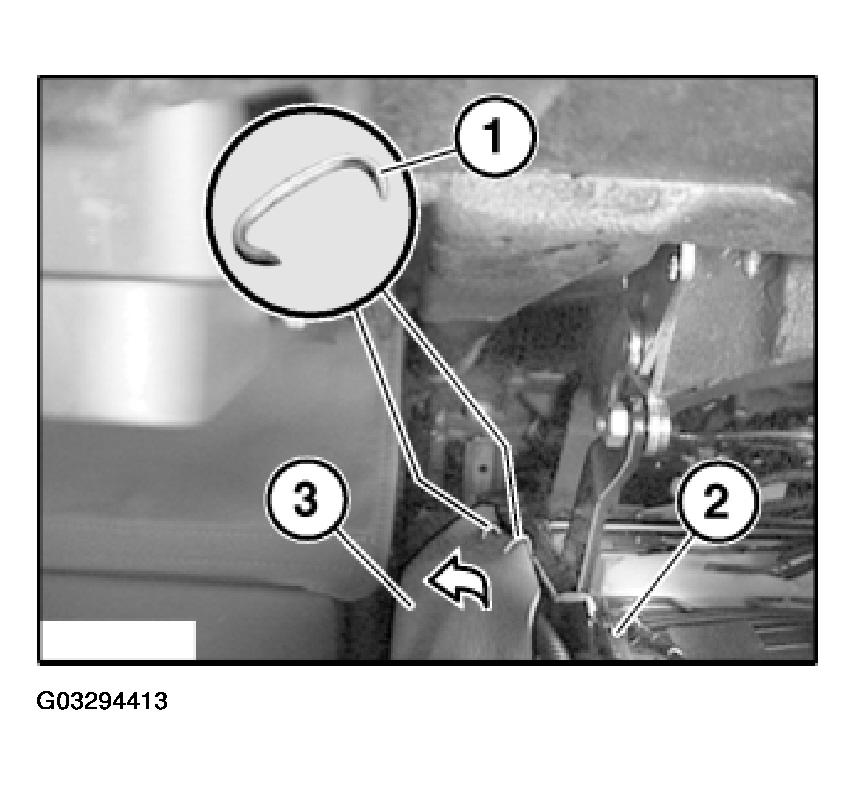

Detach retainers (1) on rear seat backrest (2).

Turn back backrest cover (3) in direction of arrow slightly.

Fig 3: View Of Retainers On Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

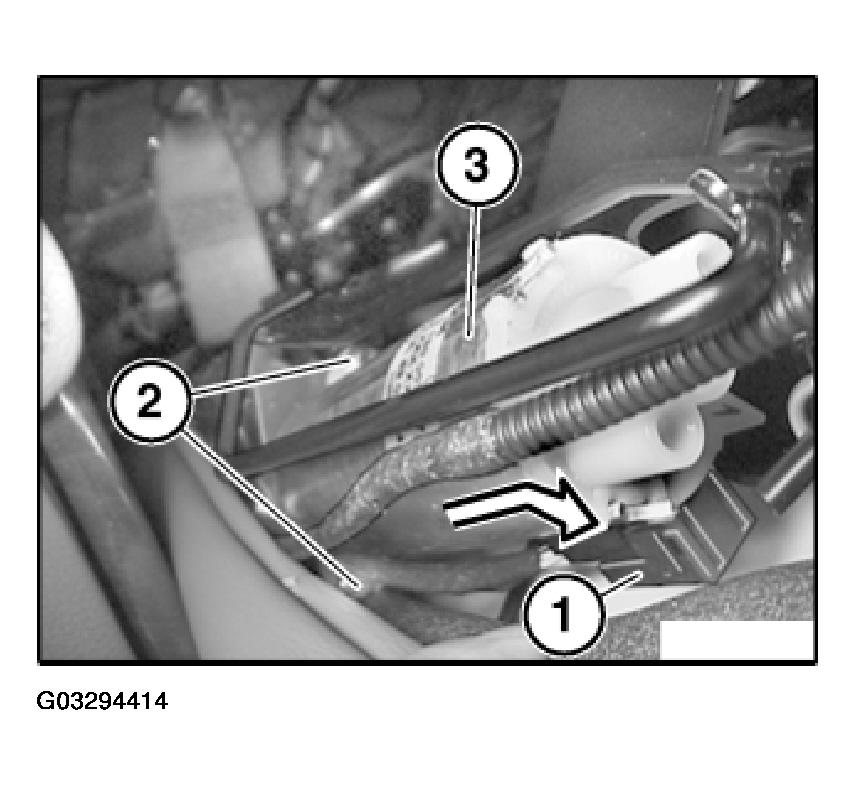

Disconnect plug connection (1).

Release screws (2).

Carefully feed out drive for backrest tilt adjustment (3) in direction of arrow and remove.

Fig 4: Identifying Drive For Backrest Tilt Adjustment Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

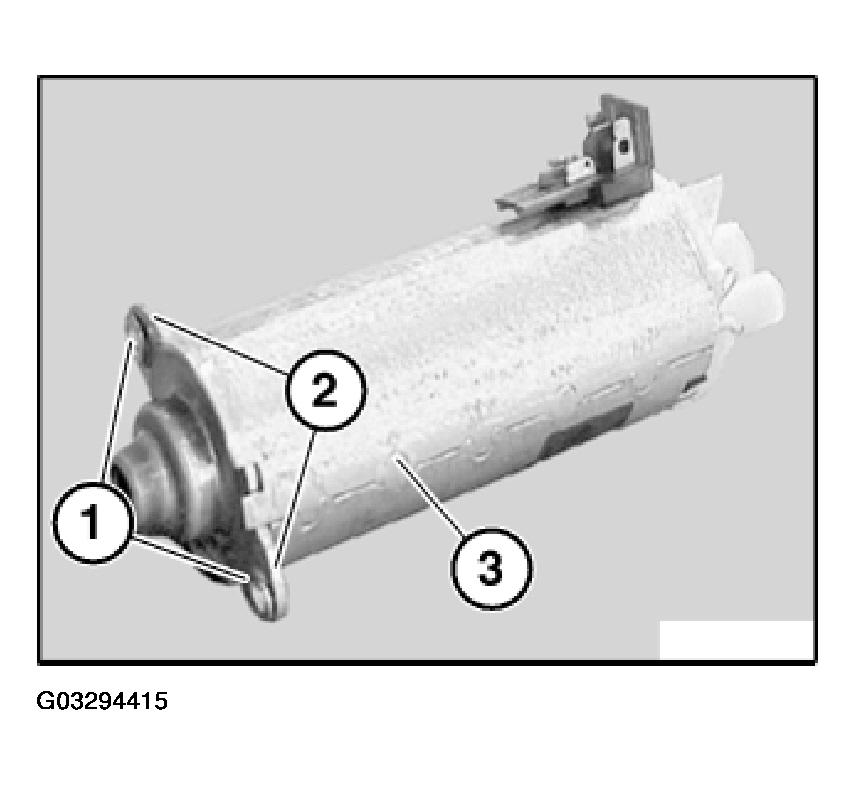

Make sure spacer washers (1) are correctly seated.

If necessary, fix spacer washers (1) in place on metal tabs (2) of drive for backrest tilt adjustment (3).

Fig 5: Aligning Spacer Washers On Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize drive unit for backrest angle adjustment. Refer to 67 31 ... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES  .
