67 31 530 Removing And Installing/Replacing Drive Unit For Backrest Angle Adjustment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) and 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC) and 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .
Remove covers on front seat. Refer to 52 14 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (NORMAL/ELECTRIC) and 52 14 041 REMOVING AND INSTALLING INNER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Unhook backrest cover (1) on left and right on backrest frame (2).

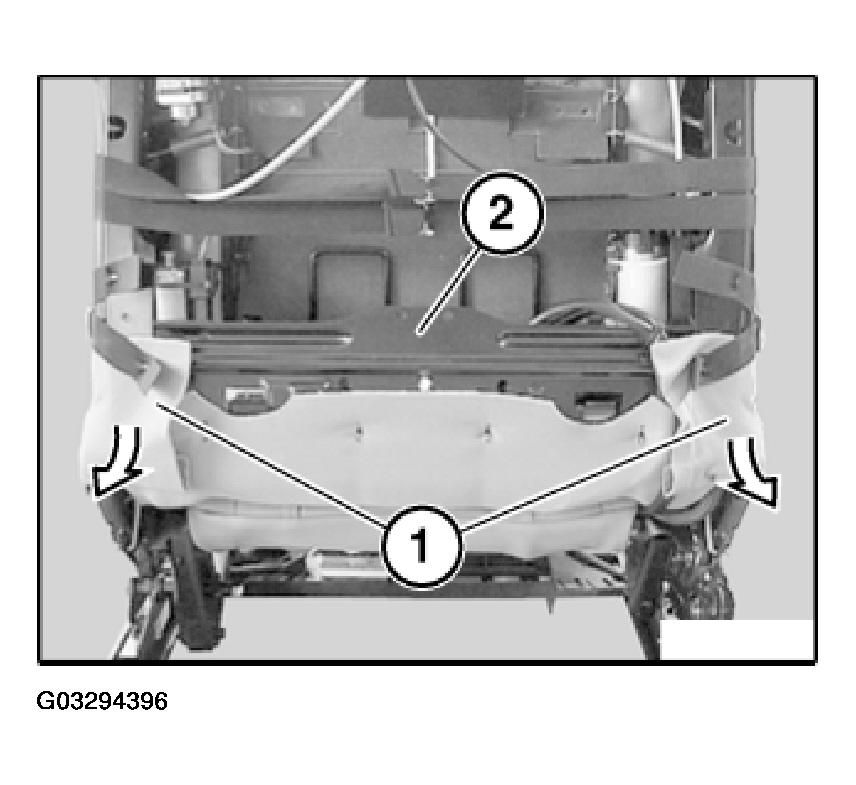

Fig 1: View Of Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

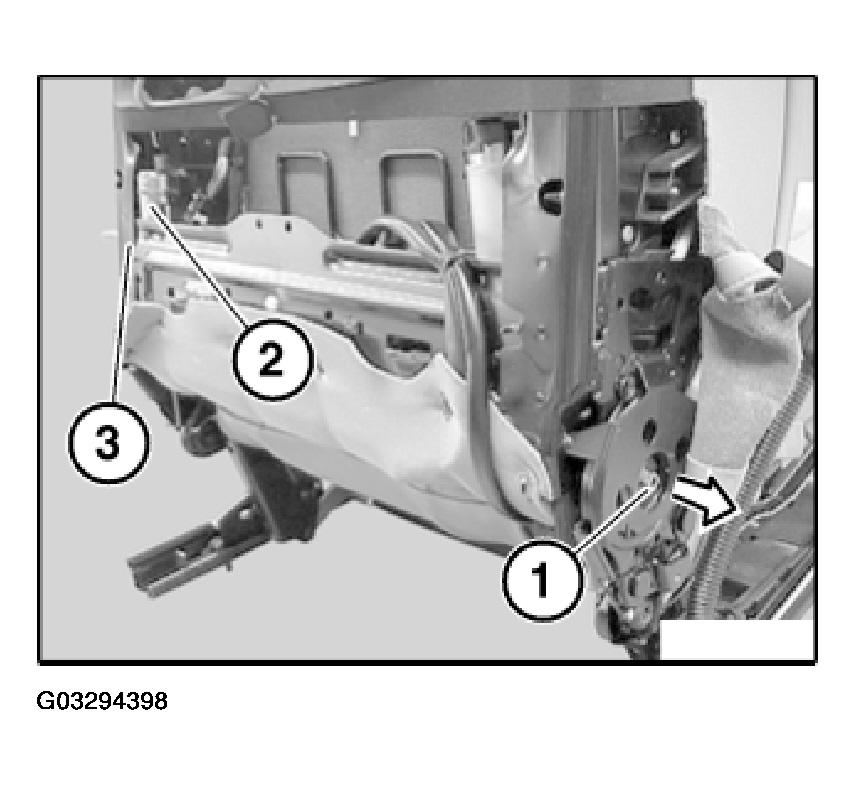

Remove metal retaining ring (1) in direction of arrow from drive rod (2).

Installation:

Always replace metal retaining ring (1).

Make sure metal retaining ring (1) is correctly seated.

Release screw (3).

Disconnect plug connection (4).

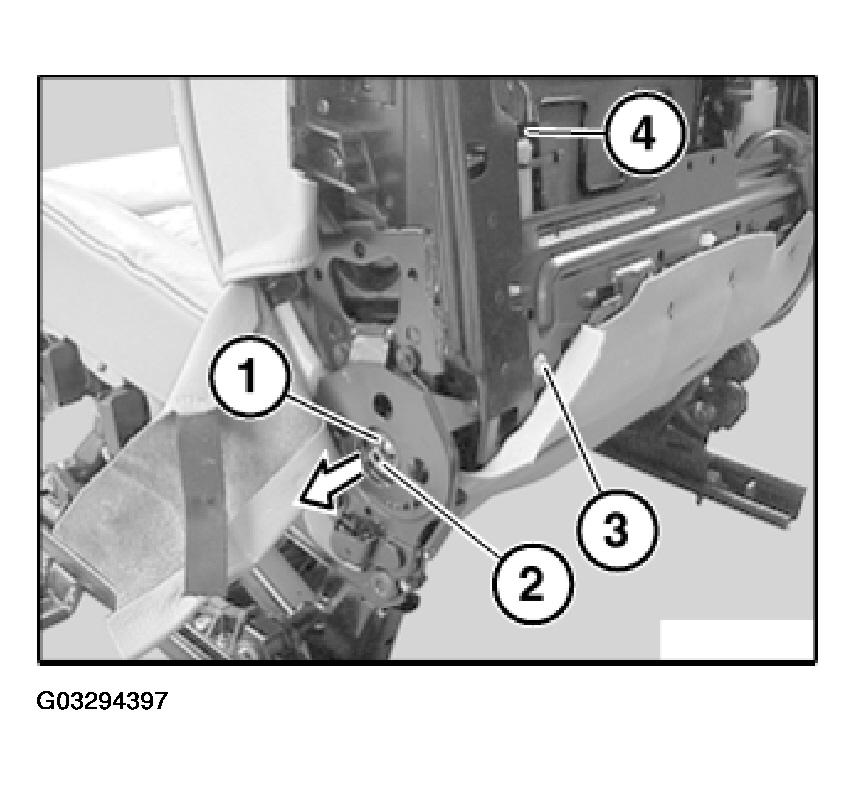

Fig 2: Locating Metal Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out drive rod (1) until drive unit for backrest angle adjustment (2) is free.

Installation:

Make sure drive rod (1) is correctly seated in drive unit for backrest angle adjustment (2).

Feed drive unit for backrest angle adjustment (2) out of backrest frame (3) and remove.

Fig 3: View Of Drive Rod For Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Comfort Seat Only:

Replacement:

Initialize drive unit for backrest angle adjustment. Refer to 67 31 ... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
