67 32 660 Replacing Fan For Backrest On Rear Seat (Comfort Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
Remove cover for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

Detach cover (1) in direction of arrow from Velcro-type fastener behind, pull out from guides (2) and tilt forwards.

Unlock catches (3) and remove cover (1) towards top.

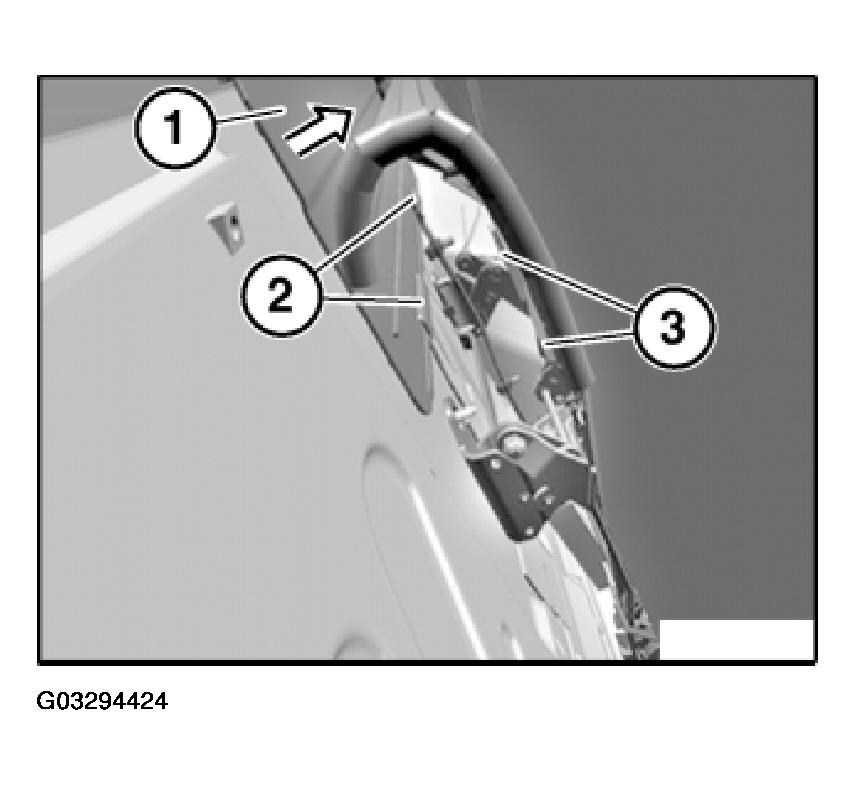

Fig 1: Removing Cover From Guides

G03294424

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .

Detach retainers (1) on rear seat backrest (2). Fold felt (3) upwards slightly.

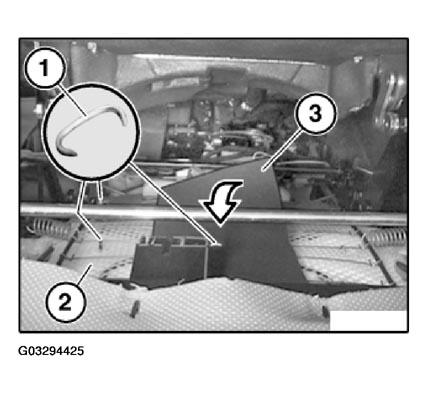

Fig 2: Detaching Retainers On Rear Seat Backrest

G03294425

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on luggage compartment partition (2).

Move rear seat backrest (3) forward slightly.

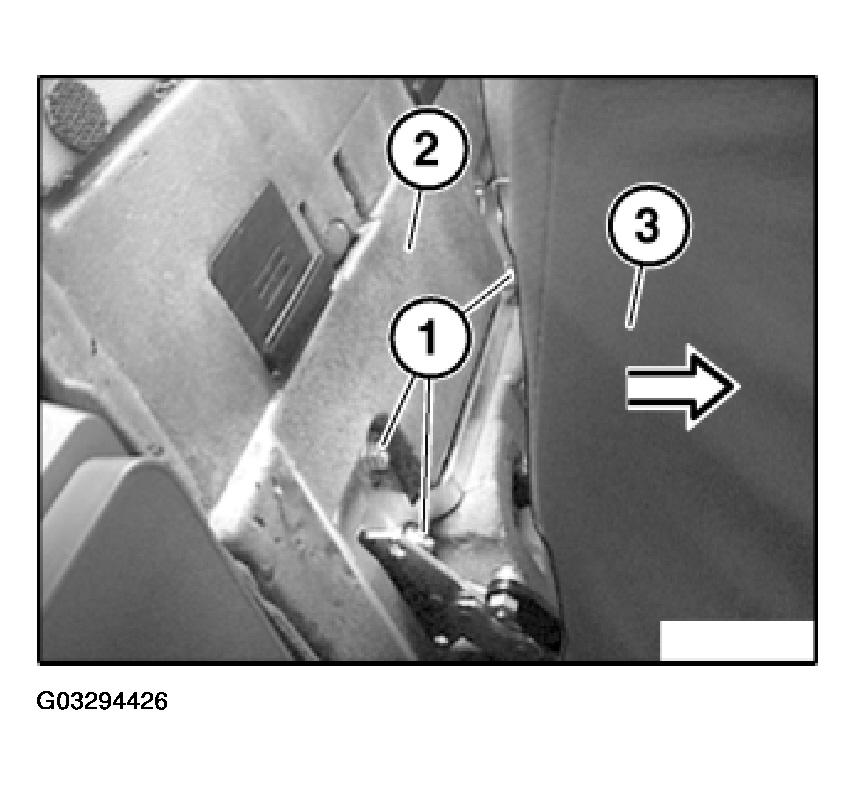

Fig 3: Locating Screws On Luggage Compartment Partition

G03294426

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

If necessary, cut through cable tie (2).

Pull dividing net (3) upwards slightly.

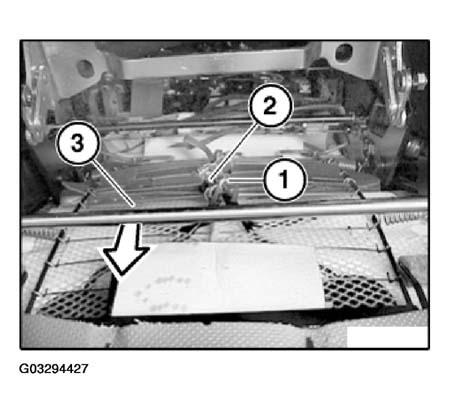

Fig 4: Disconnecting Fan Plug Connection

G03294427

Courtesy of BMW OF NORTH AMERICA, INC.

Feed fan for backrest (1) as illustrated out of backrest and pull out plug (2) through opening in dividing net (3).

Remove fan for backrest (1).

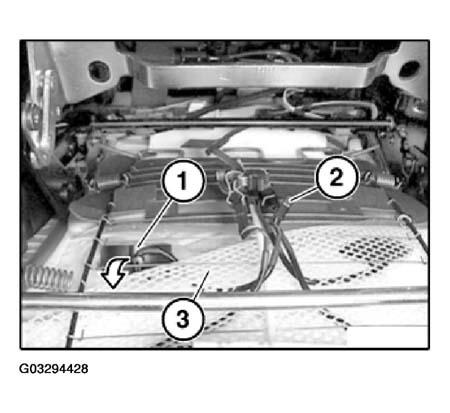

Fig 5: View Of Fan For Backrest

G03294428

Courtesy of BMW OF NORTH AMERICA, INC.
