67 33 510 Removing And Installing/Replacing Servolock Drive
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove trim for tail panel at top. Refer to 51 46 050 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PANEL AT TOP .

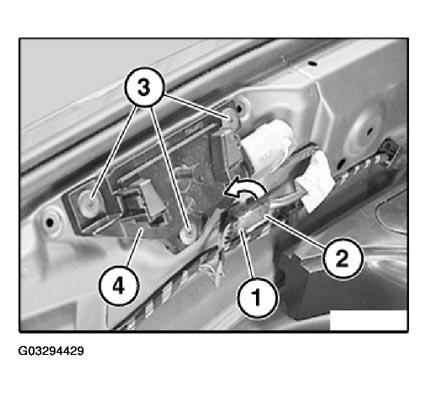

Unfasten plug connection (1) and disconnect.
Turn plug housing (2) approx. 45° in direction of arrow and unclip.
Release screws (3) and remove servolock drive (4).
Installation:
- Adjust rear lid lock. Refer to 51 24 004 ADJUSTING REAR LID LOCK (LOWER SECTION OF REAR LID LOCK) .
