51 46 050 Removing And Installing/Replacing Trim For Rear Panel At Top

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Remove cover (1) for spare wheel.

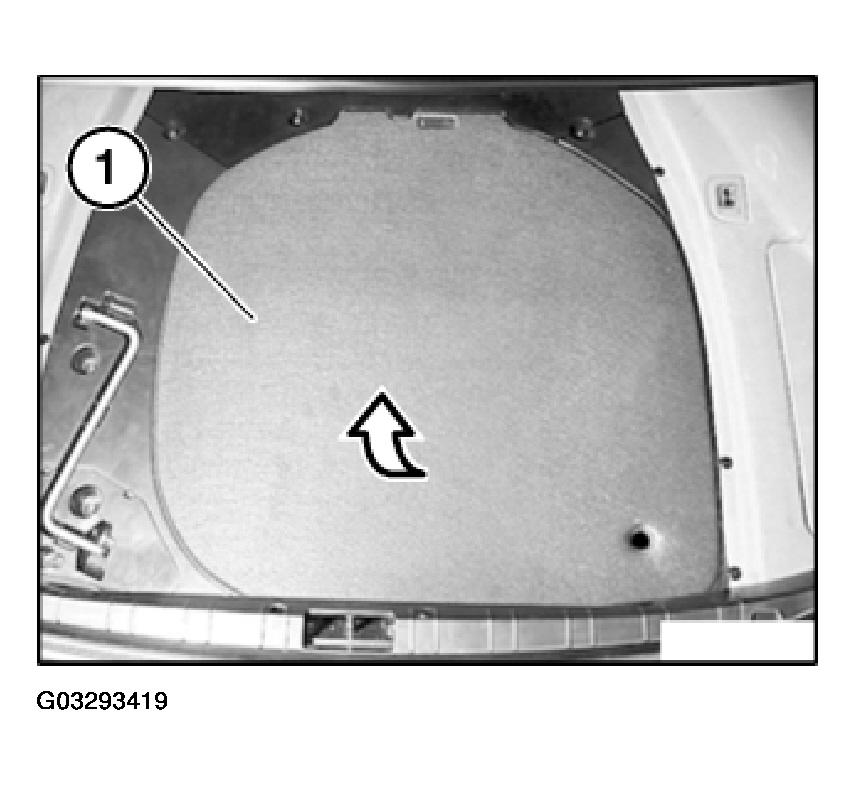

Fig 1: Removing Spare Wheel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1).

Lever out trim (2) for rear apron inwards/upwards.

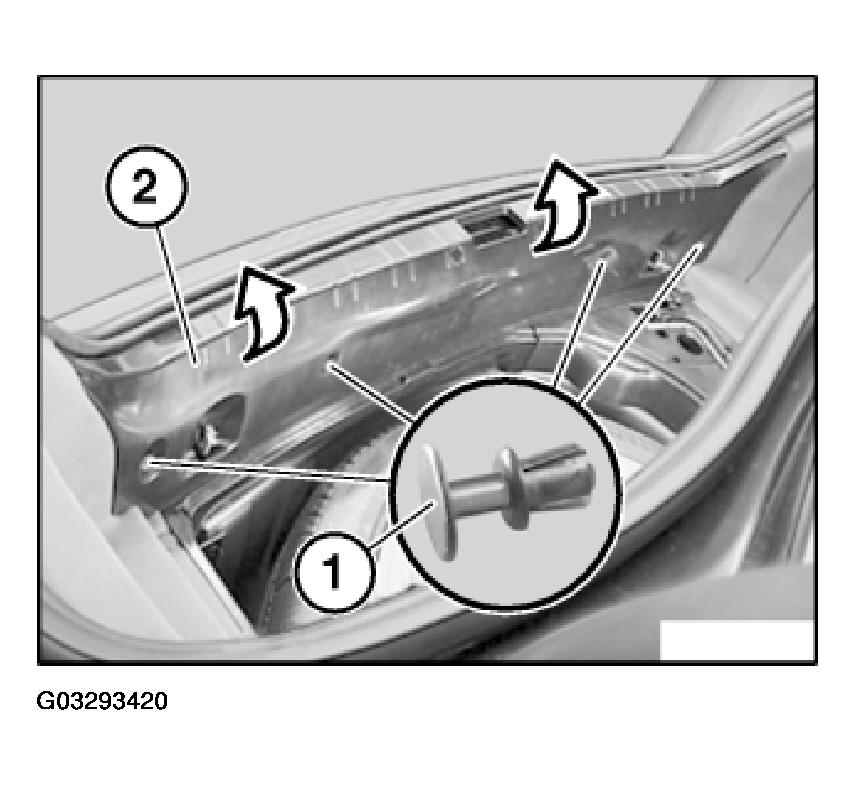

Fig 2: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) of trim (2) must not be damaged.

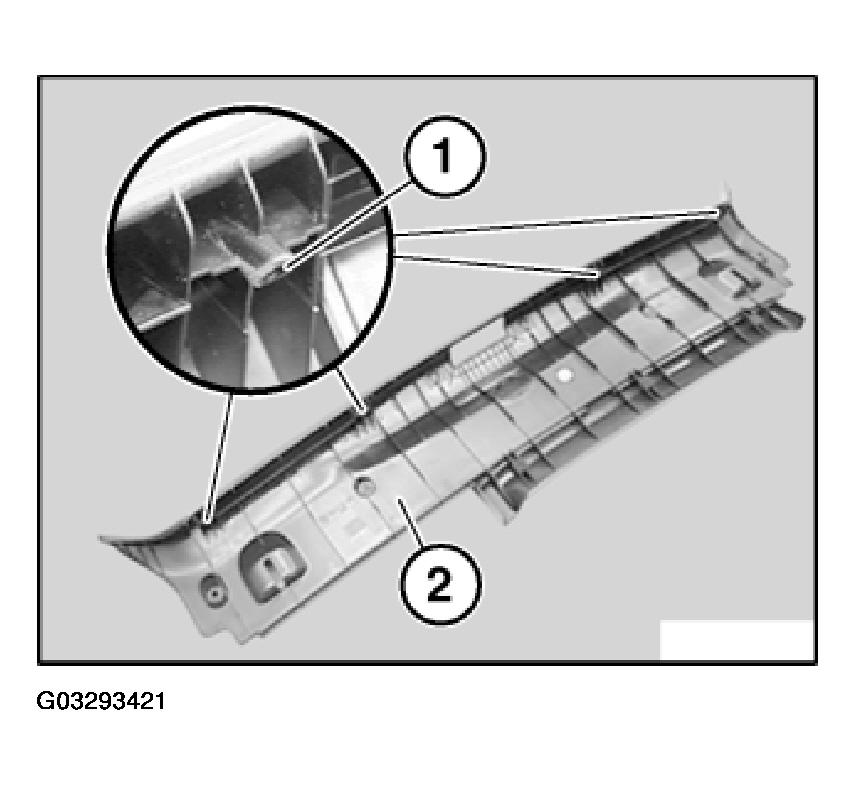

Fig 3: Identifying Guides Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Lever out caps (1) from trim (2).

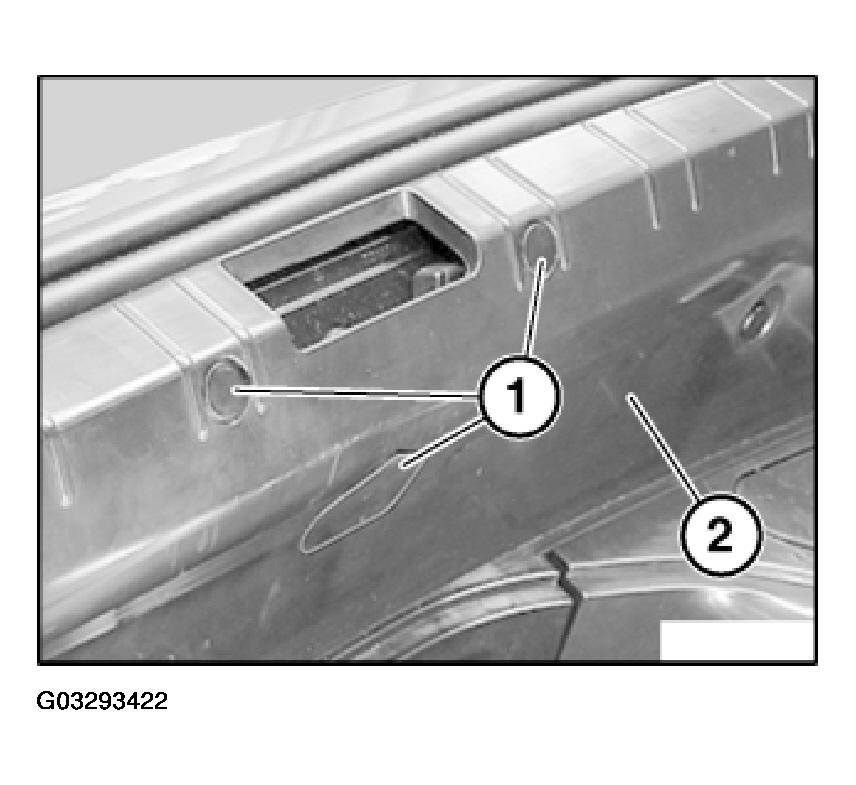

Fig 4: Locating Caps In Trim

Courtesy of BMW OF NORTH AMERICA, INC.
