65 77 710 Removing And Installing (Replacing) Left A-Pillar Sensor

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note airbag safety instructions! Incorrect handling can activate airbag and cause injury. Refer to 72 00 ... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Necessary Preliminary Tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove footwell side trim panel on A-pillar. Refer to 51 43 070 REMOVING AND INSTALLING/REPLACING side trim panel, footwell, on A-pillar, left and/or 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
Place carpet slightly to one side.

Unfasten plug connection (1) and disconnect.

Unscrew bolt (2).

Unscrew nuts (3).

Installation:

Tightening torque, refer to 65 77 4AZ in AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

Make sure sensor is mounted without play.

Remove A-pillar sensor (4).

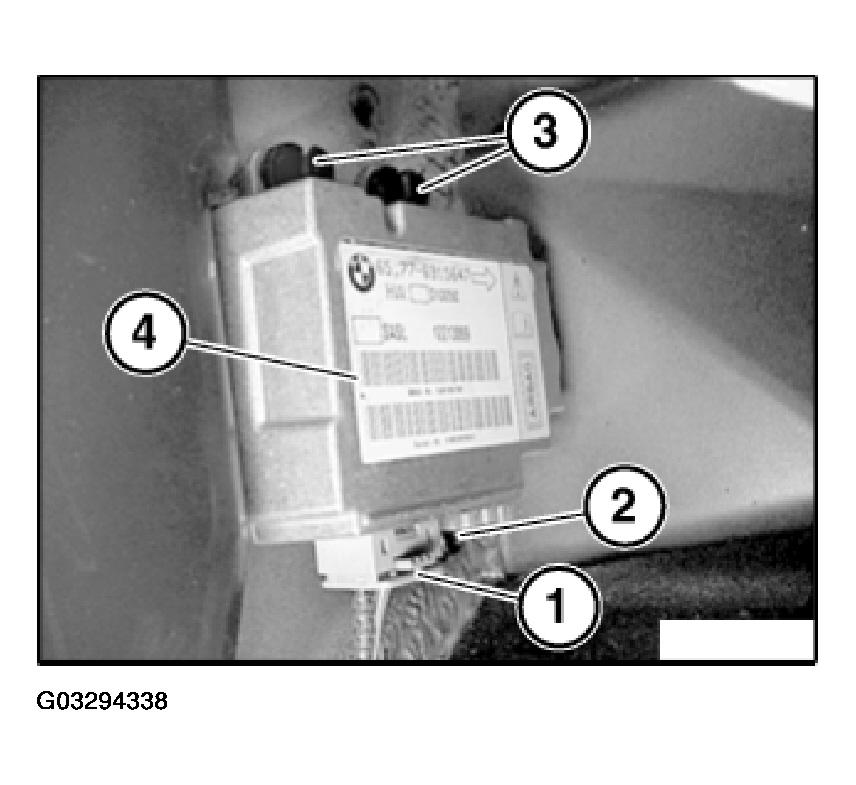

Fig 1: A-Pillar Sensor, Plug Connections, Nuts And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

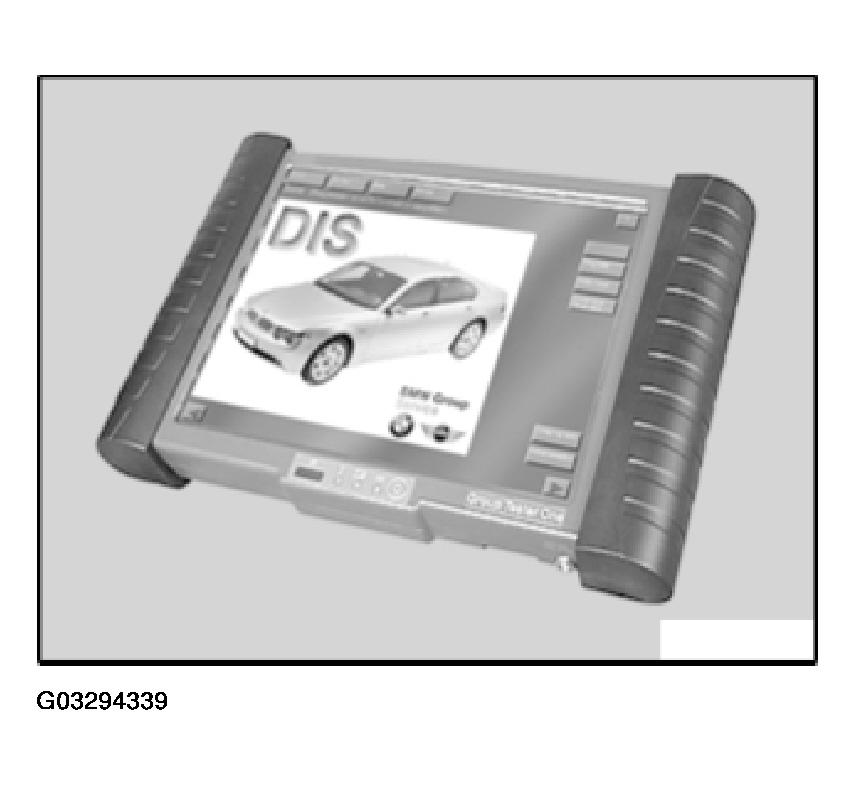

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
