51 43 075 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove entrance cover strip, front (inside) right. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT .
Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Detach mucket (1) in area of side trim (3).

Release clips (2) in direction of arrow.

Pull out side trim panel (3) from carpet.

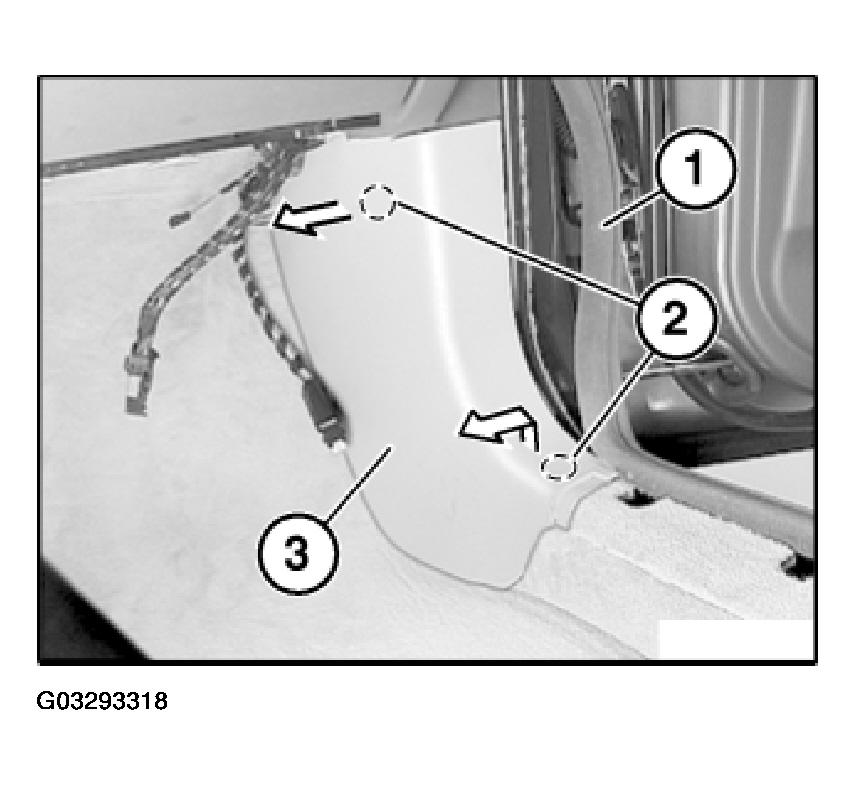

Fig 1: Removing Side Trim Panel From Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of side trim panel (4) must not be damaged or missing:

Clips.
Insulating mat.
Tabs (for inserting in carpet).

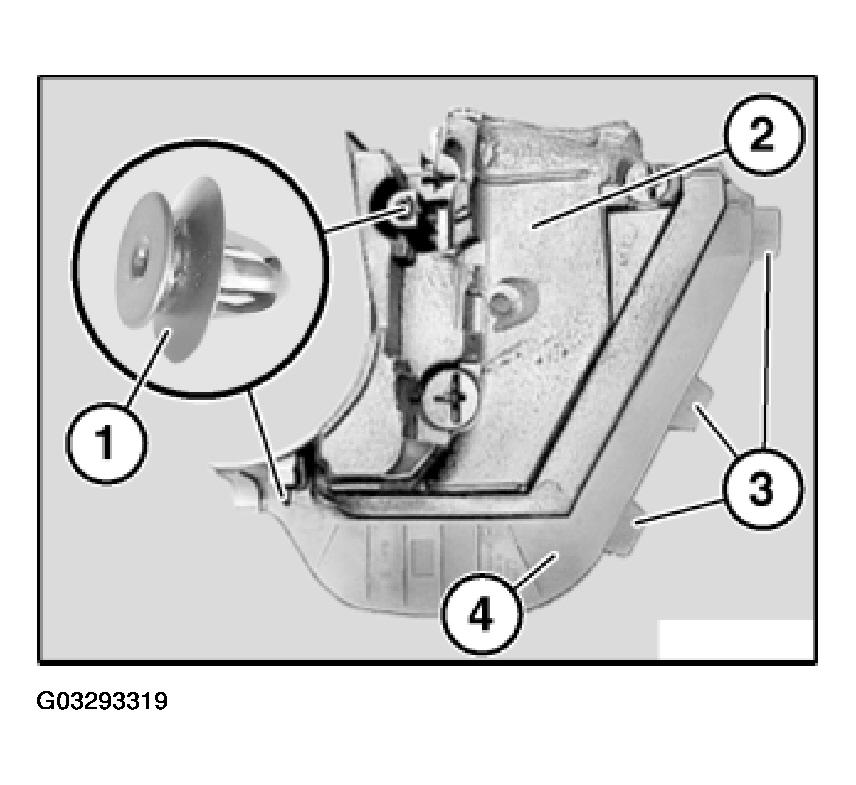

Fig 2: Identifying Side Trim Panel Components
Courtesy of BMW OF NORTH AMERICA, INC.
