51 43 070 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Left

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove entrance cover strip, front (inside) left. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT .

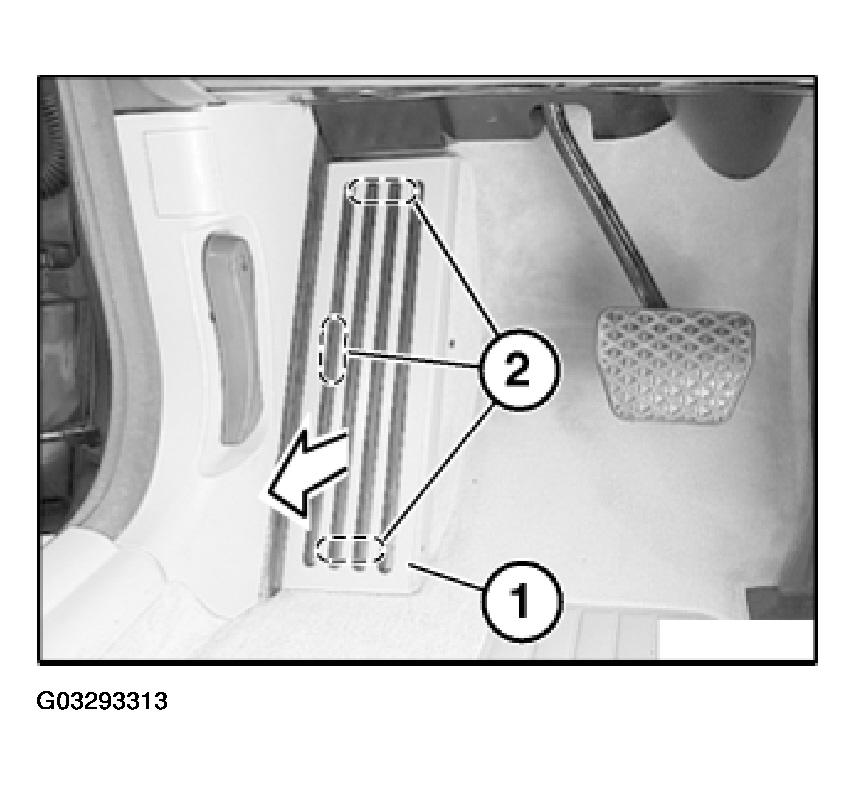

Detach footrest (1) in direction of arrow from Velcro-type fasteners (2) and remove.

Fig 1: Detaching Footrest From Velcro-Type Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

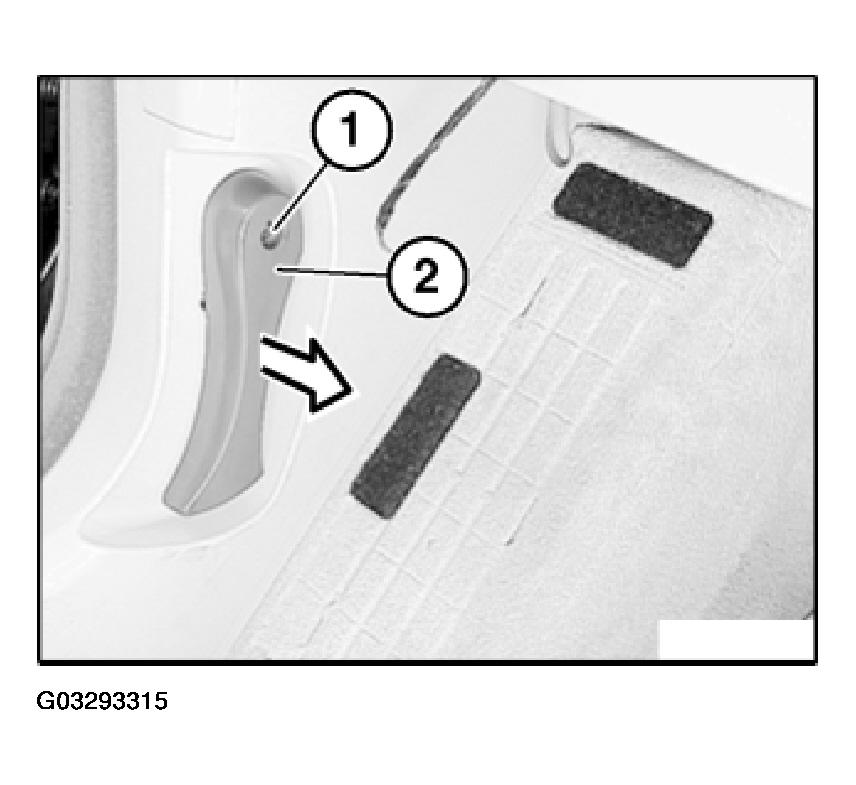

Following parts of footrest (4) must not be damaged:

Velcro-type fasteners.
Guides.
Seal.

Fig 2: Identifying Footrest Components
Courtesy of BMW OF NORTH AMERICA, INC.

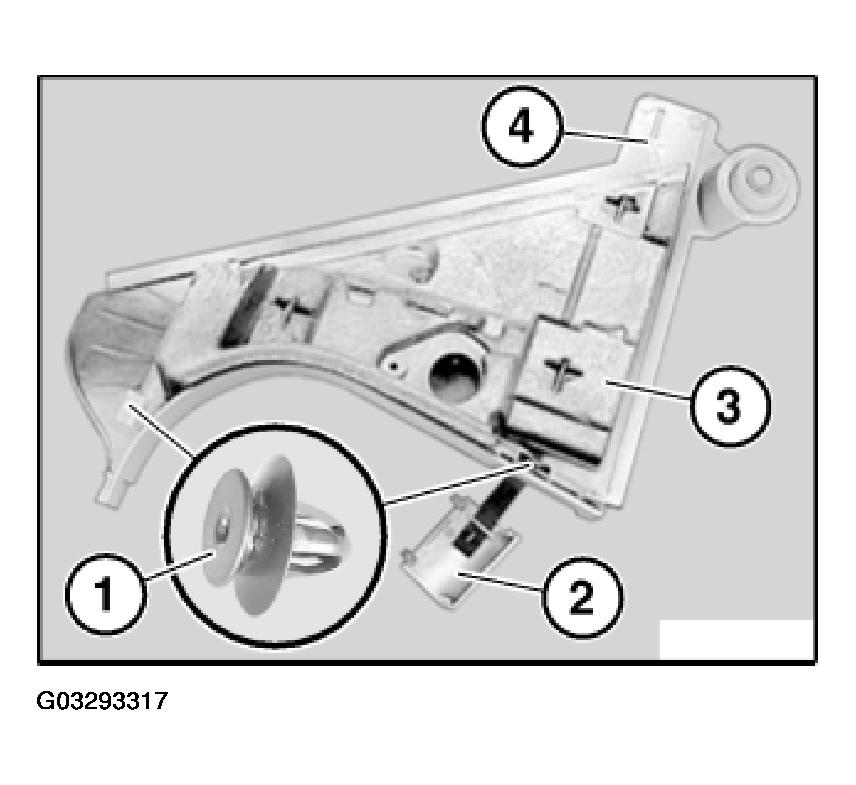

Release screw (1) and remove release lever (2).

Fig 3: Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

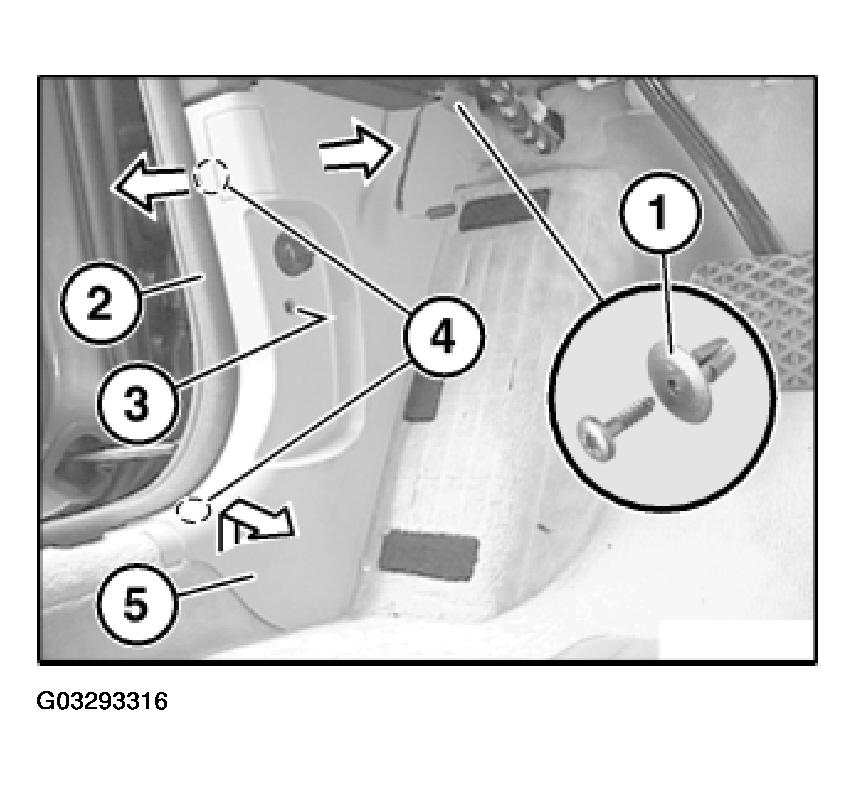

Release screw (1) and remove expansion rivet.

Detach mucket (2) in area of side trim (5).

Release screw (3).

Unclip side trim (5) from clips (4) and remove.

Fig 4: Locating Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

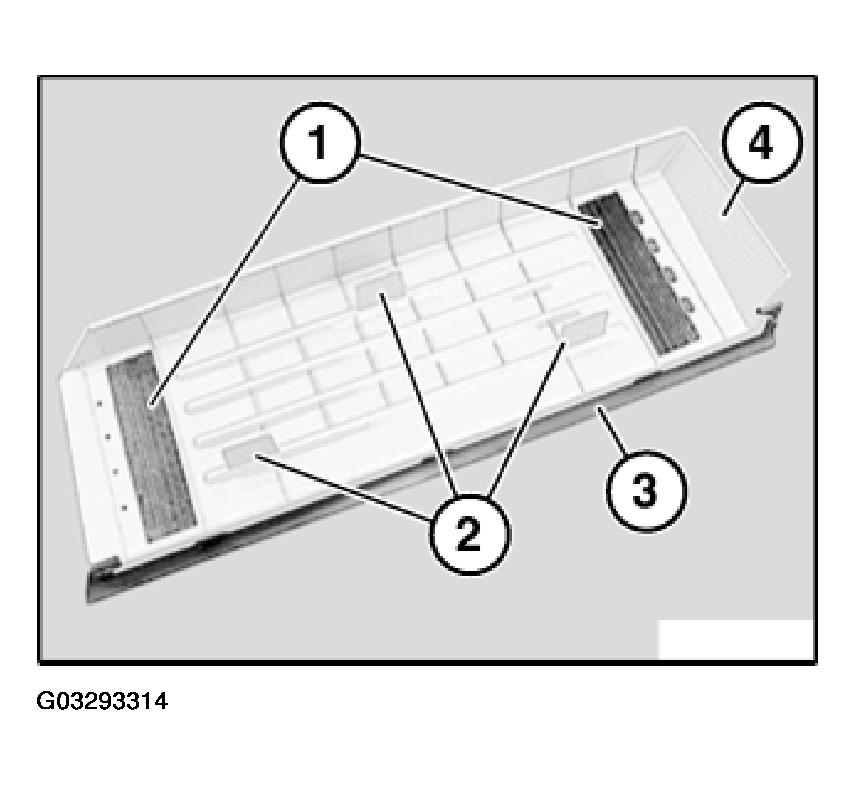

Following parts of side trim panel (4) must not be damaged or missing:

Clips.
Cover cap with retaining strap.
Insulating mat.

Fig 5: Identifying Side Trim Panel Components
Courtesy of BMW OF NORTH AMERICA, INC.
