65 25 050 Removing And Installing/Replacing Antenna Amplifier (Diversity)
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove antenna tuner. Refer to 65 20 200 REMOVING AND INSTALLING (REPLACING) ANTENNA TUNER .
Version with standard seat in rear compartment:
- Remove backrest for left rear seat. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .
Version with comfort seat in rear compartment:
Remove supplementary trim on C-pillar at bottom left. Refer to 51 43 240 REMOVING AND INSTALLING/REPLACING SUPPLEMENTARY TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT .
All models:
- Release trim on C-pillar at bottom left. Refer to 51 43 230 REMOVING AND INSTALLING/REPLACING TRIM ON C-PILLAR AT BOTTOM LEFT OR RIGHT
NOTE:

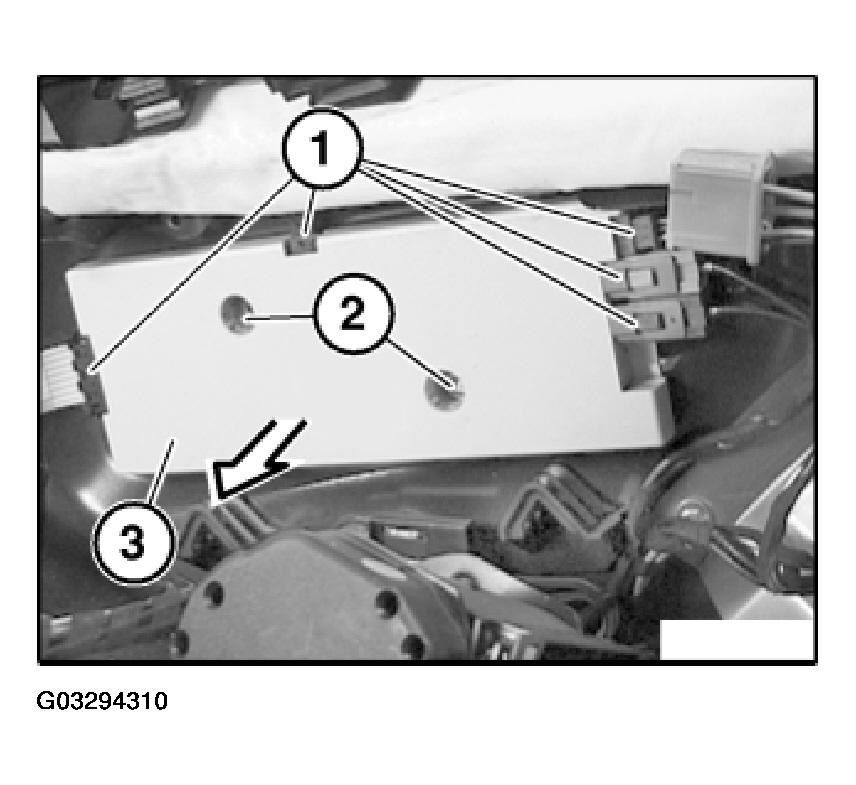

For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed.
Disconnect plug connections (1).
Release screws (2) and remove antenna amplifier (3) in direction of arrow.
