64 11 198 Removing And Installing Rear Air Conditioner (With Cooler Box)

Necessary Preliminary Tasks:

• Draw off refrigerant from A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
• Remove cover (optional extra: cooler box). Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .
• Remove panel for luggage compartment partition. Refer to 51 47 141 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION .

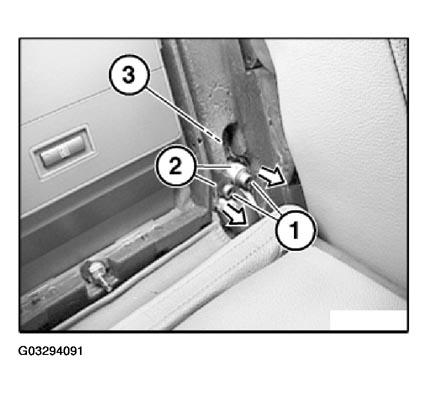

Release screws (1).

Detach refrigerant lines (2) in direction of arrow.

Installation:

Replace sealing rings.

Observe tightening torque, refer to 64 52 1AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Unscrew nut (3).

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

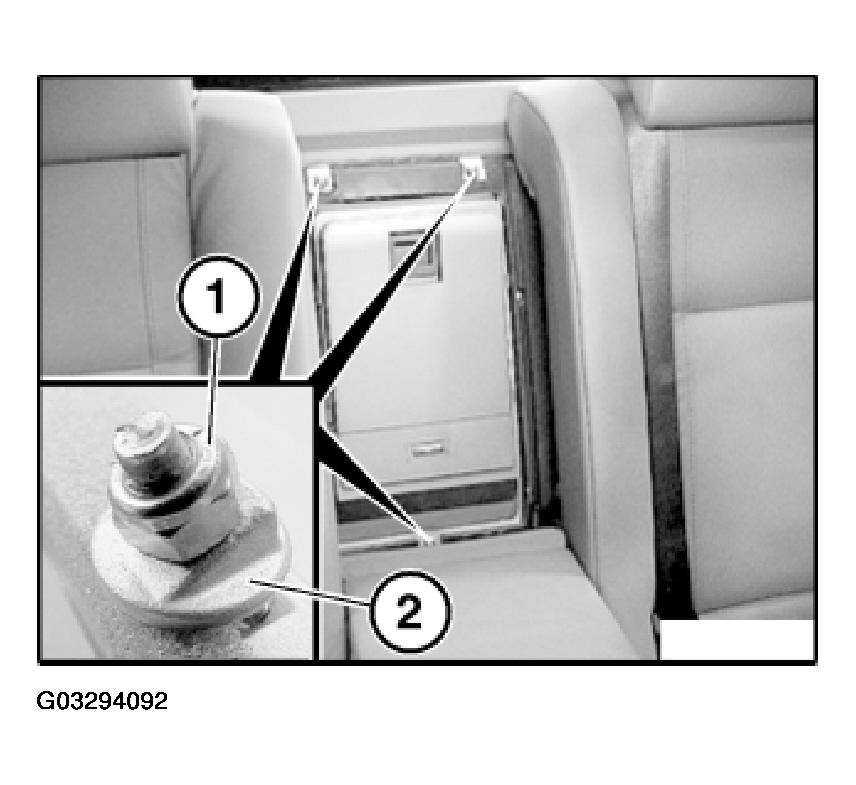

Unscrew nuts (1).

Remove compensating shims (2).

Installation:

Make sure compensating shims (2) are in correct installation position.

Tighten nuts (1) to specified torque: Tightening torque, refer to 64 11 5AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Fig 2: Removing Nut And Compensating Shim

Courtesy of BMW OF NORTH AMERICA, INC.

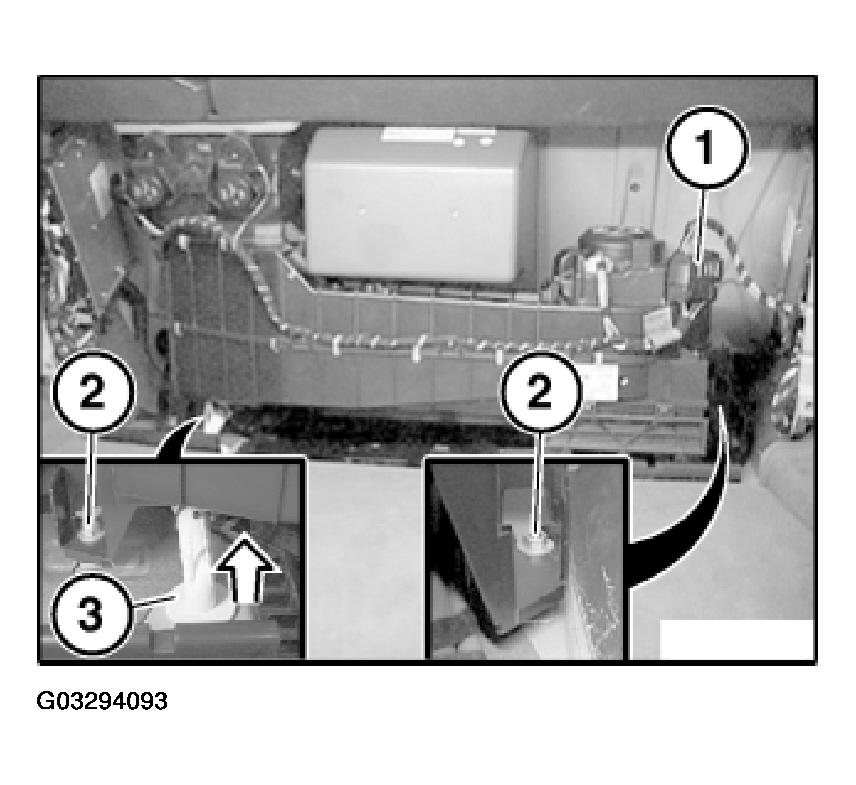

Unfasten plug connection (1) and disconnect.

Release nuts (2) slightly.

Pull out condensate drain (3) in direction of arrow.

Installation:

Make sure condensate drain (3) is correctly seated.

Fig 3: Removing Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

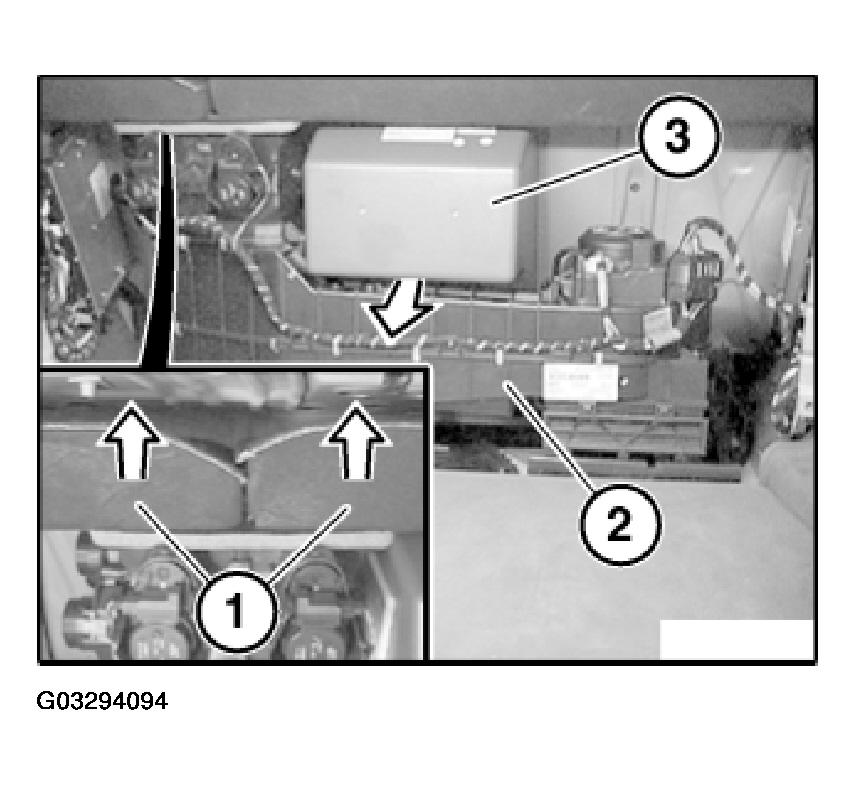

Lift off air ducts (1) and pull out.

Installation:

Make sure air ducts (1) are correctly seated.

Pull out rear air conditioner (2) together with cooler box (3) in direction of arrow.

Fig 4: Locating Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.
