51 47 141 Removing And Installing/Replacing Panel For Luggage Compartment Partition

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Pull out panel (2) in direction of arrow and remove.

Fig 1: Removing Luggage Compartment Partition Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unhook luggage compartment net (1).

Release retainers (2) on reverse side and remove holder for luggage compartment net.

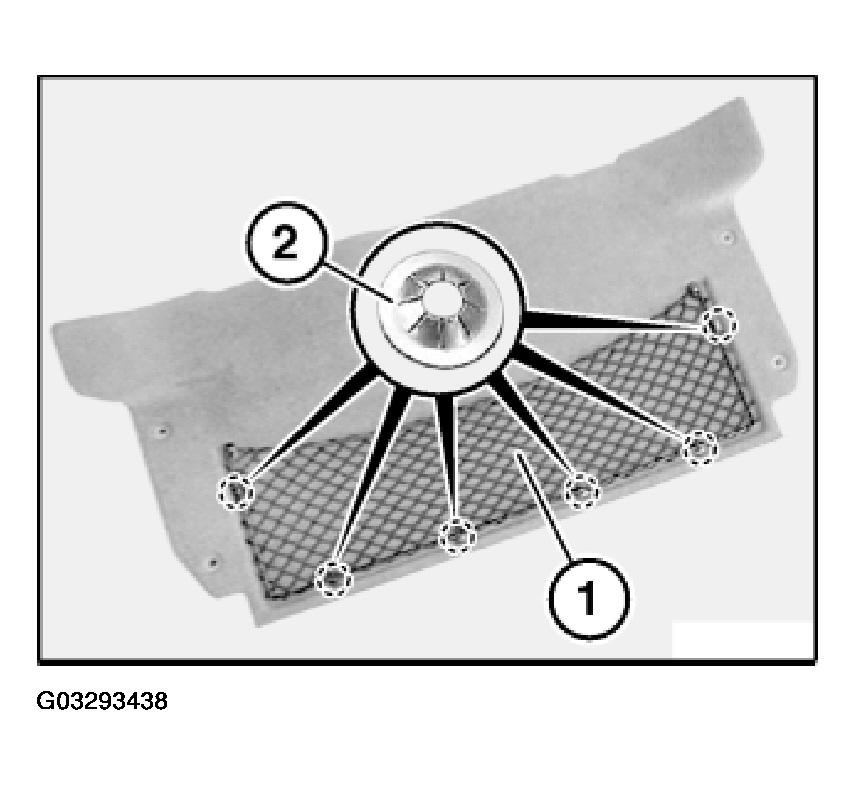

Fig 2: Identifying Luggage Compartment Net Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
