64 12 021 Removing And Installing Complete Independent Heater
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS .
Special Tools Required:
- 13 3 010
Necessary Preliminary Tasks:
- Remove left front wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove wheel arch lining at front left. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER
- Remove left underbody paneling. Refer to 51 47... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELING .
NOTE:
Disconnect water hoses on independent heater.
WARNING:
Danger of scalding! Only perform the following tasks on an engine that has cooled down. Follow instructions for working on cooling system. Refer to 17 00... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM
.
NOTE:

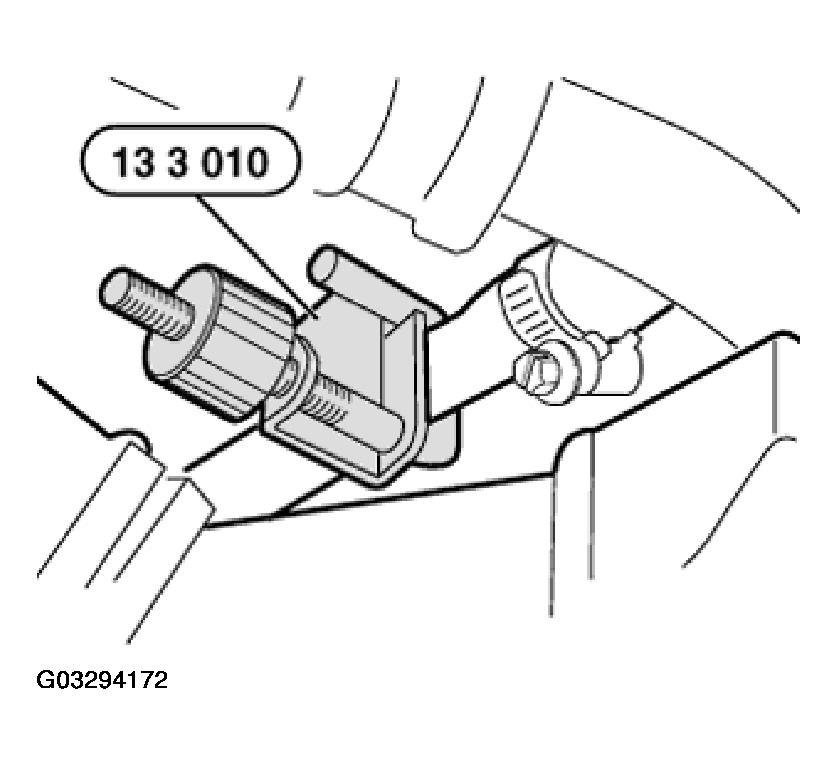

Disconnect fuel line on independent heater with special tool 13 3 010.
Recycling:
Fuel escapes when fuel line is detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

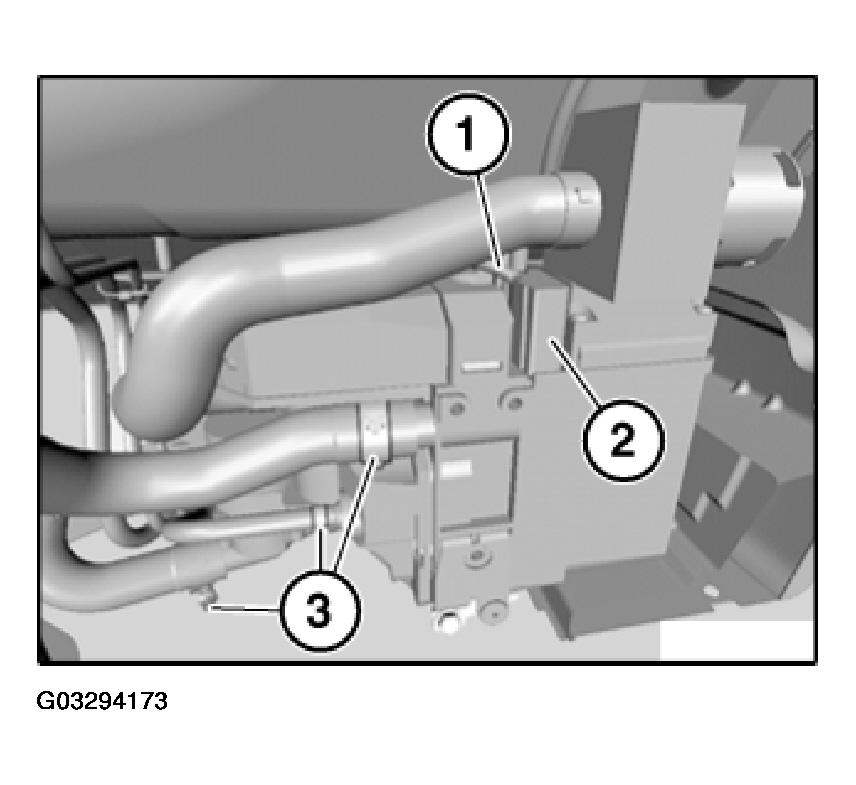

Disconnect plug connections (1) and (2).
CAUTION:
To avoid damaging the independent heater, it is absolutely essential to adhere to the following contacting sequence for the plug connections:
- Plug connection (1).
- Plug connection (2).
Release hose clamps (3).

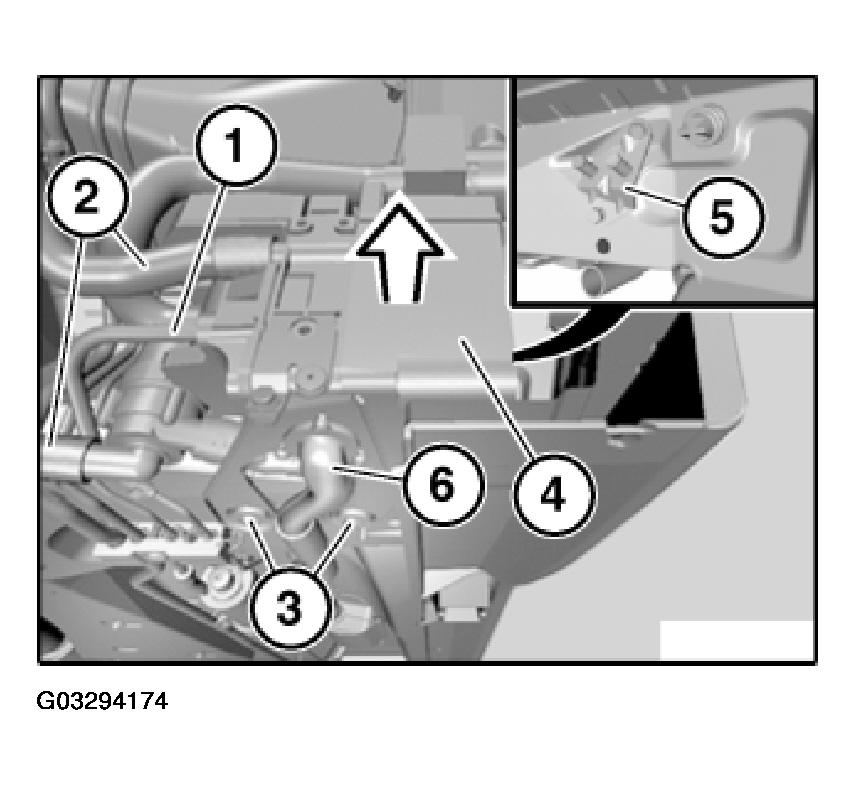

Disconnect fuel line (1).
Disconnect water hoses (2).
Release screws (3).
Detach independent heater (4) in direction of arrow from fixture (5).
Installation:
Make sure exhaust system (6) is correctly seated.
Top up coolant and vent cooling system.
Installation:

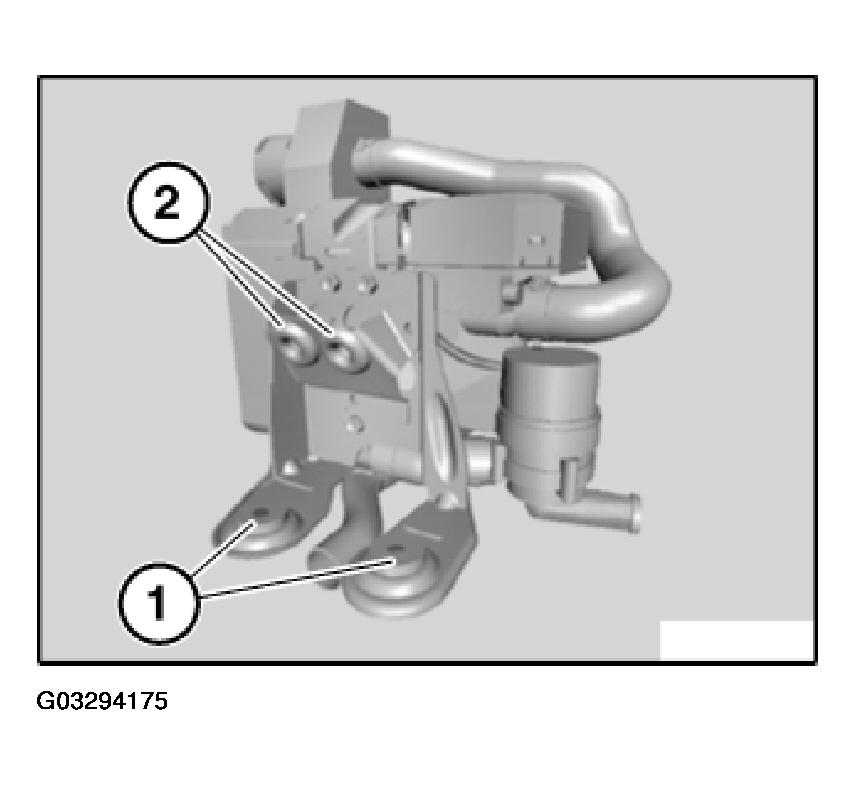

If necessary, replace rubber grommets (1) and grommets (2).
