51 71 040 Removing And Installing/Replacing Front Left Or Right Wheel Arch Cover

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

If necessary, remove left/right front wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

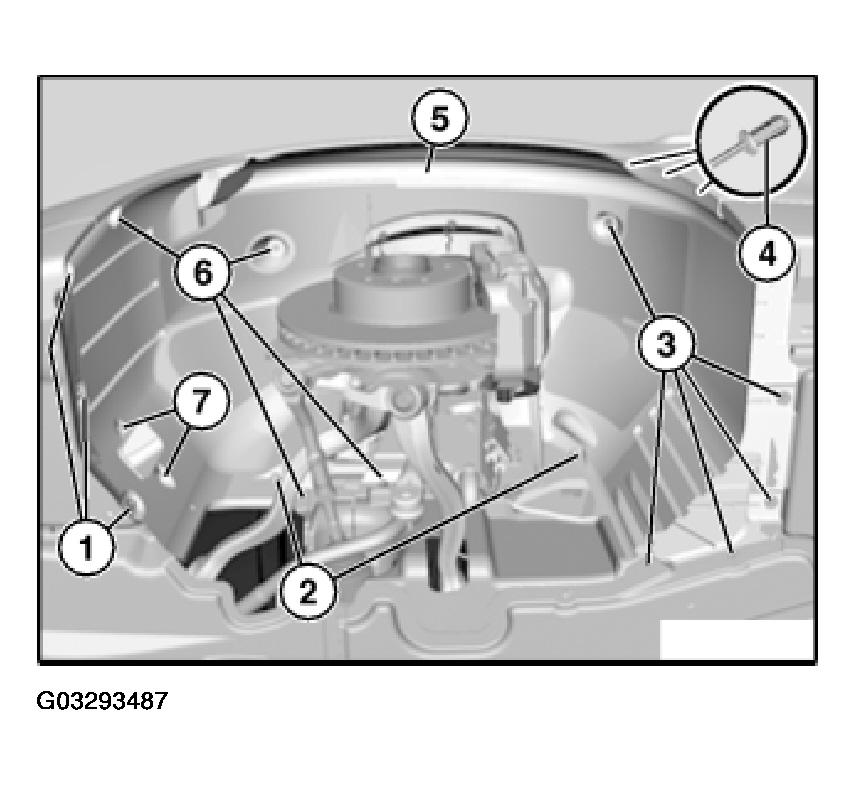

Release screws (1) and (3).

Unscrew nuts (2).

Release screws (6).

If necessary, release screws (7).

If necessary, release expander rivets (4).

Carefully feed out front wheel arch cover (5) towards top.

Installation:

Make sure front wheel arch trim is correctly seated.

Fig 1: Removing Expander Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Right Side Only:

If necessary, remove bottom right wheel arch cover and install in new part. Refer to 51 71... REMOVING AND INSTALLING/REPLACING FRONT BOTTOM RIGHT WHEEL ARCH TRIM .
