51 47... Removing And Installing/Replacing Left Or Right Underbody Paneling

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear left or right underbody paneling. Refer to 51 47... REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT UNDERBODY PANELING .

NOTE: Secure rear underbody paneling (3) against falling out.

Release expansion nuts (1).

Release screws (2).

Remove underbody paneling (4).

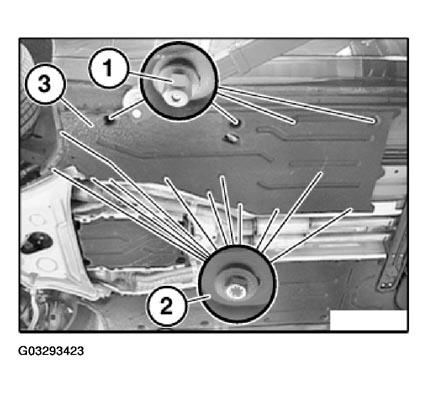

Fig 1: View Of Expansion Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
