63 21 183 Removing And Installing/Replacing Left Or Right Rear Light (From 03/2005) (On Rear Lid)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove rear center trim. Refer to 51 13 400 REMOVING AND INSTALLING/REPLACING REAR CENTER TRIM (FROM 03/2005) .

Detach trim (1) in area (A) of rear light (2) downwards. Area (B) of trim (1) remains on vehicle.

Installation:

Ensure trim (1) is correctly seated.

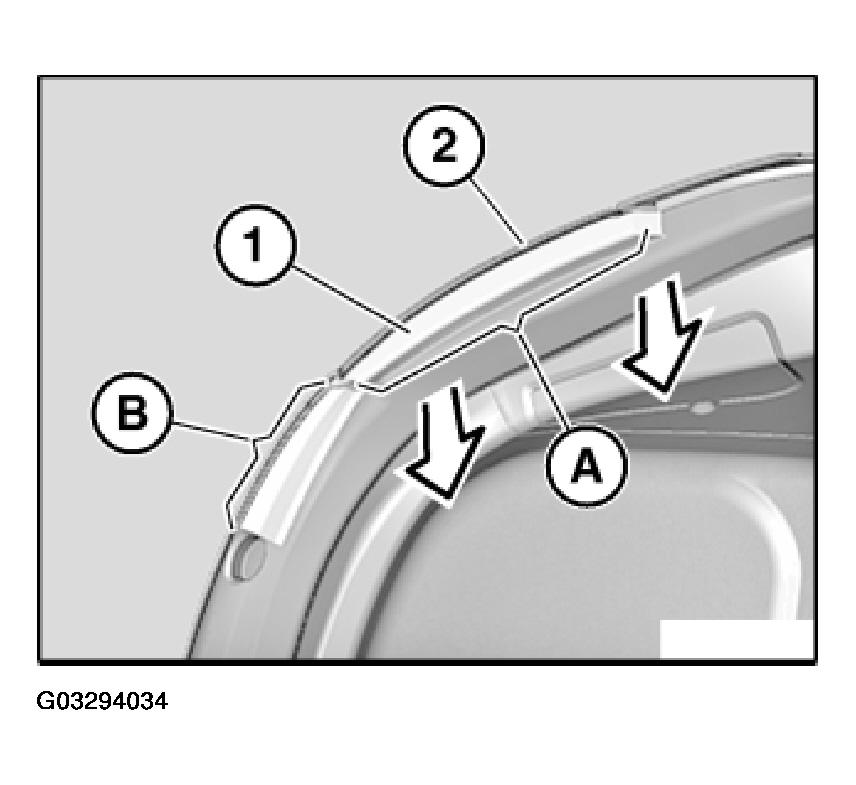

Fig 1: Rear Center Trim, Area A, Area B And Removal Direction

G03294034

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1).

Unscrew nuts (2).

NOTE: Secure rear light against falling out.

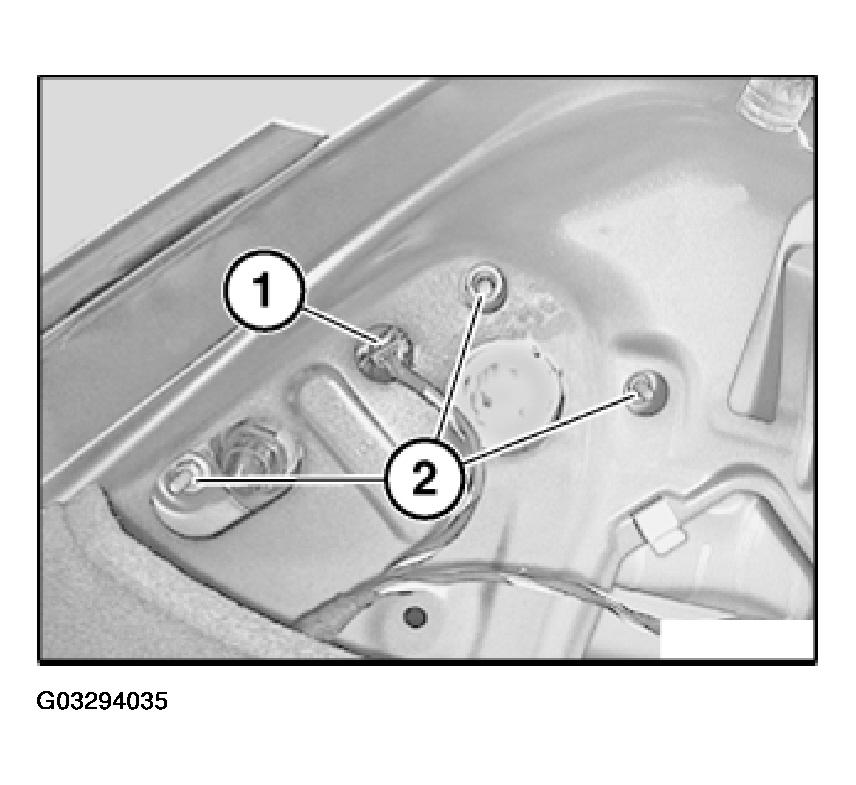

Fig 2: Rear Light Plug Connection And Nuts

G03294035

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rear light (1) and remove.

Installation:

If necessary, replace faulty clip (2).

Make sure there is a uniform gap (outer) all round for rear lid.

Make sure sealing frame for rear light is correctly seated;

replace if necessary.

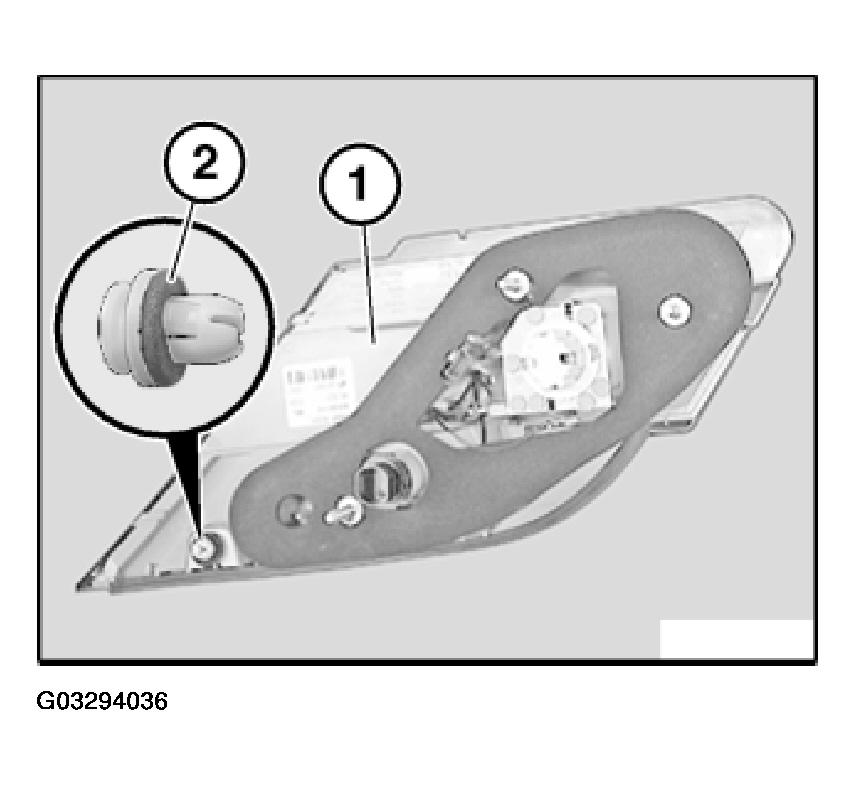

Fig 3: Rear Light And Clips

G03294036

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb. Refer to 63 99 315 REPLACING BULB(S) FOR LEFT OR RIGHT REAR LIGHT (FROM 03/2005) .
