51 13 400 Removing And Installing/Replacing Rear Center Trim (From 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

If necessary, remove license plate.
Remove trim for rear lid at bottom. Refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .

NOTE: Releasing the rear center trim on the inside is described for the left side; proceed in the same way for the right side.

Unscrew nut (1).

Tightening torque, refer to 51 13 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

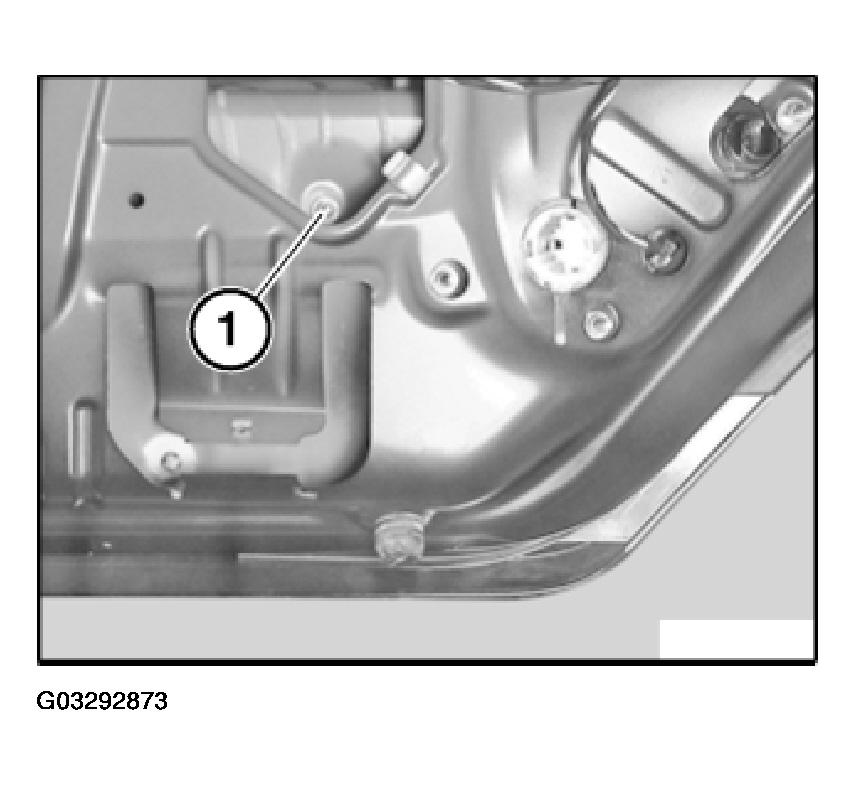

Fig 1: Locating Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Lever out insert nuts (2).

Release rear center trim at catches (3) and remove towards rear.

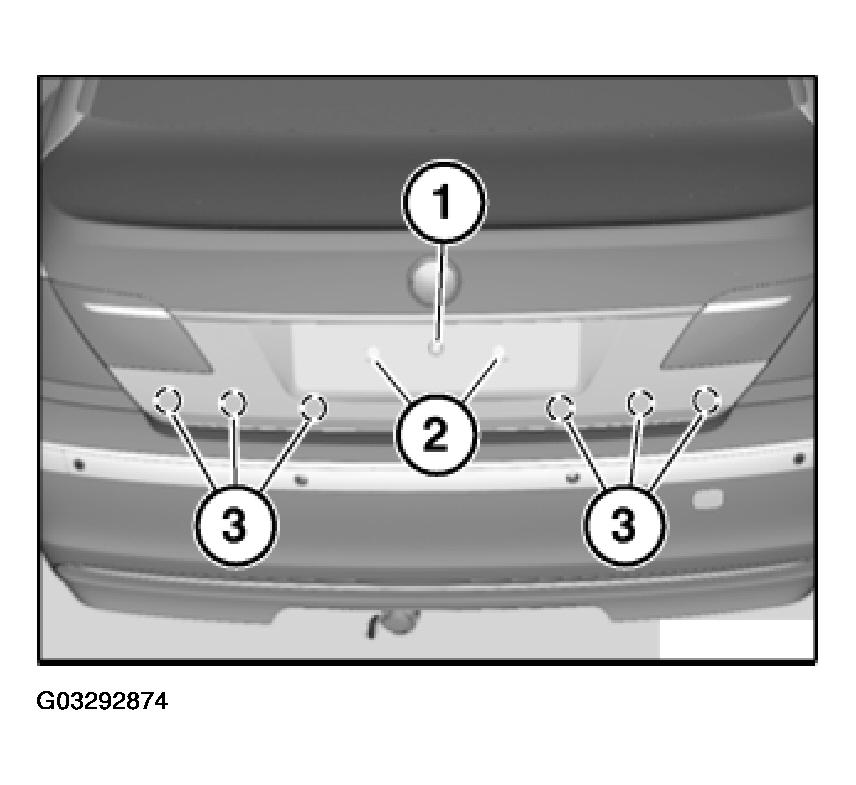

Fig 2: Removing Insert Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

Clips (1).
Screw inserts (2)
Seals (3)

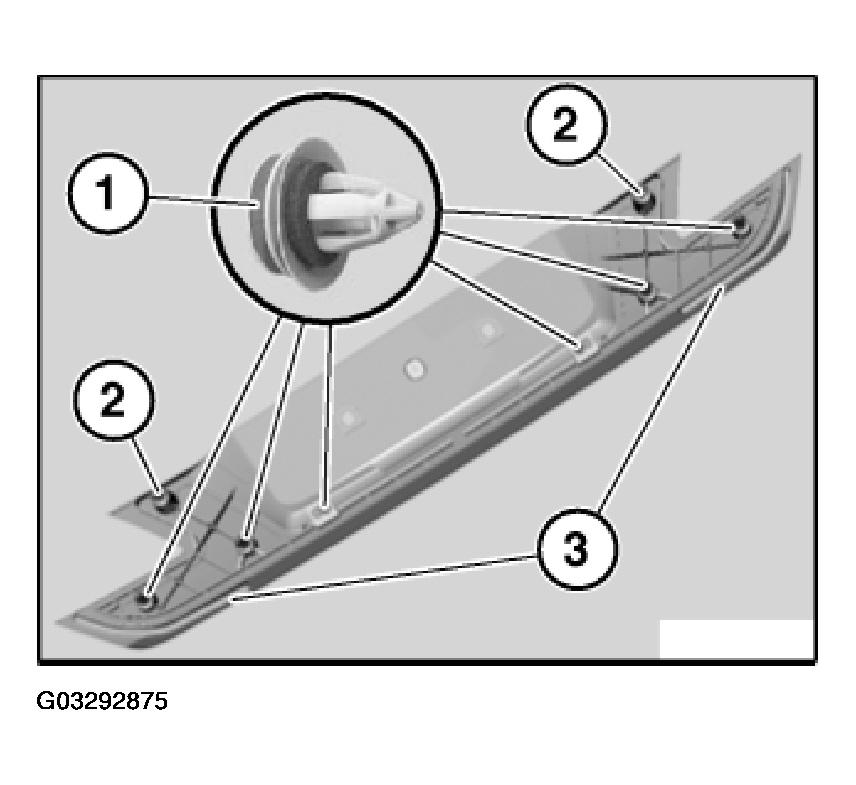

Fig 3: Identifying Clips, Seals And Screw Inserts
Courtesy of BMW OF NORTH AMERICA, INC.
