61 12 187 Replacing Wiring Harness On Function Carrier On Left Or Right Rear Door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

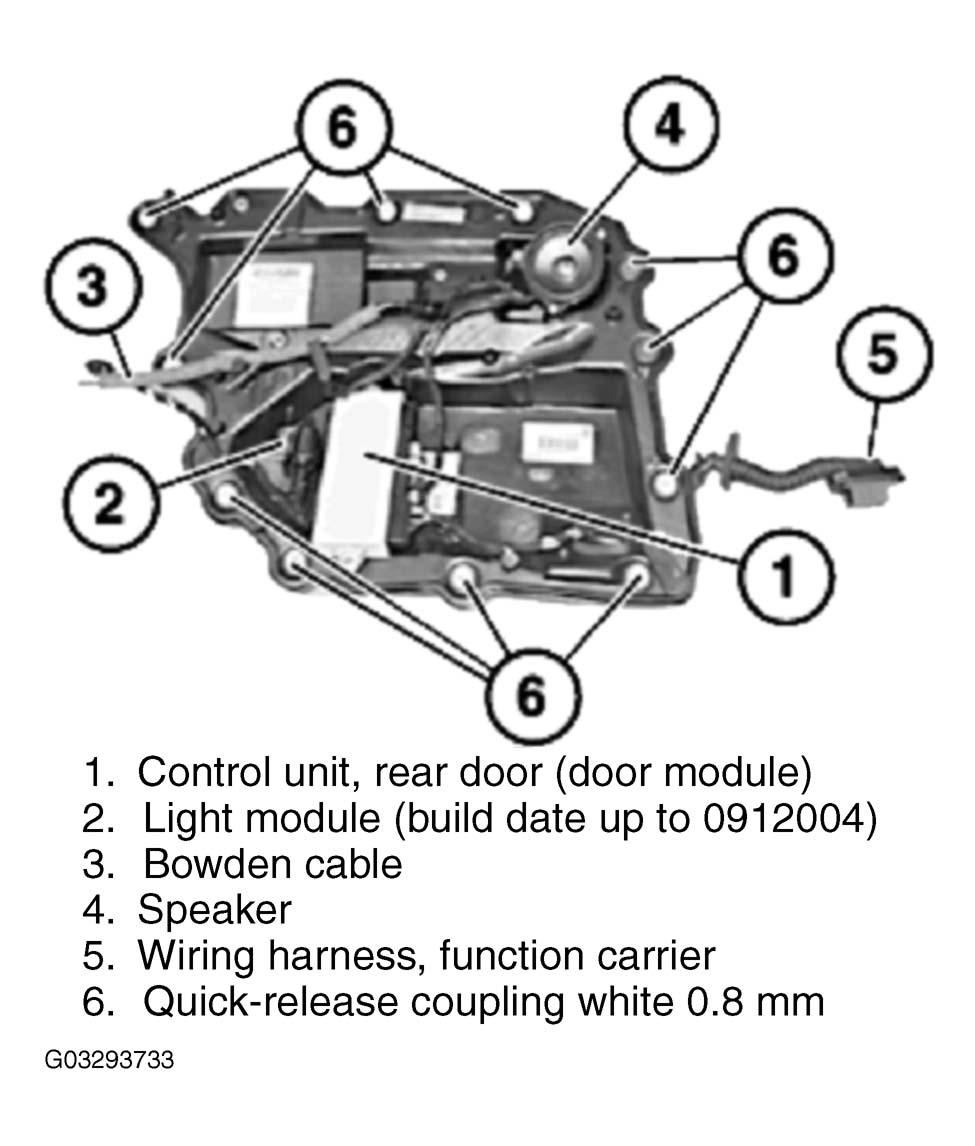

Overview Of Function Carrier Components Without Roller Sun Blind:

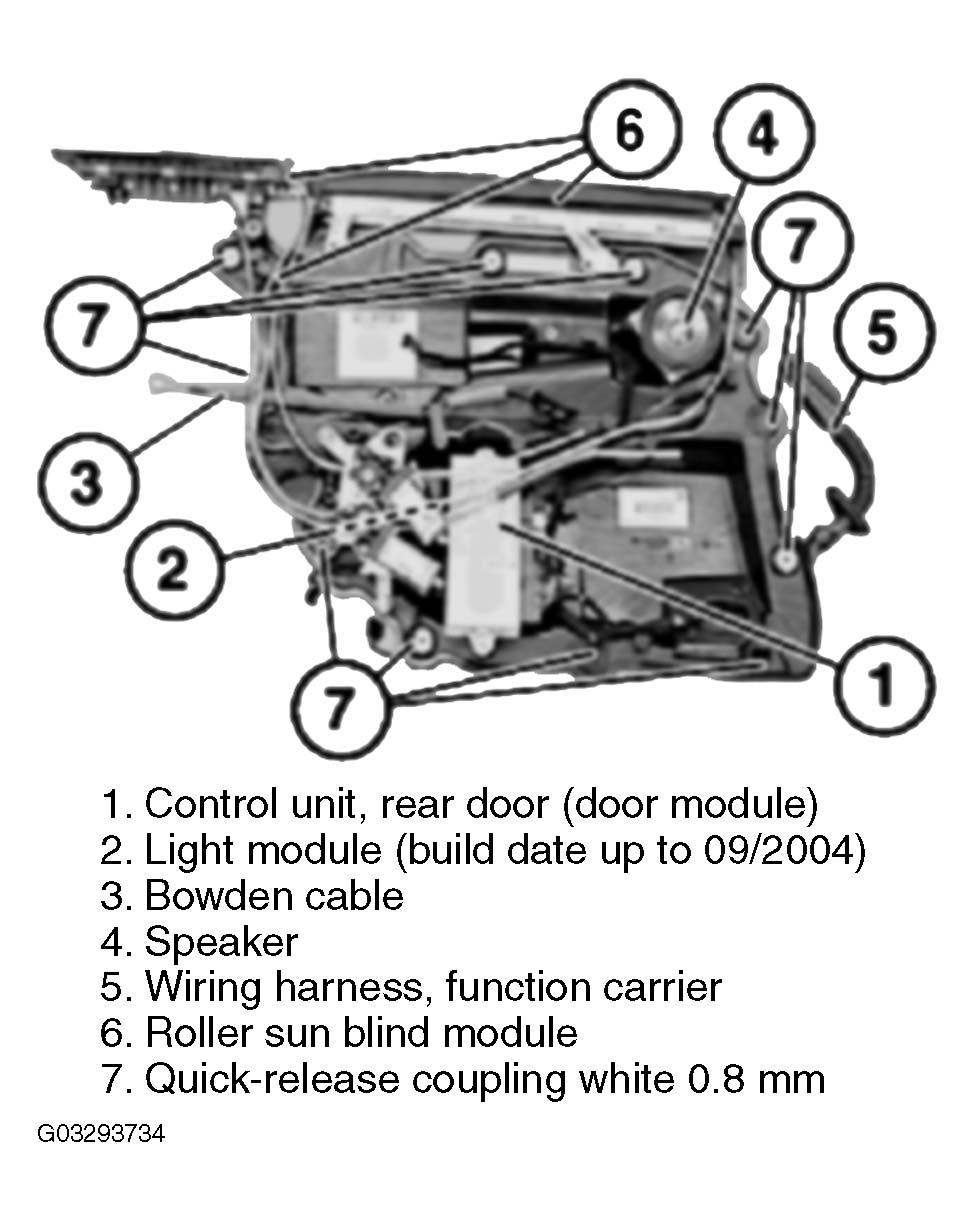

Overview Of Function Carrier Components With Roller Sun Blind:
Necessary Preliminary Tasks:
- Remove function carrier in rear door. Refer to 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR .
- Remove control unit for rear door. Refer to 61 35 224 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR LEFT OR RIGHT REAR DOOR .
- Remove speaker. Refer to 65 13 090 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, DOOR AT REAR) .
With Roller Sun Blind Only:
- Remove roller sun blind module. Refer to 51 16 405 REMOVING AND INSTALLING/REPLACING ROLLER SUN BLIND ON SIDE WINDOW OF LEFT OR RIGHT REAR DOOR .
Build Date Up To 09/2004:
- Disconnect light module plug connection. Refer to 63 99 491 REPLACING LIGHT MODULE FOR REAR LEFT OR RIGHT OUTSIDE DOOR HANDLE LIGHTING (UP TO 09/2004) .
IMPORTANT:
Follow instructions for handling fibre optic cables. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .
Risk of mixing up plugs for door lock and control unit!
Mark relevant plugs of wiring harness to be changed.
Ensure correct plug connections for replacement wiring harness through comparison of plugs (wire cross-sections, pin assignment).

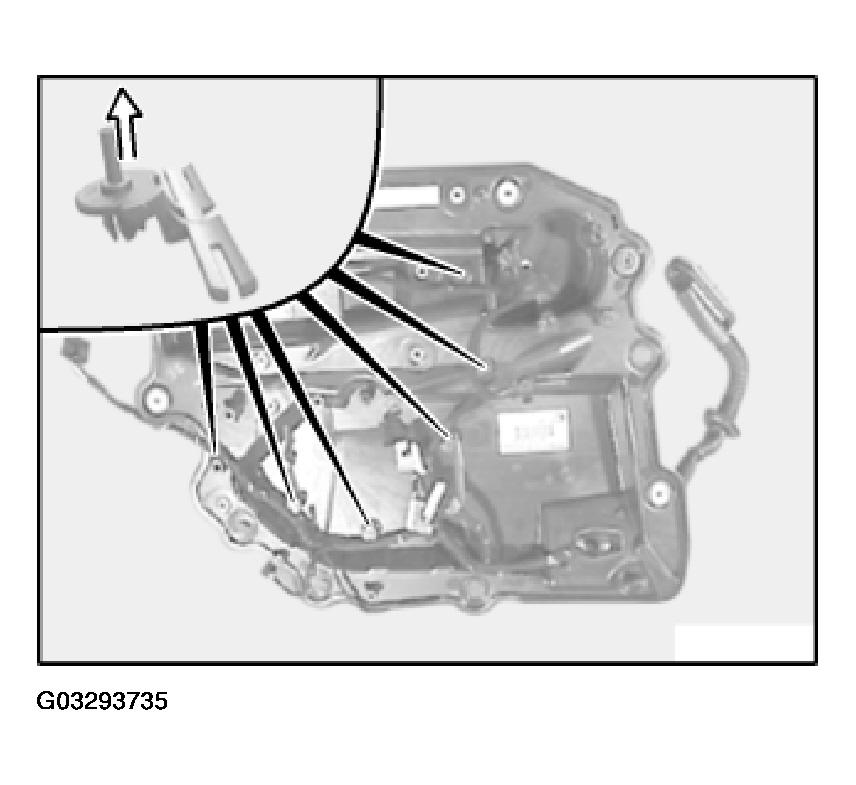

Unclip wiring harness.

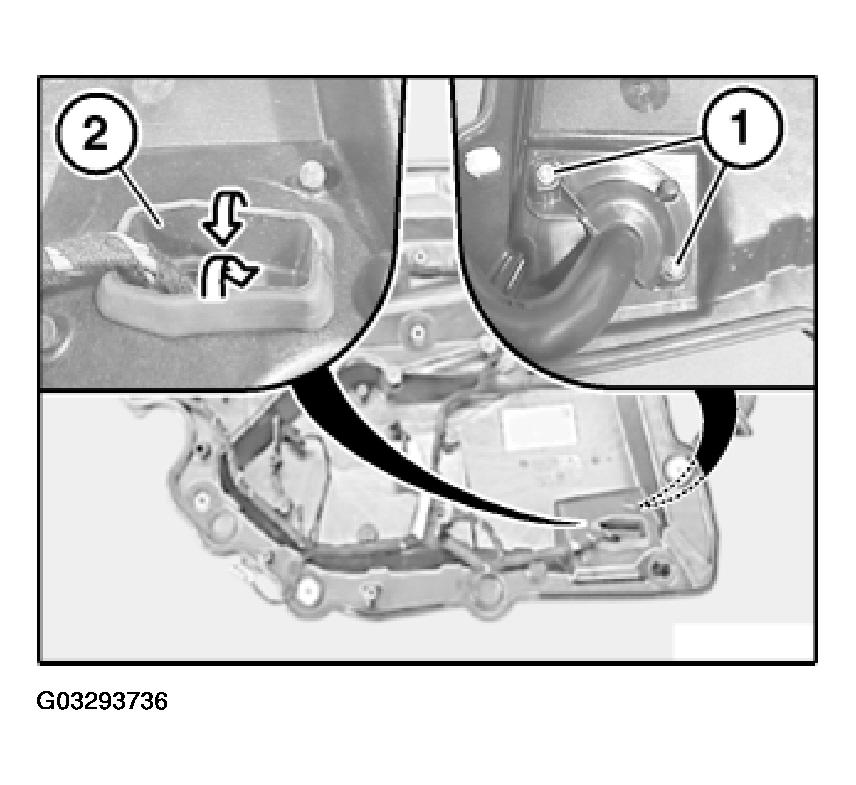

Release screws (1).
Feed out rubber grommet (2) with wiring harness.
